élite series - EF10P

10-inch / 3-inch - 600 watts

The next generation of élite series speakers are here.

2 Year Unconditional, No-Fault Warranty (Yorkville will repair or replace it - even if YOU BREAK IT!). 10 Years Warranty on the Wooden Enclosure

600 watts - powered - 1/10" &  3” HF driver on 60°x 40° horn – Dedicated FOH Cabinet
w/flying Hardware, built in mixer, and iOS and Android APP for remote control of DSP settings

Features

• High Output, High Quality and extremely durable

• Dedicated Front of House box

• Completely Redesigned Next Generation Elite Cabinet

• ABS Coated Birch Plywood Cabinet Construction

• Multiband DSP Limiting with 4 Preset Performance Modes

• 3-inch Titanium Diaphragm Compression Drivers for Reduced Distortion at High SPL

• 10-inch Long Excursion Cast Frame Neodymium Woofer with 3-inch Voicecoil

• iOS and Android App for Added Cabinet Control (Coming Soon)

• Made in Canada


Specifications

• System Type: 2-Way

• Active or Passive: Active

• Program Power (Watts): 600 Watts (1200 Watts Peak)

• Max SPL (dB): 129dB Peak (123dB Continuous)

• Frequency Response (Hz +/- 3dB): 48 - 20k (Hz +/- 3dB)

• Crossover Frequency (Hz): 1400

• Driver Configuration: LF - 10-inch, HF - 1.5-inch Diaphragm

• HF Driver(s): 1.5 Inch Voicecoil (Titanium Diaphragm)

• HF Dispersion (°H x °V): 90x30

• LF Driver(s): 10-inch neo magnet w/2.5-inch Voice coil

• HF Power Amplifier (Watts): 100

• HF Amplifier Type 2-Tier High Headroom

• LF Power Amplifier (Watts): 500

• LF Amplifier Type: Class-D

• Power Cable: 25 ft (7.6m) Heavy Gauge Detachable IEC

• In / Out Connection: 1 x XLR & 1/4-inch Combi-jack, 1/8" Line Inputs

• 1 x XLR microphone Input

• 1 x XLR & 1/4-inch Combi-jack Main Input

• 1 x XLR-M Thruput

• Input Impedance Bal/UnBal): 95KOhms / 90kOhms

• Input Sensitivity (Vrms Sine) : +4dBv / 1.23V

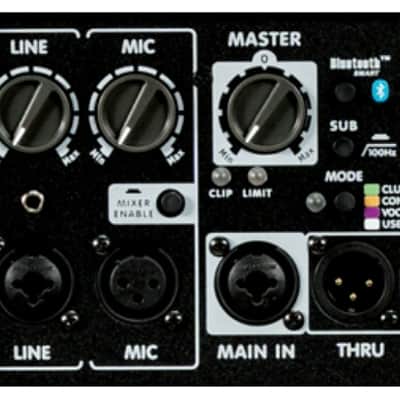

• Controls Mixer Enable

• Mic Input w/level

• Line Input w/level

• DSP Mode (Club, Concert, Vocal, Custom)

• Sub: (100Hz HP Filter)

• Bluetooth Control Enable

• Master Level

• Bar Handles: 1 x Side / 1 x Top

• Flypoints: 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)

• Pole Mount Adapter (1 3/8"-3.5cm): 1 Bottom (1 3/8-inch / 3.5cm)

• Enclosure Materials: ABS Coated Baltic Birch Plywood

• Dimensions (DWH xbackW, inches): 13 x 13.7 x 20 x (Back Width) 11.1

• Dimensions (DWH xbackW, cm): 33 x 34.8 x 50.8 x (Back Width) 28.2

• Weight: (lbs/kg) 43 / 19.5


Specifications subject to change without notice
