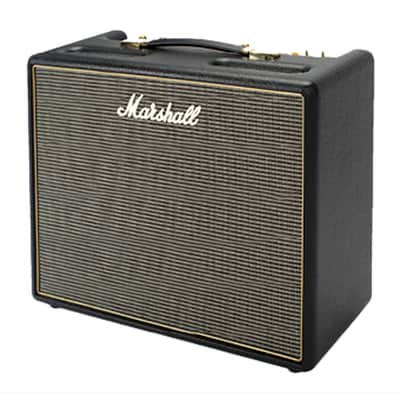

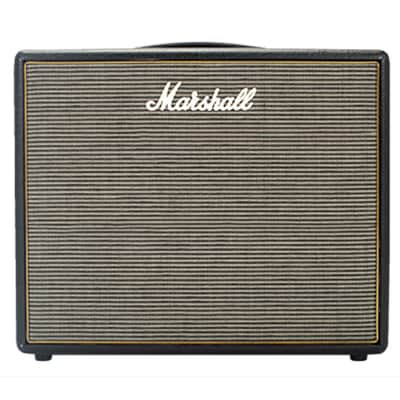

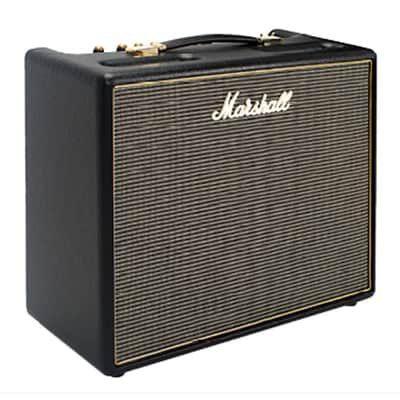

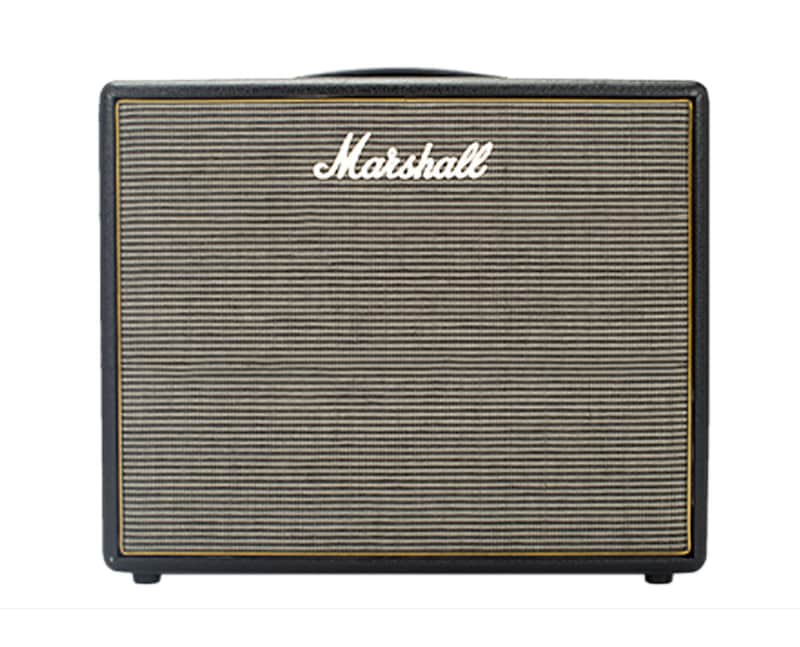

This 20w combo is designed for those that like expression through innovation. Using a Celestion V type speaker the Origin20C provides a classic all-valve Marshall tone.  A 2-way footswitch allows you to control the gain boost and turn the FX loop on and off. With classic styling and modern features this amp generates rich, harmonic tones so that you can craft a sound to suit your personality.

Add A Little Boost

Using the footswitchable gain boost feature you can add that extra level of gain to generate a more overdriven tone.

Tilt Your Sound

It may only have one channel but don’t underestimate it. By using the tilt control you can vary your sound from normal to high treble.

You Have The Power

Our new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes to suit your environment, from playing small venues to playing in your bedroom.

Control Your Tone

Using the presence control you can increase the high frequency and increasing the master volume can give you that classic overdrive sound.

Features

General

• Model : Origin20C
• Range : Origin
• Technology : Valve
• Channels : 1

Electronics

• Output wattage : 20w
• Outputs : Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
• Inputs : 1 x 1/4" jack instrument input, footswitch
• Controls : Gain, boost, tilt, bass, middle, treble, master, presence, power scaling
• Effects : None
• Effects loop : Yes, Send/Return

Speakers

• Speaker configuration : 1x10"
• Speaker model : Celestion V type (16Ω, 30W)
• Unit impedance : 16Ω

Valves

• Pre amp valves : 3 x ECC83
• Power amp valves : 2 x EL34

Accessories

• Footswitch : PEDL-90016 included
• Cable : Detachable power cable

Dimensions

• Width (mm) : 520
• Height (mm) : 420
• Depth (mm) : 240
