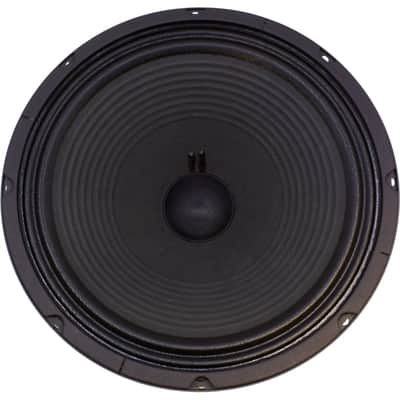

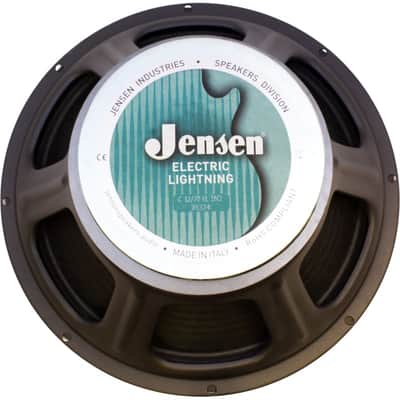

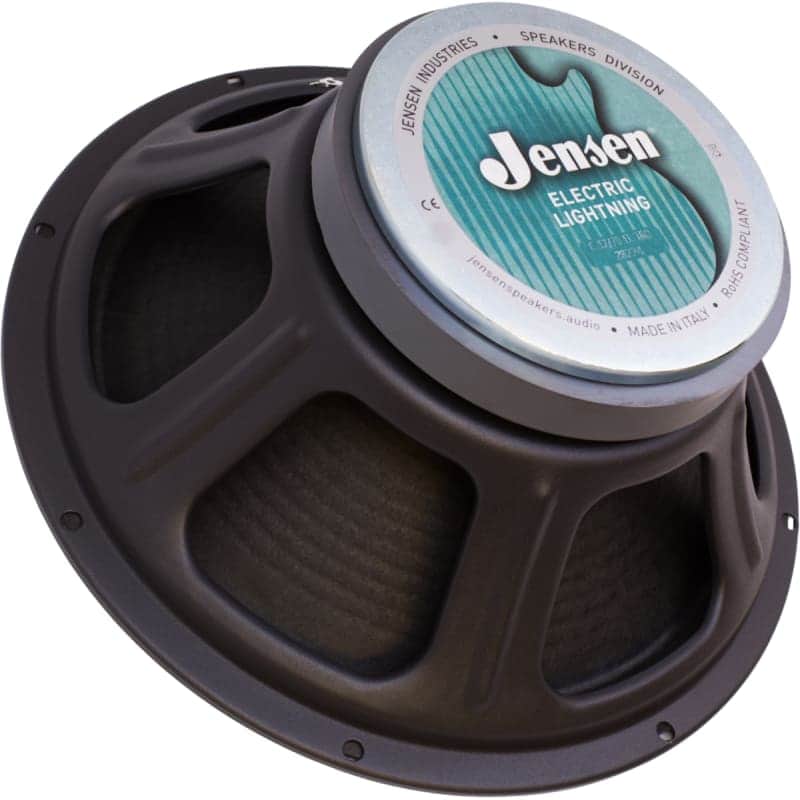

Speaker - Jensen® Jets, 12", Electric Lightning, 70W, Impedance: 16 Ω

A modern, authoritatively voiced speaker, the Electric Lighting exhibits punchy, fast basses and crystal-clear highs, with a slightly throaty midrange. It covers well the ‘super cleans’ and ‘super overdrive’ tones typical of the most contemporary pop and rock music, up to the most extreme hi-gain, detuned or baritone applications.

Guitarist Description: Straightforward, powerful tone with fat lows, throaty mids and crisp, bright highs. It responds to overdrive distortion with a commandingly strong and well-defined crunch.

• Lows: Fat
• Mids: Aggressive
• Highs: Bright
• Overdrive: Crunchy

Product Measurements

Diameter: 12 in.
Voice Coil Diameter: 2 in.
Depth: 5.2362 in.
Outer Diameter: 12.0866 in.
Inner Diameter: 10.9055 in.
Mounting Hole Bolt Circle Diameter: 11.5551 in.
Magnet Assembly Diameter: 6.1023 in.
Magnet Assembly Depth: 1.3779 in.
Mounting Hole Diameter: 0.2559 in.
Nominal Overall Diameter: 307.00 mm
Nominal Voice Coil Diameter: 50.00 mm
Flux Density: 1.15 T
Voice Coil Winding Depth: 10.00 mm
Magnetic Gap Depth: 8.00 mm
Magnet Type: Ferrite
Voice Coil Winding Type: Aluminum
Voice Coil Former: Kapton
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Surround Treatment: Yes
Voice Coil DC Resistance (Re): 11.94 Ω
Resonance Frequency (ƒS): 93.00 Hz
Mechanical Q Factor (QMS): 14.50
Total Q Factor (QTS): 0.88
Mechanical Moving Mass (MMS): 28.30 g
Mechanical Compliance (CMS): 103.00 µm/N
Force Factor (BxL): 14.56 Wb/m
Equivalent Acoustic Volume (VAS): 35.30 liters
Linear Displacement, maximum (XMAX): 1.00 mm
Reference Efficiency (nO): 2.92 %
Diaphragm Area (SD): 490.90 cm2
Losses Electrical Resistance (RES): 185.70 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.80 mH
Rated Power: 70.00 W
Musical Power: 140.00 W
Sensitivity @ 1W, 1m: 98.10 dB
