Arsenal Audio by API DUAL CHANNEL EQ MODEL EQ-R24 2008

ARSENAL AUDIO by API DUAL CHANNEL EQ MODEL EQ-R24

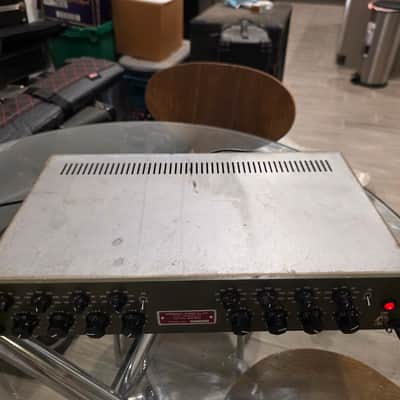

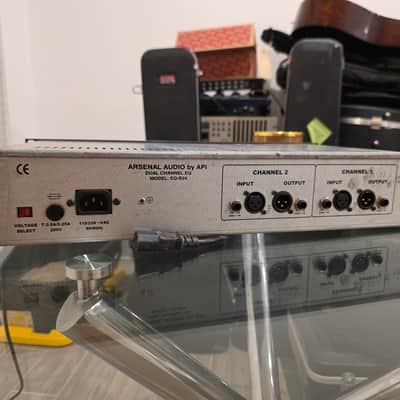

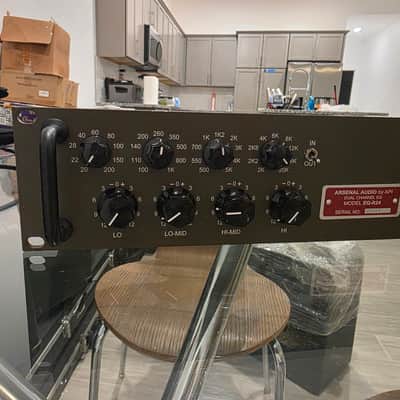

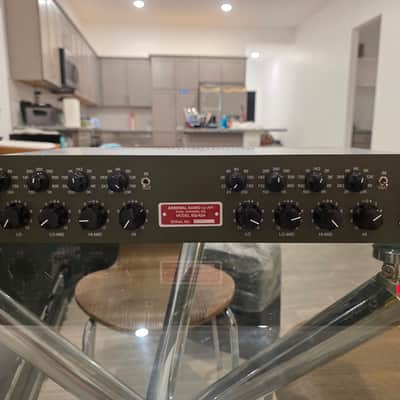

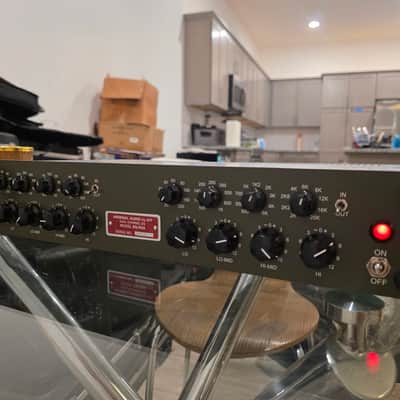

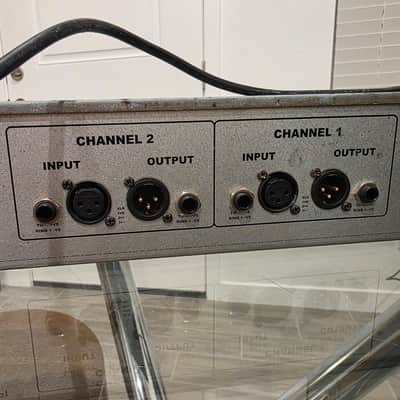

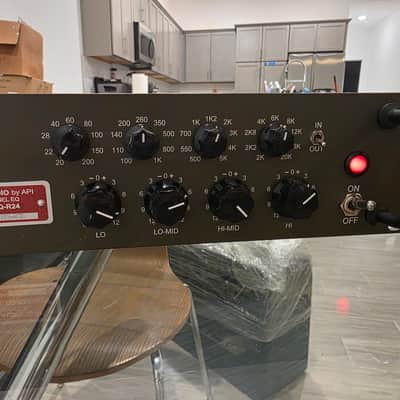

This unit works great and is fully functional from a home smoke free studio and barely used. The JDK Audio R24 Dual Channel, 4-band equalizer, features two identical channels of equalization in a rack mounted unit with internal power supply. The eq features continuously variable adjustment of frequency and gain using individual controls. Features: 4 bands of equalization modeled after the classic APSI model 562 EQ Each band offers continuously variable control of frequency and gain, using separate knobs 12 dB of boost/cut per band All 4 bands are peak/dipping parametric configuration Custom transformer balanced output Fully balanced 1/4" and XLR input and output High headroom +24 dB clip level The EQ-R24 offers two channels of professional signal equalization. Modeled after the circuitry of classic high end EQ's, the R24 delivers an affordable combination of rugged construction and solid performance. EQ in and out are controlled by classic toggle switches, with gain and frequency selection accessed using individual control knobs. Inputs: Balanced XLR and 1/4" parallel jacks Outputs: Transformer Balanced XLR and 1/4" parallel jacks (All measurements with 600 Ohm output load) Bandwidth: +/- 0.5db, 20Hz - 20kHz THD+N @ 1kHz, +4dbu: 0.01% Maximum Level: +23dbu Signal-to-Noise Ratio: -100db EQ Bands: 4 bands, all +/-12db Peak/Dip type Lo: 20Hz - 200Hz Lo-Mid: 100Hz - 1kHz Hi-Mid: 500Hz - 5kHz Hi: 2kHz - 20kHz Current: 65mA, 7.3VoltAmps Dimensions: 2U EIA 19" Rack Height: 3.5 Inches Width: 19 Inches Depth: 10 Inches Weight: 13 lbs Input Impedance: 12K Ohms Output Impedance: 300 Ohms Transformer Balanced
