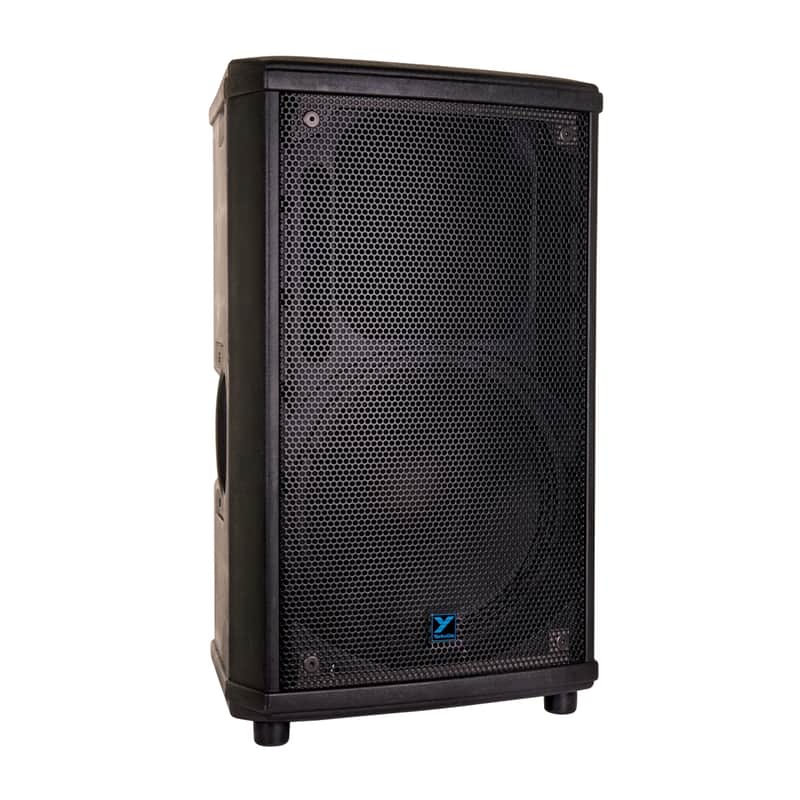

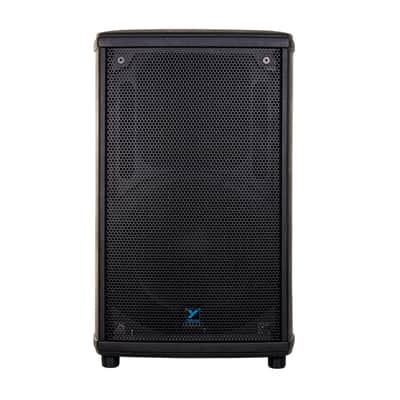

<p><strong>NX 12” Powered Loudspeaker</strong></p> <p>For over twenty years, NX loudspeakers have earned a reputation for proven reliability. The traditional analog design works equally well as a front of house speaker or stage monitor. Featuring a 12” woofer and 2000 watts of peak power (1000 watts program), the NX55P-2 is the most powerful speaker in the NX series.</p> <p>The rear panel features a master level control, a selectable LF rolloff for use with a subwoofer or as a vocal monitor, and a switchable onboard mixer section. When enabled, this provides an XLR microphone input and 1/4" line inputs with level controls and 2-band EQ. Link inputs and outputs provide balanced connectivity to other cabinets. Up to three onboard mixers can be active in a linked system, providing up to three mic inputs and six line inputs without requiring an external mixer.</p> <p>Inputs and controls are well-protected, so the NX55P-2 can be used in any orientation. It was carefully designed for low operating temperatures and reduced heat production, so it can be placed close to walls, floors, and other speakers.</p> <p><strong>Features</strong></p> <ul> <li>2000 W Peak Power (1000 W Program)</li> <li>12” LF Driver with 3” Voice Coil</li> <li>4” HF Driver</li> <li>1x XLR Mic Input, 2x 1/4" Line Inputs, 1x XLR and 1x 1/4” Link Inputs</li> <li>1x XLR and 1x 1/4" Link Outputs</li> <li>Integrated Mixer with 2-Band EQ</li> <li>Switchable LF Rolloff for Use with Subwoofers</li> <li>Integrated Flying Hardware</li> <li>System Type : Powered Loudspeaker</li> <li>Power Rating : 2000 W Peak (1000 W Program)</li> <li>Biampable : Self-Powered</li> <li>Biamp Operation Only : Yes</li> <li>Sensitivity (dB AT 1Watt/1m) : 100 dB</li> <li>Max SPL : 134 dB Peak (128 dB Continuous)</li> <li>Frequency Response (Hz +/- 3dB) : 45 Hz - 18 kHz</li> <li>Crossover Frequency : 2 kHz</li> <li>HF Driver(s) : 1.4” Aluminum Diaphragm, 1” Exit</li> <li>HF Dispersion (°H x °V) : 80° x 50°</li> <li>HF Protection : Thermal / Peak Limiter</li> <li>LF Driver(s) : 12” with 3” Voice Coil</li> <li>LF Protection : Thermal / Overcurrent</li> <li>HF Amplifier Type : 2-Tier Class H</li> <li>LF Amplifier Type : Class D</li> <li>Power Consumption (typ/max) : 120 / 310 VA</li> <li>Limiter : Yes</li> <li>LED Indicators : Power, Clip, Limit</li> <li>Bar Handles : 1 (Side)</li> <li>Flypoints : 4 (2x Top, 2x Bottom), 1x Pullback</li> <li>Flying Hardware : 43922</li> <li>Optional Flying Hardware : NXF Flyware</li> <li>Pole Mount Adapter (1 3/8 : 1 (Bottom)</li> <li>Enclosure Materials : Molded Polypropylene</li> <li>Dimensions (DWH) : 12.25" x 16" x 26.5" (31.1 cm x 40.6 cm x 67.3 cm)</li> </ul> <p><strong>Inputs</strong></p> <ul> <li>1x XLR (Mic)</li> <li>2x 1/4" (Line / CD)</li> <li>1x XLR</li> <li>1x 1/4" Link Inputs</li> <li>Input Sensitivity (Vrms Sine) : 1.23 Vrms Sine, +4dBv</li> </ul> <p><strong>Controls</strong></p> <ul> <li>Master Level, LF Rolloff (60 Hz / 100 Hz)</li> <li>Mixer On / Off</li> <li>Mic Level</li> <li>Line / CD Level</li> <li>Treble</li> <li>Bas</li> </ul> <p><strong>Mixer</strong> <strong>Controls</strong></p> <ul> <li>Line Level</li> <li>Mic Level</li> <li>Bass</li> <li>Treble</li> </ul>
