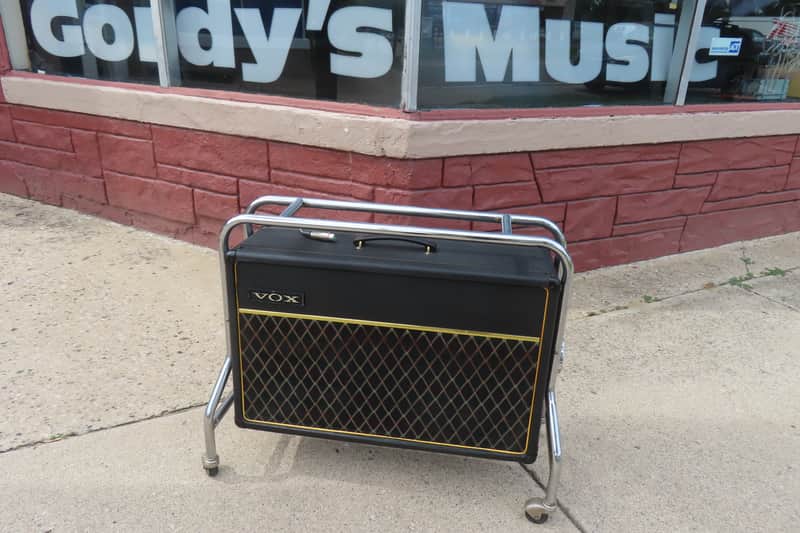

VOX 1968 SUPER BERKLEY lll Model V-4083 2-10" CELESTION BLUE BULLDOG CABINET on FRAME w/WHEELS ORIGINAL CLEAN

*Here at Gordy's Music in Ferndale, Michigan, we are so proud and grateful to receive the REVERB TOP 300 SELLERS Certificate for the second year in a row! A real honor.

We want to start by thanking all of you, our customers, my partner wife Marcia, top notch crew, and Reverb.com. We have quite a team and will strive to get this certificate year after year.*

_________________________________________________________________________________________________

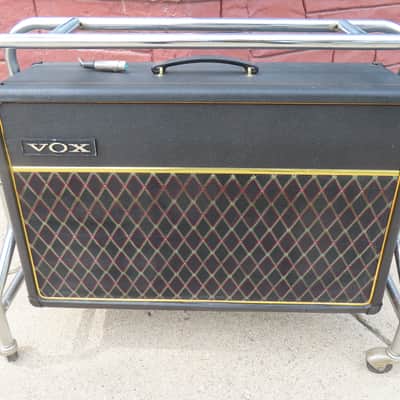

Based on the serial number, specific model codes, and speaker details provided, this 2-10" cabinet is a mid-to-late 1960s Vox Berkeley Piggyback Stack. This configuration consists of the Vox V-4083 2x10" Speaker Cabinet paired with its original chrome swivel trolley frame on wheels and original UK-made Celestion/Jennings Blue Label 7724 speakers. Below are the detailed historical and technical specifications for these specific components.

Vox V-4083 2x10" Speaker Cabinet Specs:

The V-4083 cabinet was manufactured by the Thomas Organ Company in Sepulveda, California. It was explicitly designed for the transistorized Berkeley II (V1081) and Berkeley III (V1083) solid-state amplifier heads.

• Cabinet Model: V-4083
• Enclosure Style: Open-backed design (typically features a central oval-shaped or horizontal cutout for acoustic projection).
• Materials: 3/4" fir plywood top, bottom, and side panels; particle board front baffle and back panels. Wrapped in classic black basketweave Vox Tolex.
• Grille Cloth: Black Vox diamond pattern grille cloth or early "Blue Weave" pattern depending on the exact year transition.

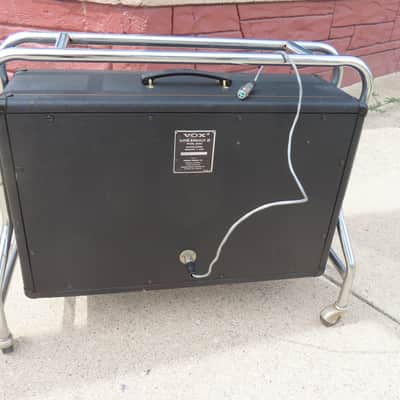

• Inputs: Features a 3-pin XLR speaker jack input on the back panel, requiring a specialized male-to-male XLR speaker cable to connect to the head.
• Total Impedance: Wired for 4 Ohms or 8 Ohms total load (depending on the internal parallel wiring of the specific production run).

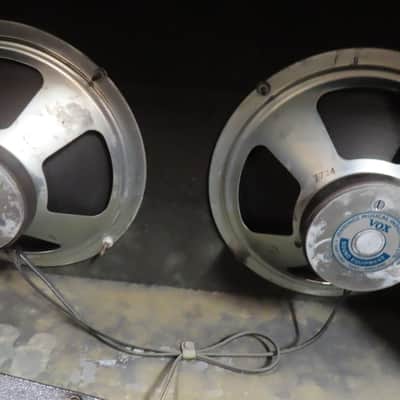

Celestion / Jennings "Blue Label" 7724 Speakers

The Celestion 7724 is a famous 10" speaker choice highly sought after by collectors. During the mid-1960s transition, Jennings Musical Industries (JMI Vox UK) shipped these British-made components to Thomas Organ in the US.

• Manufacturer: Celestion (UK) for JMI / Jennings / Vox.
• Model/Frame Number: #7724 stamped on the unpainted steel chassis.
• Aesthetics: Known as the "Blue Label" or "Blue Bulldog" speaker due to the distinct blue and silver Vox sticker applied to the back of the magnet plate.
• Magnet Type: Ceramic magnet fastened directly to the frame with three flathead screws.
• Voice Coil: 1-inch voice coil.
• Cone: Eight-rib "NIB" paper cone.
• Power Handling: Rated at approximately 15 Watts Max per speaker.
• Impedance: 8 Ohms per speaker (typically wired in parallel or series to match the solid-state head's required load). "piggyback" aesthetic is defined by the inclusion of this tubular frame.

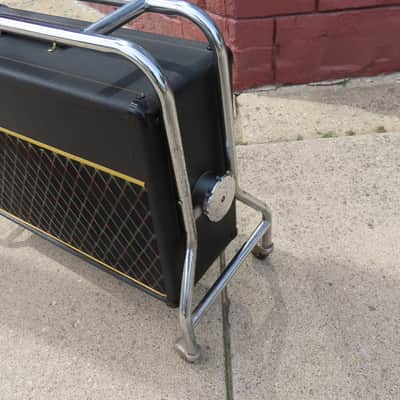

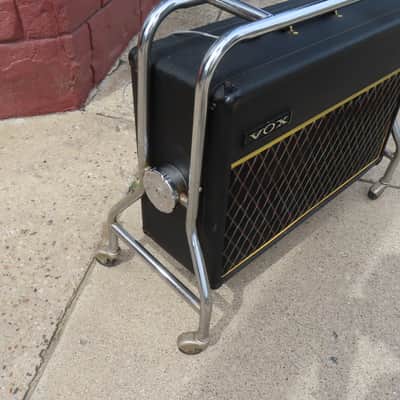

• Construction: Heavy-duty, chrome-plated tubular steel.
• Functionality: A swivel design that allows the cabinet to tilt back for better sound dispersion on stage.
• Mounting: Includes the essential side-mounting wing-bolts and clamps designed to firmly lock the accompanying amplifier head onto the top bars of the trolley.
• Mobility: Equipped with four original ball-bearing casters/wheels.

Serial Number History (1109152)Vox/Thomas Organ used a 7-digit serialization system for their American-made lines.

• Serial numbers beginning with 110xxxx consistently pinpoint production to the 1967–1969 window.
• That places this cabinet right at the peak transition era between the Berkeley II and Berkeley III solid-state line.
• Pickup only at our shop unless special arrangements are made.
• Proper packing with labor, materials, weight, etc. will be expensive.
• We will give shipping quotes but prefer pickup here at Gordy's Music

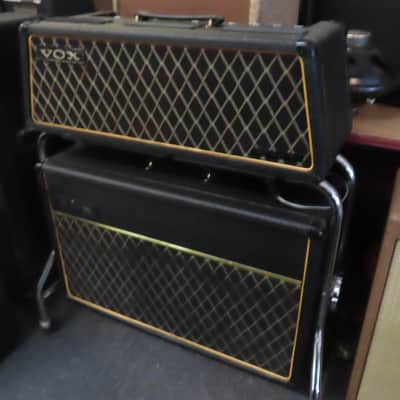

• We do have pictured in this listing, the Vox 1960's Buckingham amp head . It is for sale at the following Reverb link in a different listing.
