Contrik ZNPKL-60 Active DI-Box
Our users rate Reverb
NEW old stock!

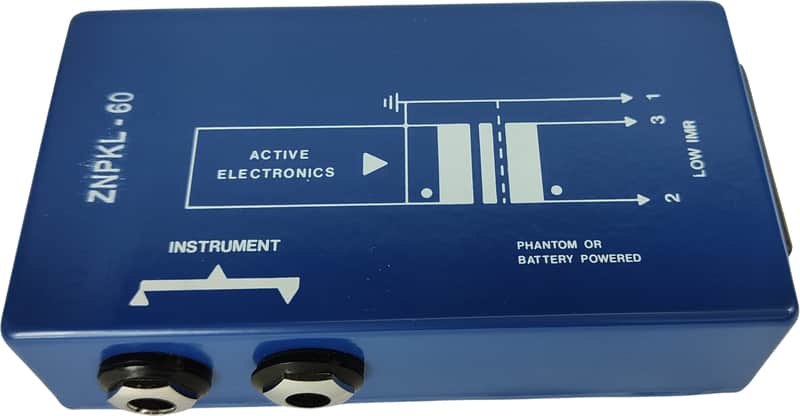

The electronically active DI-box ZNPKL-60 enables direct electrical supply of electronic musical instruments such as keyboards, synthesizers, electric pianos, etc. in mixing desks of Sound systems and recording studios.
This DI box was developed for cases where the use a passive DI box due to the existing level
attenuation not possible, i. the level is too low for Control of the mixer.
The very high-impedance input of the loaded also sensitive Liche output levels (low output voltages, high Impedances) of the instruments and achieved by the Amplifier built a voltage ratio of 1: 1 of input to output, in any case sufficient for the control a microphone input of the mixer. The input jacks are 6.3 mm jack, unbalanced, the output is XLR 3-pin built-in plug designed and symmetrically shaded.
The nominal output impedance is 600 ohms, i. enough for the modulation of microphone inputs, z.T. also from line Inputs of mixing consoles. Power is supplied by the Built-in 9 V battery or phantom power 24 ... 48 V.
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
