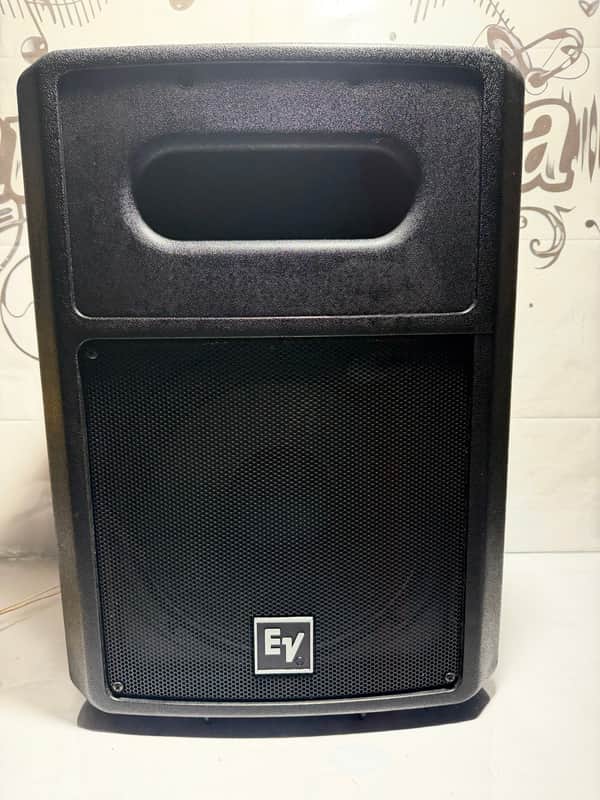

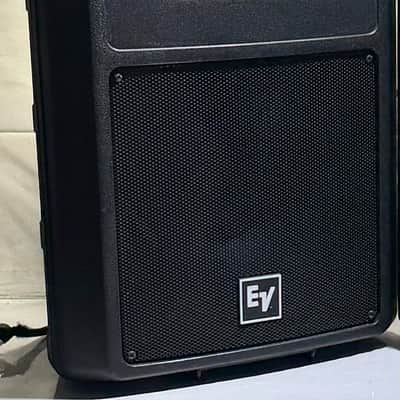

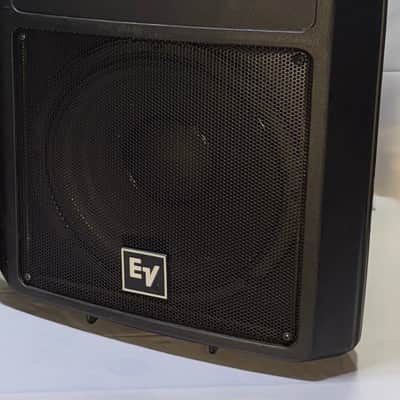

Electro-Voice Sb121 12" 300-Watt Passive Bass Module

The Sb121 is Electro-Voice's compact bass module, designed to add low-end reinforcement under the EV Sx Series and other pro cabinets. It pairs a long-throw 12" EV Sb12 cast-frame woofer with a lightweight polypropylene enclosure, and the large front vent centered above the driver lets the woofer move more air than the box size suggests. The Sb12 driver was developed specifically for this cabinet, with a deep-frame geometry, Kevlar composite cone, and a surround that gives it close to two inches of total excursion.

It handles 300 watts continuous and 1,200 watts peak at 8 ohms, and runs off a pair of paralleled Neutrik Speakon connectors so you can daisy-chain cabinets without signal loss. The enclosure can be stacked, pole-mounted, or flown with the optional Mb-series hardware, and at 32 pounds with an integral handle it's an easy one-hand carry.

SPECIFICATIONS

Driver: 12" EV Sb12 cast-frame long-throw woofer, Kevlar-reinforced cone

Power Handling: 300 W continuous / 1,200 W peak

Impedance: 8 ohms

Sensitivity: 95 dB (1W/1m)

Max Calculated SPL: 126 dB

Frequency Range: 45 Hz - 600 Hz (-10 dB)

Recommended Crossover Range: 90 Hz - 130 Hz

Recommended High-Pass: 43 Hz

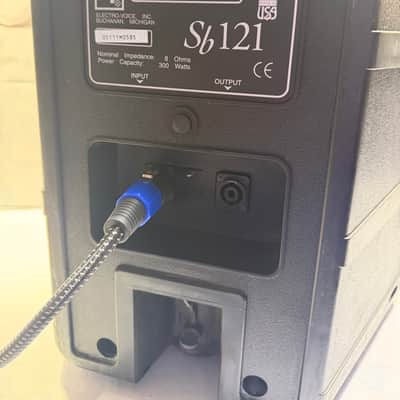

Connectors: (2) parallel Neutrik Speakon NL4

Enclosure: Polypropylene, stackable / stand-mountable / suspendable

Dimensions: 23.1" H x 16.9" W x 12.3" D

Weight: 32.2 lbs
