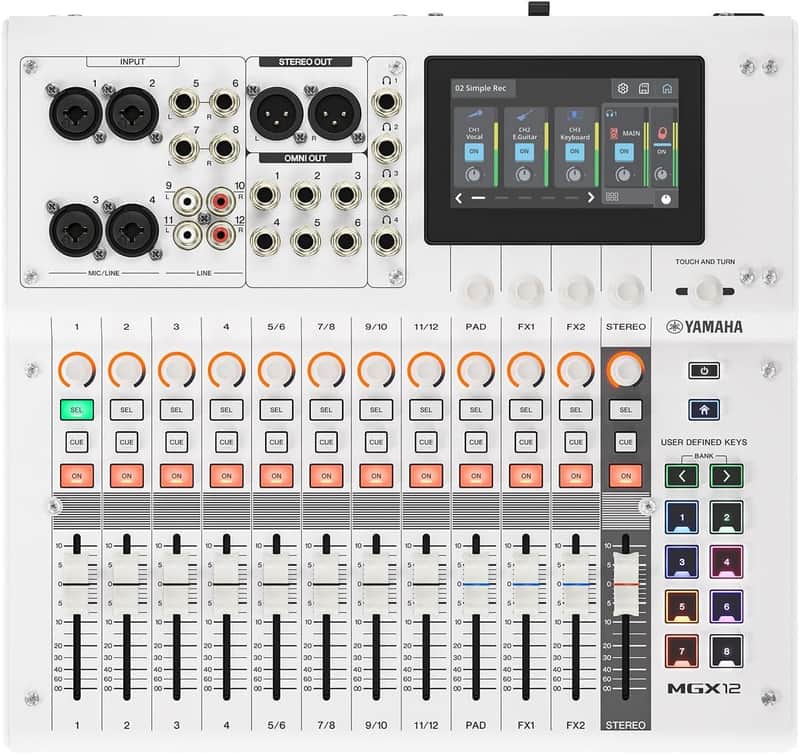

The Yamaha MGX12V Digital Mixer (White) is a compact yet powerful 18-channel (12-input) hybrid mixer built for live sound, streaming, and content creation. Designed for modern workflows, it combines hands-on control with advanced digital processing in a portable, intuitive format.

At its core is a 4.3-inch touchscreen, 11+1 non-motorized faders, and four MGX mic preamps, delivering clean, studio-quality audio. An 18-in/18-out USB audio interface supports high-resolution 32-bit/96 kHz recording, while integrated HDMI-to-USB video capture enables seamless audio-video streaming from a single device.

Key Features & Capabilities

Integrated Audio & Video

• Built-in HDMI-to-USB interface with real-time HDMI passthrough for effortless streaming and video capture

Flexible I/O

• 4 combo mic/line inputs

• 4 stereo line inputs

• 2 FX channels

• 4 headphone outputs

• 2 XLR main outputs and 6 TRS OMNI outputs

Advanced Digital Performance

• 18-in/18-out USB interface plus a secondary 2-in/2-out SUB interface for flexible routing

• 16-track recording and 2-track playback directly to a microSD card

Hands-On Control

• 4.3-inch touchscreen with dedicated control knobs

• 8 customizable sound pads for triggering audio and effects

Smart Assistive DSP

• Auto Gain for fast level setup

• Clip Safe to prevent digital distortion

• Scene Recall and professional-grade digital effects

Software & Streaming Ready

• Includes Steinberg production software (Cubase AI, Wave, and more)

• Fully compatible with OBS, Elgato, and popular streaming platforms

The MGX12V is purpose-built for hybrid, multi-participant productions, delivering studio-quality sound, reliable performance, and intuitive control in a compact, portable mixer designed for today’s creators and live professionals.

Features

MGX12V 18-Channel Digital Mixing Console with Video Interface

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 11 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
• USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
