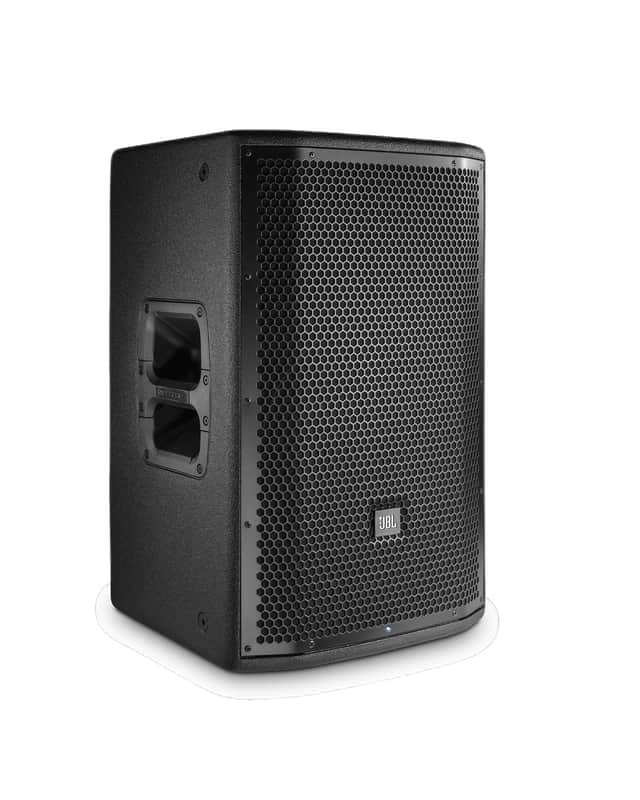

JBL PRX812W 12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

JBL PRX812W 12" Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The PRX812W delivers substantial output from a compact, transportable cabinet that handles both main and monitor duties with authority. Its rugged all-wood construction with DuraFlex™ finish and dent-resistant steel grille withstands the demands of touring and frequent relocation. This is a workhorse speaker built to perform night after night in mid-to-large venues.

Audio Performance & Output

A 1500-watt class-D amplifier drives the 12" two-way bass-reflex design, producing a maximum SPL output of 135 dB peak with clean, controlled dynamics thanks to the integrated dbx Type IV™ limiter circuit. The 52.6–20 kHz frequency range (main mode) and 1.850 kHz crossover frequency ensure full-spectrum coverage from tight bass through articulate midrange and crisp highs.

Connectivity & Control

Wi-Fi technology with the PRX Connect app enables real-time tuning and performance monitoring from any device on set, eliminating the need for physical access to rear-panel controls during operation. Multiple input options—XLR, 1/4", and RCA connections with XLR loop-through—accommodate any mixing console or playback source, while the intelligent variable-speed fan runs only when thermal conditions demand it, keeping electrical noise to a minimum.

Key Features

• 1 x JBL 272G 305 mm (12 in) woofer and 1 x JBL 2408H-2 37.5 mm (1.5 in) compression driver
• 1500-watt class-D amplifier with integrated dbx Type IV™ limiter circuit
• Maximum SPL output: 135 dB peak
• Frequency range: 52.6–20 kHz (main mode) / 50.3–20 kHz (monitor mode)
• Crossover frequency: 1.850 kHz
• Redesigned Crown input technology: XLR, 1/4", and RCA inputs plus XLR loop-through
• Input impedance: 20K Ohms (balanced) / 10K Ohms (unbalanced)
• Wi-Fi connectivity with PRX Connect app for remote tuning and control
• AC power input: 100–240V ~ 50/60 Hz
• Rugged all-wood cabinet with DuraFlex™ finish
• 16 gauge steel grille for dent resistance
• Intelligent variable-speed fan for low-noise operation

The PRX812W combines muscular output, wireless control, and road-ready durability in a single cabinet that professionals depend on for touring, rental stock, and permanent installations alike.
