MXL Trophy Custom Studio Condenser Microphone

MXL Trophy Custom Studio Condenser Microphone

-41.9dB Sensitivity, 20Hz - 20kHz Frequency Response

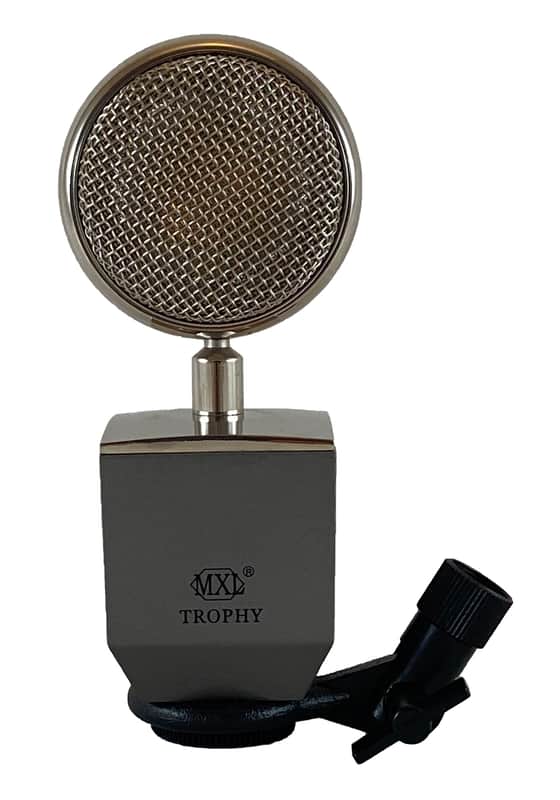

MXL Trophy is a large-diaphragm cardioid condenser with a square body and lollipop-style attached head.

The microphone head is designed to minimize reflections and standing waves. The 34mm capsule is an edge-terminated design with 6-micron diaphragm material. Since the Trophy’s release and into 2012-Q1, this edge-terminated capsule has not been used in any other MXL microphone.

The circuitry is transformerless.

The frequency curve is contoured with wide boosts centered at 80 and 8,000 Hz. The polar pattern is wide-cardioid, nearly omnidirectional.

MXL recommends using the Trophy at a distance of 3-6 inches.

A nameplate on the front of the mic can be personalized.

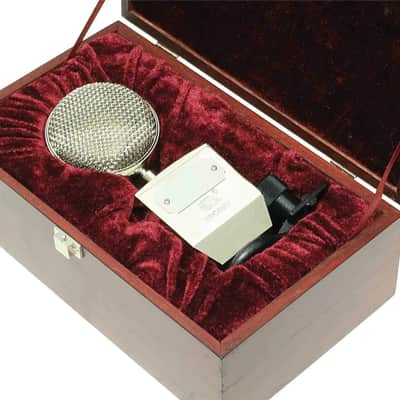

 The Trophy ships with a “ring” mount, polishing cloth, and a velvet-lined wooden storage case.

Key Features:

·      Includes removable nameplate for personal inscriptions

·      Side-tapped capsule

·      Classic grill design minimizes early reflections

·      A great gift for your favorite artists

Specs

Pickup Patterns: CHARTCardioid (8.0 mV/Pa; 20 - 20,000 Hz)

Pads & Filters

Capsule Dimensions: Diaphragm diameter: 25mm

Capsule diameter: 34mm

Diaphragm gauge: 6 microns

Impedance: 200 Ohms (Low)

SPL/Noise: Max SPL: 142 dB

Self-noise: 11.0 dB(A)

Weight: 760g (26.81oz)

Length: 165mm (6.50'')

Max Diameter: 52mm (2.05'')

Interface(s): 3-pin XLR male (1)

Power Specifications: Requires phantom power

Phantom voltage: 48v
