The gigging musician’s go-to.

JUNO-D is the perfect synth for gigging musicians and budding creators. This light and portable keyboard features a pro-grade Roland sound engine and an intuitive panel layout for easy operation. Play in a band or craft new songs with a massive sound library, an eight-track sequencer, and versatile connections for your gear. Perform on the move with support for USB-C mobile battery power. And stay inspired with new sounds on Roland Cloud.

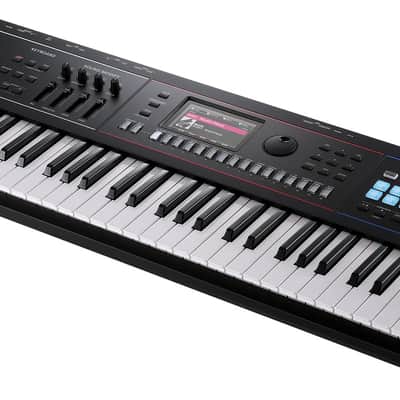

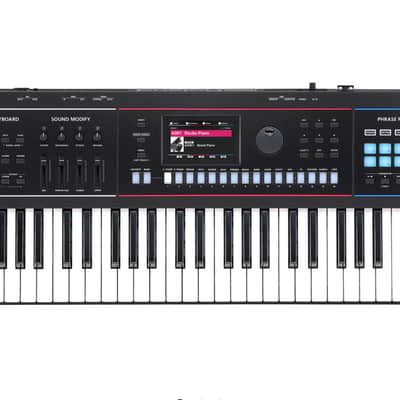

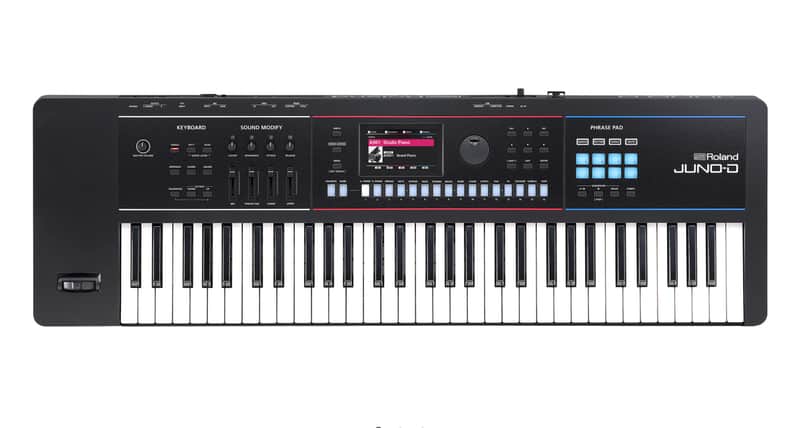

Equipped with 61 synth-action keys, JUNO-D6 is the most compact model in the JUNO-D lineup.

Roland JUNO-D — Technical SpecificationsKeyboard

• Number of keys: 61
• Velocity-sensitive: Yes

Sound Generator

• Parts: 8
• Sound engine: ZEN-Core
• Tones: 3,800 or more
• Drum kits: 95 or more
• Tone import/export: ZEN-Core Tones can be imported and exported
• Expansion: EXZ Series
• • Rewritable internal sound generator memory
  • Expansion data can be downloaded from Roland Cloud and loaded into the internal memory via USB flash drive

Scenes

• Preset Scenes: 128 scenes × 2 banks
• User Scenes: 128
• Scene Remain: Yes
• Favorites: 128

Effects

• Multi-Effects: 8 systems, 93 types
• Part EQ: 8 systems
• Drum Part Compressor: 6 systems
• Insertion Effects: 1 system, 93 types
• Chorus: 10 types
• Reverb: 8 types
• System EQ: 1 system
• Mic Reverb: 8 types
• Mic Noise Suppressor / Compressor
• Vocoder: 13 bands, mono

Step Sequencer

• Tracks: 8 per scene
• Maximum: 64 steps
• Recording methods: Real-time recording, Step recording, TR-REC
• Editing: Step Edit

Audio File Player

• Formats: WAV, AIFF
• Sample rates: 44.1 / 48 kHz
• Bit depth: 8 / 16 / 24-bit

Other Features

• Rhythm Pattern
• Arpeggio
• DAW Control
• Chord Memory

Controllers

• Pitch Bend / Modulation lever
• 4 Sound Modify knobs
• 4 sliders
• 2 × 4 pads

Display

• Graphic color LCD
• Resolution: 480 × 272 dots
• Backlit

Connections

• Headphones: Stereo 1/4" jack
• Main Outputs: L/MONO, R — 1/4" TRS
• Mic Input: 1/4" / XLR
• External Input: Stereo mini-jack
• Foot Pedals: HOLD, CONTROL
• MIDI: IN, OUT
• USB MEMORY: Type-A
• USB COMPUTER: USB Type-C, Class Compliant for Audio and MIDI / Roland driver for Audio and MIDI

External Memory

• USB flash drive (sold separately)

Power

• AC adapter
• USB bus power via USB Type-C
• Current draw: 700 mA with AC adapter / 2,000 mA via USB
• Power consumption in OFF mode: 0.2 W

Included Accessories

• Startup Guide
• “USING THE UNIT SAFELY” leaflet
• PSB-5U AC adapter
• Power cord

Optional Accessories

Keyboard stands:

• JUNO-D6: KS-11Z, KS-13, KS-20X
• JUNO-D7: KS-11Z, KS-13, KS-20X
• JUNO-D8: KS-G8B, KS-11Z, KS-13, KS-20X

Pedals:

• Pedal Switch: DP Series
• Expression Pedal: EV-5

Dimensions & Weight

• Width: 1,005 mm (39-5/8")
• Depth: 324 mm (12-13/16")
• Height: 94 mm (3-3/4")
• Weight: 5.8 kg (12 lbs 13 oz)
