Yorkville EL24S | 24" 2500W Powered Subwoofer. New with Full Warranty!

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

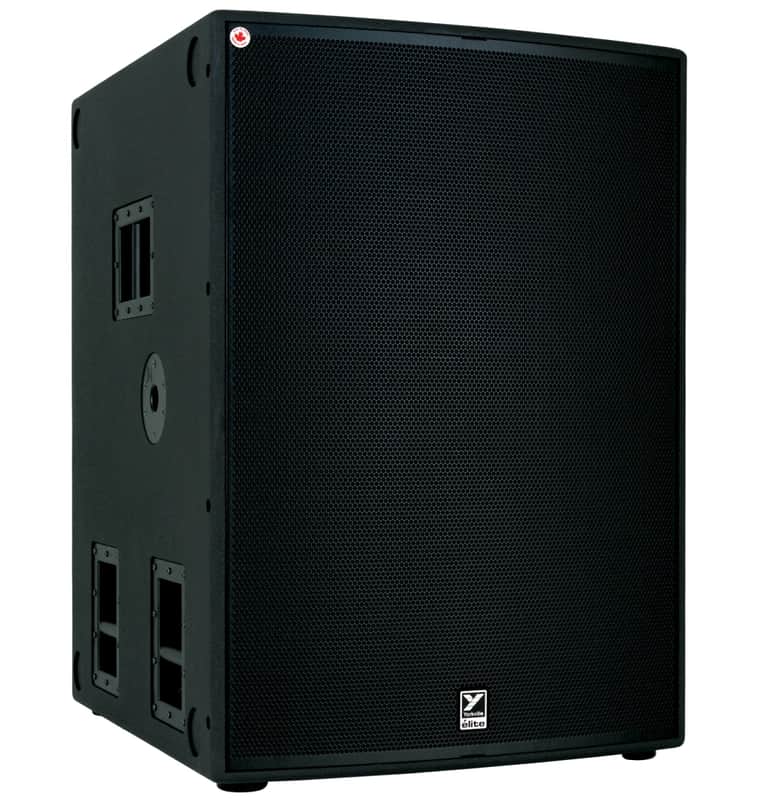

The EL24S is the world’s first 24” active subwoofer for live sound. As groundbreaking as it is earthshaking, it features a neodymium driver with a 2-foot diameter and 6” voice coil. It delivers 5000 watts of peak power (2500 watts program), 143 dB peak SPL (137 dB continuous), and a frequency response of 30 Hz – 100 Hz. The result is uniquely deep and powerful bass that must be experienced to be believed.

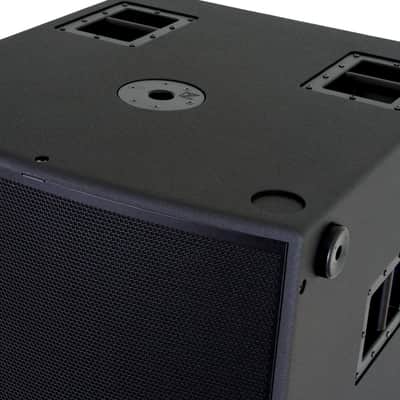

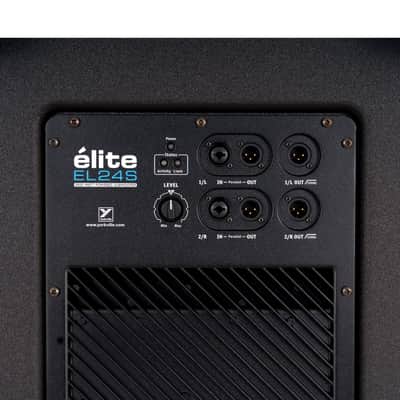

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 compatible input and output connectors.

If you need a more compact option, we also offer the EL18S and EL21S. But if you need the lowest lows, then size matters, and the EL24S is truly unlike anything you’ve heard before.

Like all Elite loudspeakers, the EL24S is proudly made at the Yorkville factory outside of Toronto, Canada.

Features

• 5000 W Peak Power (2500 W Program)
• 143 dB Max SPL (137 dB Continuous)
• 24” Neodymium Woofer with 6” Voice Coil
• 30 Hz - 100 Hz Frequency Response
• Onboard Limiter
• 2x XLR Inputs with Full-Range Parallel Outputs
• 2x High-Passed XLR Outputs
• 15 mm Birch Plywood Construction
• Made in Canad

Specs

System Type Powered Subwoofer

Power Rating 5000 W Peak (2500 W Program)

Max SPL 143 dB Peak (137 dB Continuous)

Frequency Response 30 Hz - 100 Hz (+/- 3 dB)

Crossover Frequency 100 Hz

LF Driver(s) 24" Neodymium with 6" Voice Coil

Power Cable powerCON® TRUE1 Compatible Connectors

(Input / Output)

Power Consumption 6.5A, 12A (typ/max)

Inputs 2x Combo-jack (XLR / 1/4” TRS)

Outputs 2x XLR High-Pass

2x XLR Link (Full Range)

Level Controls Yes

LED Indicators Power, Activity, Protection

Wheels 2x Rigid, 2x Swivel Casters

Bar Handles 2x Top, 6x Side, 2x Bottom

Flying Hardware No

Pole Mount Adapter 1x Top, 1x Side

Enclosure Materials 15mm Birch Plywood

Grille Powder-Coated Steel

Covering / Finish Textured Paint

Dimensions (DWH) 31.4" x 27.9" x 39" (Depth with Casters 36.6”)

79.8 cm x 70.9 cm x 99.1 cm (Depth with Casters 93 cm)

Weight 240 lbs / 109 kg

Specifications subject to change without notice
