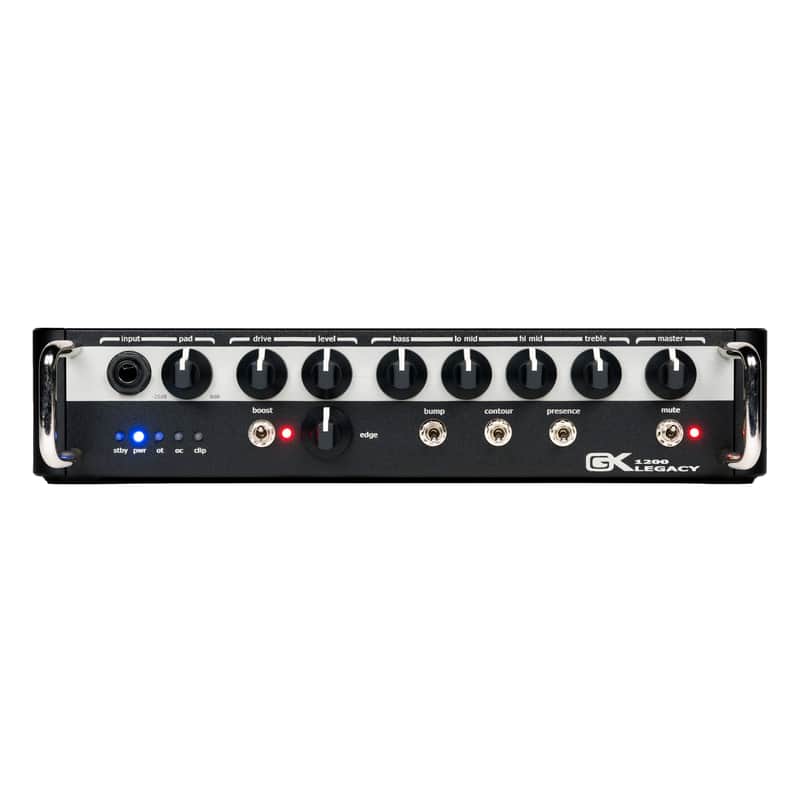

Experience Unmatched Power - The Gallien-Krueger Legacy 1200 1200-Watt Ultralight Bass Guitar Head Amplifier

The Legacy Series represents fifty years of design, innovation and industry experience at Gallien-Krueger. Bob Gallien remains at the helm of the company, still working in the lab daily, as he did in the beginning, to create the best sounding, most versatile, and reliable professional bass gear available.Because the Legacy Series shares the same designer as the 800RB, it shares the same DNA and the same level of innovation, with a more evolved feature set and construction concept.

The introduction of the 800RB in 1980 cemented Gallien-Krueger as a leader in Solid State bass amplification, with its signature growl, clarity, power, and features that were ahead of its time. The new Legacy Series of heads captures that same aesthetic while adding something all its own. From clean, clear, biting tones, to saturated overdrive, the Legacy series has it all. Coming in 500, 800, and 1200 watt class D models, The Legacy Heads are ready for the biggest stages, the smallest living rooms, and everything in between.

To improve performance and reliability, the Legacy Series uses a unique interconnection system that eliminates problems that can develop over time from constant vibration and temperature extremes that gear is subjected to with heavy use. Using circuitboards with gold plated connectors, rather than cables with standard tin connectors, this type of construction delivers a more pure, reliable sound. Features include GK's classic 4 band EQ, Overdrive complete with tone shaping, additional voicing filters such as "Bump", "Contour", and "Presence", Balanced DI with Pre and Post EQ, an Effects Loop, Aux and Headphone connections, and Load capacity selection, to deliver optimum power into 2, 2.7, 4 and 8ohm cabinet configurations.

SPECIFICATIONS

Power Output

• 1 Channel: 400W @ 1% THD+N, 8Ω
• 1 Channel: 800W @ 1% THD+N, 4Ω
• 2 Channels: 800W Total @ 1% THD+N, 8Ω Per Channel
• 2 Channels: 1200W Total @ 1% THD+N, 4Ω Per Channel
• 2 Channels: 950W Total @ 1% THD+N, 4Ω on One Channel and 8Ω on the Other Channel

Input / Output

• Maximum Input Level: 0.6V RMS
• Input Impedance: 1MΩ
• Send Output Impedance: 220Ω
• Return Input Impedance: 50KΩ
• Tuner Output Impedance: 10KΩ
• Direct Output Impedance: 500Ω

Equalizer

• Bass: ±10dB @ 60Hz
• Low Mid: +6dB / -10dB @ 250Hz
• High Mid: +6dB / -10dB @ 1kHz
• Treble: ±14dB @ 7kHz
• Contour Filter: +2dB @ 50Hz / -10dB @ 500Hz / +3dB @ 7kHz

Performance

• Noise: -90dB (A-weighted), Reference to 800W/1200W
• Amplifier Protection: Full Short Circuit, Thermal and RF Protection
• Stable Into Reactive and Mismatched Loads
• 16-Second Muted Warm-Up
• Cooling: Two 40 x 40 x 20mm Variable-Speed Fans (12VDC, 1.6W Each, 8500 RPM, 10.91 CFM Per Fan)

Dimensions & Weight

• Dimensions (H x W x D): 2.4" x 11.5" x 10.7" (61 x 291.3 x 271mm)
• Weight: 6.5 lbs. (2.9 kg)

Power Requirements

• 120V / 60Hz (U.S./Canada): 1432W Full Power, 215W Average Power
• 230V / 50/60Hz (Europe): 1432W Full Power, 215W Average Power
• 100V / 50Hz (Japan): 1432W Full Power, 215W Average Power

Manufacturer: Gallien-Krueger
Model: LEGACY 1200
SKU: I587852-N-1-WHXC
UPC: 836989003035
