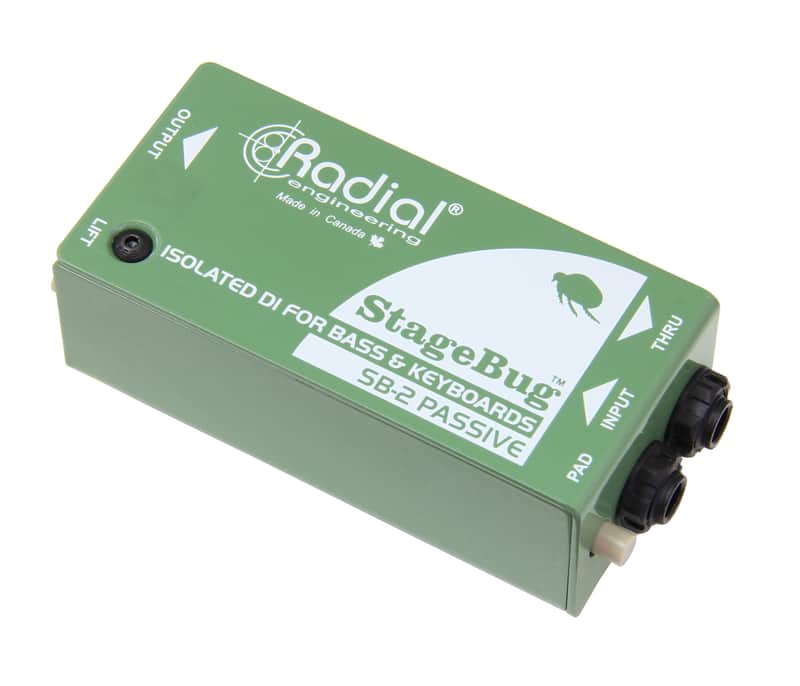

The StageBug SB-2 is a compact passive direct box that is perfect for
active basses and keyboards, is small enough to fit inside an instrument
case, and features a stereo to mono mix function to save mixer
channels.
Passive DI for bass, acoustic and keyboard
Ultra compact to fit in your guitar case
Plug & play easy to use feature set
Transformer isolation eliminates noise
Small size and big performance
The compact design begins with a ¼" input and
thru-put to feed the on-stage amp. This connects to the custom made
Eclipse ET-DB3 transformer which performs the impedance matching and
balances the signal. When using extra high output instruments, a -15dB
pad can be inserted into the signal path. This enables the SB-2 to be
used with active basses and digital pianos that often tend to overload
the input side of the interface. An innovative stereo-to-mono merge
function provides a convenient way to connect stereo keyboards and
computers without having to reset the source for mono operation, saving
time and input channels on the PA. The SB-2 output features an XLR wired
to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a
smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3
transformer is magical in its ability to handle extreme signal levels
with a natural compression that is pleasing to the ears. The transformer
also helps eliminate hum and buzz caused by ground loops by isolating
the input from the output. This is augmented with a ground lift switch
that lifts pin-1 on the XLR for quiet, professional results.
StageBug SB-2 Applications
Using the SB-2 with Acoustic guitar
Plug your acoustic guitar into the SB-2
Passive and it will smooth out the peaks and warm up your tone with a
vintage vibe. The compact design makes it perfect for traveling between
gigs.
Using the SB-2 with electric bass
Connect your bass to the StageBug SB-2;
send the thru signal to your amp and the output to the PA system.
Transformer isolation eliminates nasty hum and buzz caused by ground
loops.
Using the SB-2 with a keyboard
The Passive SB-2 is a perfect go-to direct
box when you need to take the output from a keyboard and send it to the
PA system. Input and thru jacks automatically merge the stereo signal to
mono to save channels while the SB-2 balances the signal to drive
distances of 100 meters (300 feet) without noise!
