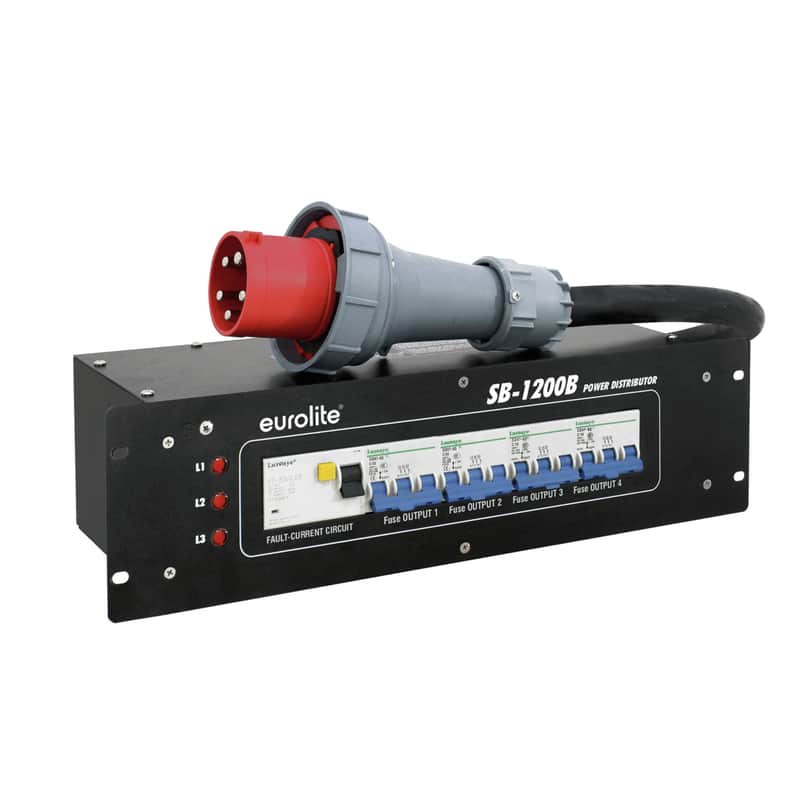

Eurolite SB-1200B Stromverteiler - Power Distributor

• Particularly suitable for setting up large power distributions
• With grounding screw to be able to ground a rig if necessary
• (19") 48.3 cm rack mount 3 U

The SB-1200B from Eurolite is a 63A power distributor, which is especially suitable for setting up large power distributions. It has two 5-pole CEE 32A and two 5-pole CEE 16A power outputs. The power distributor has a 483mm housing with 3U, which allows it to be installed in a 19" rack.

• Power supply: 380-400V AC, 50Hz
• Power connection: Fixed power cable with CEE 63A 5-pole
• Structure cable: 5 x 16 mm² H05RN-F
• Cable length: 1 m
• Power output: 2 x CEE 32A 5-pin (W) built-in version fused; 2 x CEE 16A 5-pin (W) built-in version fused
• Fuse protection: 1 x residual current circuit breaker (FI) type B 63A/0,03A 4-pole; 2 x circuit breaker C 16A 3-pole; 2 x circuit breaker C 32A 3-pole
• Phase presence indicator: 3
• Housing type: (19") 48,3 cm rack mount 3 HE

• Width: 48,3 cm

• Depth: 31 cm

• Height: 13,35 cm

• Weight: 8.50 kg
