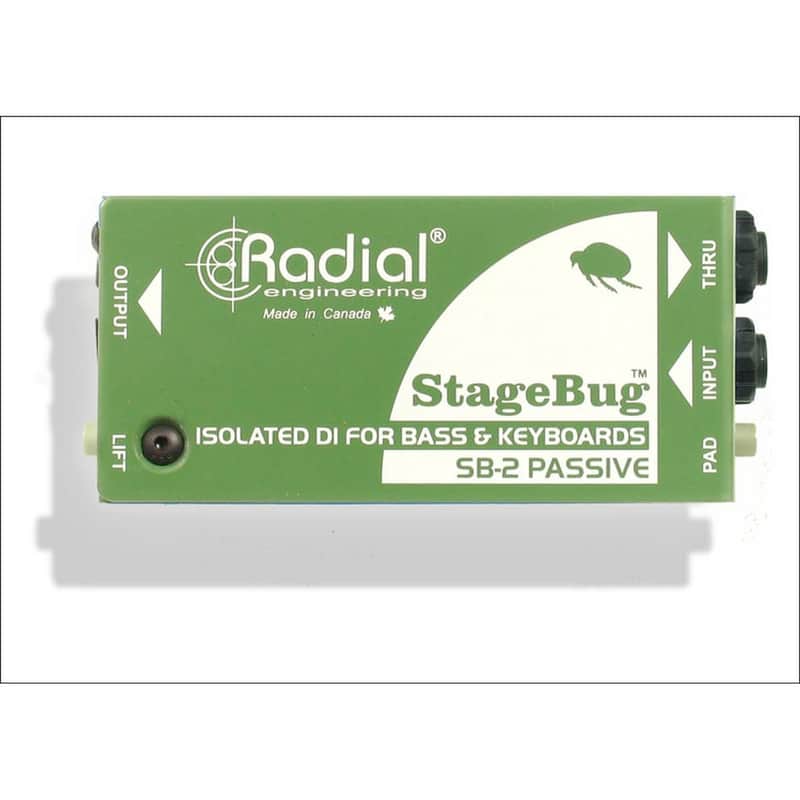

Ultra Compact Passive DI Bass Guitar Acoustic Keyboard The Radial StageBug SB-2 Passive is a high-performance direct box made for players who are on the move! Made to fit inside of a guitar case, the SB-2 is ultra compact yet is feature-packed to ensure great performance on any stage. The compact design begins with a 1/4" input and thru-put to feed the on-stage amp. This connects to the custom made Eclipse ET-DB3 transformer which performs the impedance matching and balances the signal. When using extra high output instruments, a -15dB pad can be inserted into the signal path. This enables the SB-2 to be used with active basses and digital pianos that often tend to overload the input side of the interface. An innovative stereo-to-mono merge function provides a convenient way to connect stereo keyboards and computers without having to reset the source for mono operation, saving time and input channels on the PA. The SB-2 output features an XLR wired to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3 transformer is magical in its ability to handle extreme signal levels with a natural compression that is pleasing to the ears. The transformer also helps eliminate hum and buzz caused by ground loops by isolating the input from the output. This is augmented with a ground lift switch that lifts pin-1 on the XLR for quiet, professional results. These features make the StageBug SB-2 a great choice for electric bass, acoustic guitar and keyboards where small size and big performance matters! Key Features Passive DI for bass, acoustic and keyboard Ultra compact to fit in your guitar case Plug & play easy to use feature set Transformer isolation eliminates noise Technical Specifications Audio circuit type: Passive, transformer based Number of channels: Single channel (mono) Frequency response: 20Hz ~ 20KHz (-,+ 0.5dB) Dynamic range: 115dB Maximum input: +20dB Total harmonic distortion: 0.005% @ 1kHz Phase deviation: 3 degrees @ 100Hz; 8 degrees @ 50Hz Input impedance: 140k Ohms, unbalanced Output impedance: 1k Ohms, balanced
Price$94.99
Free Shipping
Free Shipping
from Santa Fe Springs, CA
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
