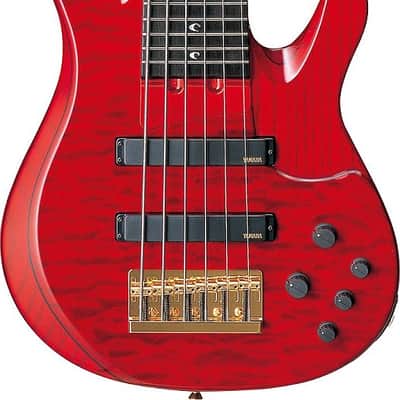

The Yamaha TRBJP2 TDR John Patitucci signature bass is the new upgraded version of the TRBJP with a new 35" scale neck with 26 frets and a 5-control active electronics system that offers a wide palette of tonal variation

John Patitucci Signature Model
In the nearly 20 years since John Patitucci first gained recognition as a member of Chick Corea's legendary Electric Band, he has established himself as one of the best jazz bassists of his time. Shifting seamlessly from a bandleader to respected sideman, John relies on his TRB JP2 signature 6-string bass to fit any role.

Features

• New 35" scale neck with 26 frets.
• Active 5 controls includes a 3 band EQ tuned to John's specifications.

White Pearloid Peg Heads
White pearloid peg heads aid in balancing the super long scale neck while adding great looks.

Custom Pickups
Pickups are a custom Alnico V design. The low-noise side-by-side double-coil pickups deliver clear tonal image even when playing chords.

Solid Brass Bridge
A massive solid brass bridge delivers a clear and rich sound.

4-Ply Laminated Body
The 4-ply laminated body is crafted from plies of figured maple, ash, alder, and maple. This design produces tight and rich resonation over the instrument's entire range. A slap cut on the body offers greater string access.

26-Fret Neck
The 35-inch (889mm) super long scale neck has 26 frets. The maple neck is fitted with double truss rods to sufficiently counter tension produced by the instrument's six strings.

Active Electronics
The 5-control active electronics system offers a wide palette of tonal variation. Everything from subtle variations in tonal nuance to dynamic sound output is possible.

Controls

• 1. Pickup Balancer
• 2. Master Volume
• 3. Bass
• 4. Middle
• 5. Treble

Specifications

• Construction: Bolt-On
• Scale Length: 35" (889 mm)
• Body Materials: Figured Maple/Ash/Alder/Maple
• Body Finish: Gloss Polyurethane
• Neck Materials: Maple 3-Piece
• Neck Finish: Gloss Polyurethane
• Fingerboard Materials: Ebony
• Fingerboard Radius: 40" (1000 mm)
• Fret Wire: Medium
• Number of Frets: 26
• Nut Materials: Bone
• Width @ 0 Fret / 12th Fret: 56 / 81.1 mm
• Thickness @ 1st Fret / 12th Fret: 21 / 23.5 mm
• Neck Pickup: Yamaha Custom Side-by-Side Type Double coil / Alnico V
• Bridge Pickup: Yamaha Custom Side-by-Side Type Double coil / Alnico V
• Controls: Master Volume, Pickup Balancer, 3-Band EQ (Bass, Middle, Treble)
• Bridge: Solid Brass
• String Spacing: 19mm
• Tuning Machines: Gotoh GB72
• String Gauge: D'Addario EXL170-6SL / 0.032-0.130 Super Long (6 Strings)
• Case: Hardshell Case

This bass delivers a clear and rich sound with it's massive solid brass bridge and 4-ply laminated body crafted from plies of figured maple, ash, alder, and maple.
