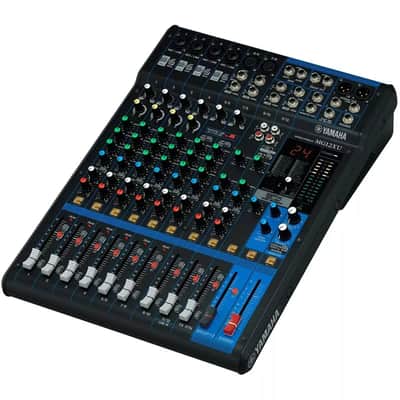

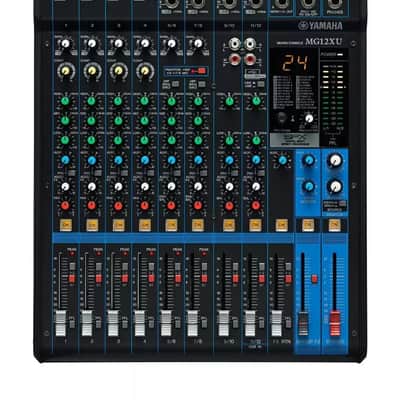

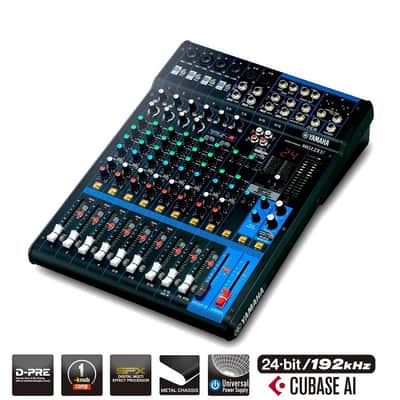

Drawing on over a century of Yamaha innovation, the MG12XU offers premium features in a rugged, compact design. Now in its third generation, the MG Series brings pro-level performance to a wide range of users—from home recording to live sound—with studio-quality mic preamps, onboard digital effects, and flexible USB audio functionality. With 12 channels, intuitive controls, and a road-ready chassis, the MG12XU is an outstanding choice for anyone looking to shape their sound with precision and confidence.

Features

• 12-channel analog mixer with 6 mic / 12 line inputs (4 mono + 4 stereo)
• Studio-grade “D-PRE” mic preamps with inverted Darlington circuitry
• SPX digital effects with 24 presets
• 1-knob compressors on mono channels
• 24-bit/192kHz USB audio interface (2-in/2-out)
• Compatible with iPad (requires Apple Camera Connection Kit or Lightning USB adapter)
• PAD switch and +48V phantom power on mono inputs
• Balanced XLR outputs and built-in universal power supply
• Includes Cubase AI DAW software (download version)
• Optional rack mount kit (RK-MG12) available

Specifications

Mixer
- Channels: 12
- Mic Inputs: 6
- Line Inputs: 12 (4 mono + 4 stereo)
- Buses: 2 GROUP + 1 Stereo
- AUX Sends: 2 (including FX)
- Input Channel Features
- Mic Preamps: “D-PRE” Class-A (Inverted Darlington circuit)
- Compression: 1-knob compressor (mono channels)
- Effects: SPX digital multi-effects (24 programs)
- PAD Switch: Yes (mono inputs)
- Phantom Power: +48V

Connectivity

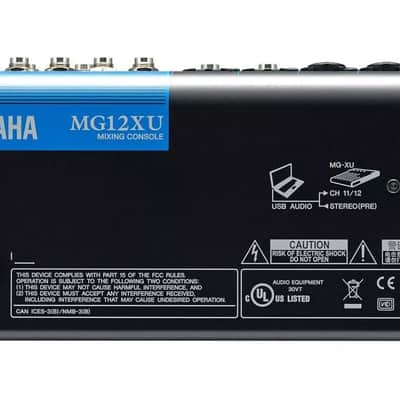

- Outputs: XLR (balanced main), stereo outs, AUX sends
- USB Audio: 24-bit / 192kHz, 2-in / 2-out
- iPad Compatibility: iPad 2 or later (via Apple adapter – not included)

Software & Power
- Included Software: Cubase AI (download version)
- Power Supply: Internal universal power supply (100–240V)

Construction
- Chassis: Metal
- Dimensions (W x H x D): 308 x 118 x 422 mm (12.1" x 4.6" x 16.6")
- Net Weight: 4.2 kg (9.3 lbs.)

Optional Accessories
- Rack Mount Kit: RK-MG12
