Nominal Input Level: -20 dBu Input Impedance: 1 M ohms Nominal Output Level: -20 dBu Output Impedance: 1 k ohms Residual Noise Level: 1 k ohms Residual Noise Level: -100 dBu (IHF-A Weighted, Typ.) Variable Range: Equalizer Control: +/- 15 dB, Level Control: +/- 15 dB Connectors: INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V) Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor Current Draw: 10 mA (DC 9 V) Accessories: Dry Battery 9 V type (6F22/9 V) Option: AC Adaptor (PSA-Series) Size and Weight ( incl. battery ) Width: 73 mm,2-7/8 inches Depth: 129 mm,5-1/8 inches Height: 59 mm,2-3/8 inches Weight: 450 g,1 lbs. Manufacturer's Description Boss GE-7 Graphic Equalizer Pedal Powerful 7-Band EQ!

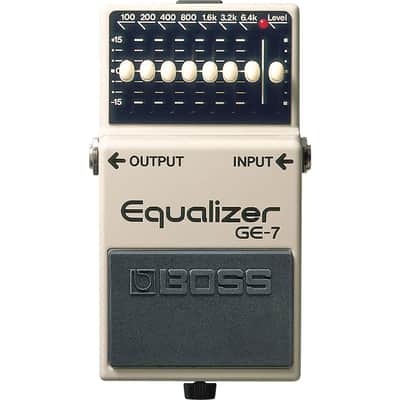

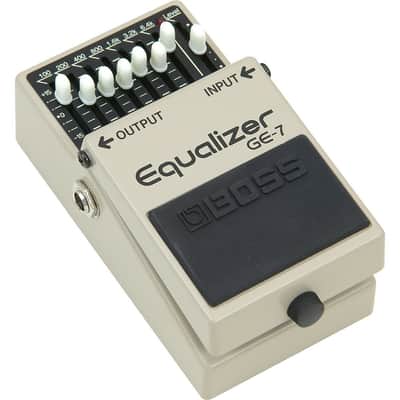

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

Features

• Compact EQ pedal with 7 bands of adjustable EQ sliders
• Allows for boost/cut of up to +/- 15dB per band
• Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
• BOSS five-year warranty
