SIMPLE PROFESSIONAL RECORDING ON MAC, PC AND IPAD

Record However You Want

Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

TECHNICAL SPECIFICATIONS FRONT PANEL

1 microphone input - XLR

1 Instrument input ¼’ unbalanced

2 Gain knobs

2 Gain halo signal indicators

48V Phantom power switch

Direct monitor switch

Large monitor level dial (controls headphone and line level outputs)

USB Connection LED indicator

Headphone output ¼’ TRS Jack

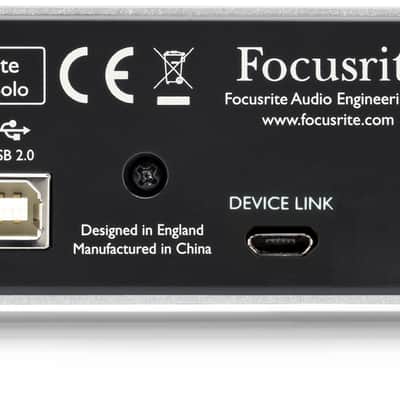

REAR PANEL

2 unbalanced monitor outputs - RCA Phono

DEVICE LINK port (to connect iTrack Solo to iPad)

USB 2.0 Port

Kensington Lock slot

INCLUDED SOFTWARE

Ableton Live Lite 9 - professional music making software to use your iTrack Solo with a Mac or PC.

Focusrite Scarlett plug-in suite - collection of software plug-ins bringing effects to your music software (like Ableton Live for example).

MIC ANALOGUE INPUT PERFORMANCE Frequency Response20Hz - 20kHz +/- 0.2 dB THD+N< 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter) Equivalent Input Noise (EIN)< -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter) Gain Range+10dB to +55dB Max Input Level+4dBu
INSTRUMENT Frequency Response20Hz - 20kHz +/- 0.2dB THD+N0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter) Noise-87dBu (22Hz/22kHz bandpass filter) Gain Range-10dB to +55dB Max Input Level+2dBu
ANALOGUE OUTPUT PERFORMANCE Nominal Output Level0dBFS = 10dBu, unbalanced Frequency Response20Hz - 20kHz +/- 0.2dB THD+N< 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)
DIGITAL PERFORMANCE Clock sourcesInternal clock only A-D Dynamic Range105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB D-A Dynamic Range105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB Supported sample rates44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz - Mac and PC
44.1 KHz, 48 KHz - iPad
CROSSTALK Input to InputBetter than 90dB Output to OutputBetter than 90dB Input to OutputBetter than 85dB
INPUT METERING

Ring LED lit Green Signal present (-24 dBFS)
Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second

WEIGHT AND DIMENSIONS

Height 45 mm / 1.77'
Width 150 mm / 6'
Depth 100 mm / 4'
Weight 500 g / 1 lb

IN THE BOX

iTrack Solo

1.2m USB cable

1.2m "DEVICE LINK" cable (to connect to a Lightning iPad)

Getting started guide

Registration card

Download card for Ableton Live Lite / Scarlett Plug-in Suite

USB power supply (US only)

COMPATIBLE IPADS

iTrack Solo Lightning: Any iPad with Lightning connector.

Standard iTrack Solo: iPad (1st gen), iPad (2nd gen) and iPad (3rd gen)
