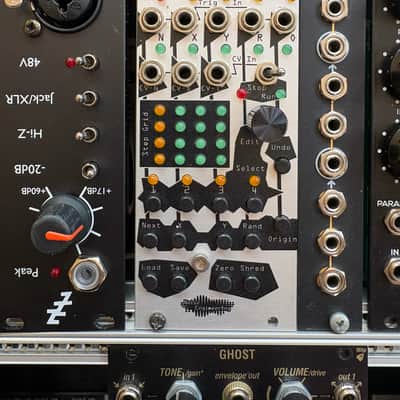

Noise Engineering Mimetic Digitalis — 10HP (Discontinued)

A compact, performance-focused four-channel CV sequencer from Noise Engineering, designed from the ground up for live use. Four simultaneous CV outputs run 16-step sequences that can be navigated not just linearly but as Cartesian X/Y coordinates — moving through the 4×4 step grid by row, column, or random position, all triggerable in real time from dedicated inputs.

Each step's CV value is set via encoder either manually or recorded live as the sequencer runs, with all four channels recordable simultaneously or independently. The Zero button clears CV at a step; the Shred button randomises voltage across selected channels — instantly introducing controlled chaos mid-performance without stopping the sequence. An Undo function lets you revert any edits to the previous state.

Up to 16 patterns can be saved and loaded, with 8 fast-access slots for live recall during a set. A trigger output fires on every step advance, and three CV inputs allow external voltage control over X position, Y position, and step advance — opening up complex generative possibilities when driven from other modules.

A deceptively deep sequencer in a very small footprint, equally useful as a pitch sequencer, modulation source, or rhythmic CV generator.

Format: 10HP | 26mm depth | 58mA +12V / 22mA -12V
