Handmade prewired HSH Neodymium Strat pickguard with HB split switch TR BL and mid PU cutoff switch

Copy and paste the following in the YouTube search engine: ASAR SHB UD ZEBRA NEODYMIUM HUMBUCKER SET VIDEO DEMO

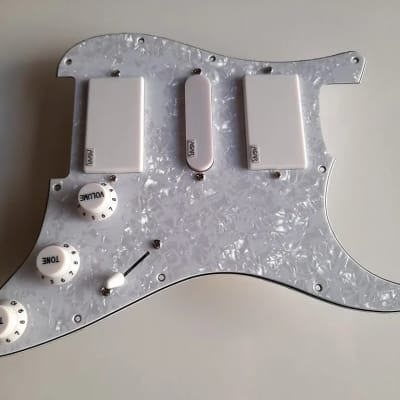

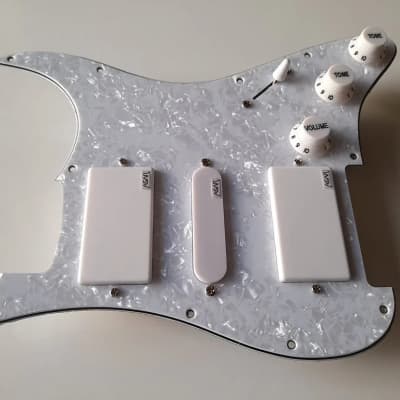

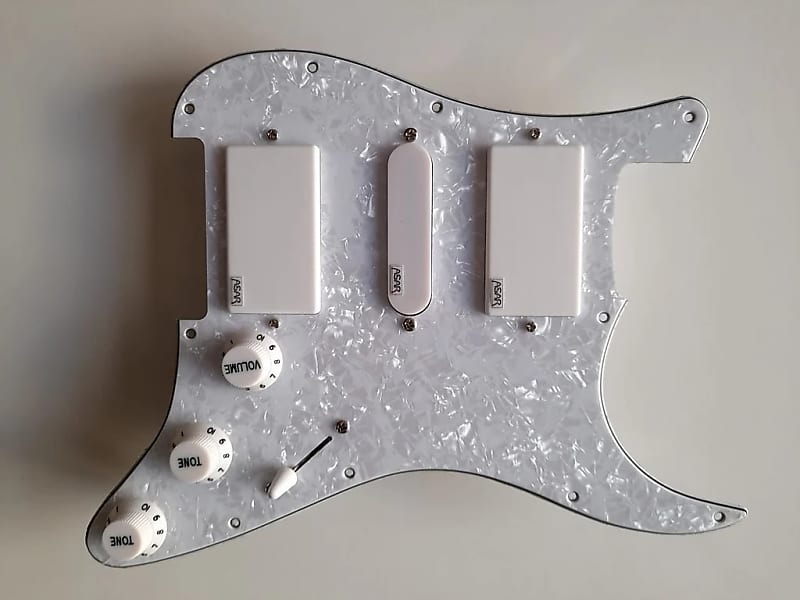

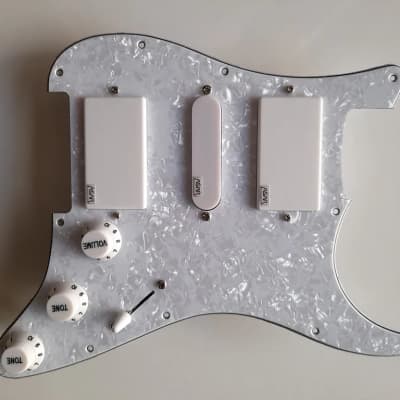

Handmade prewired HSH neodymium Strat pickguard with HB split switch TR BL and mid PU cutoff switch. Closed covers.

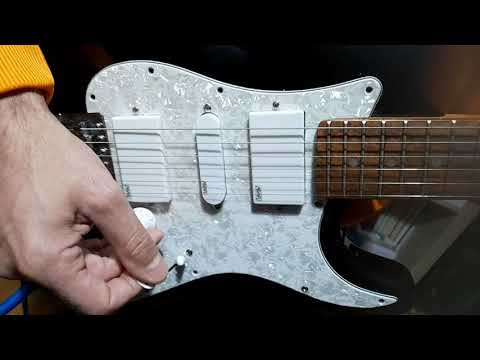

Two (amateur) demo videos are available on my YouTube channel about this type of pickguard.
A video is dedicated to distorted sounds, and is titled:

ASAR HSH NEODYMIUM STANDARD CLOSED COVERS STRAT CUSTOM SHOP LOADED PICKGUARD (DISTORTION)

The other video is dedicated to clean sounds, and is titled (copy and paste on the YouTube search engine):

ASAR HSH NEODYMIUM STANDARD CLOSED COVERS STRAT CUSTOM SHOP LOADED PICKGUARD (CLEAN)

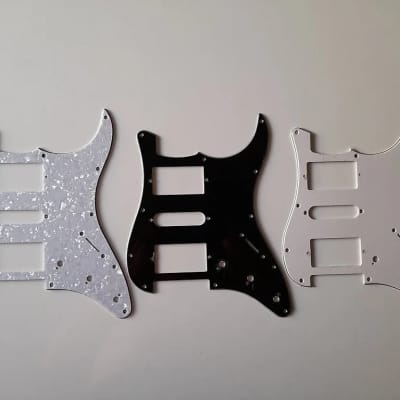

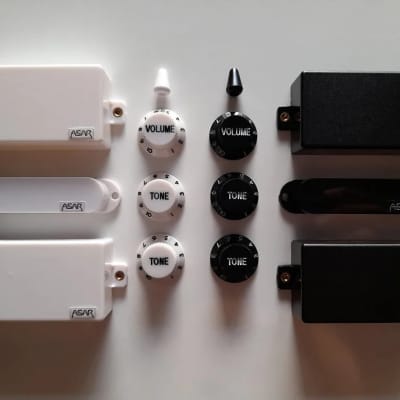

As for the pickguard plate, it is also available in black or natural white, as are the knobs and pickup covers (please see attached photos).

Please note: The pickups installed on this pickguard are designed and handcrafted by myself (signature: ASAR custom amplification & pickups), like the pre-wired pickguard itself.

Model: HSH NEODYMIUM FULL OPTIONAL CLOSED COVERS

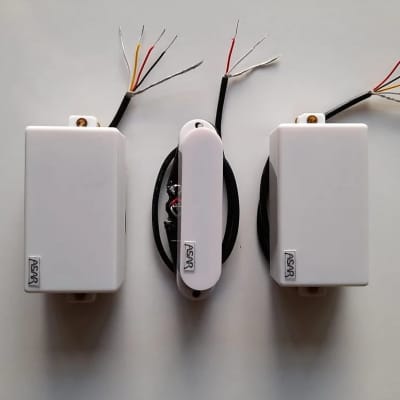

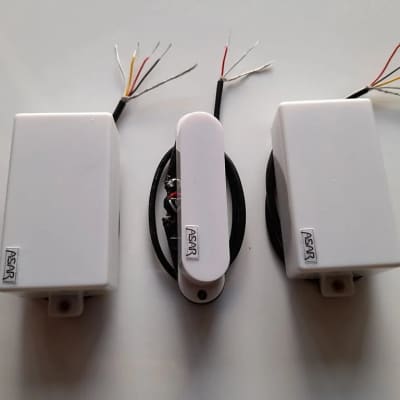

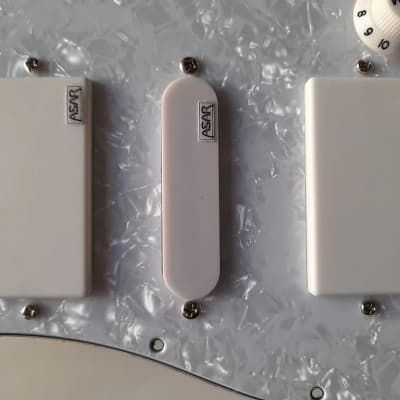

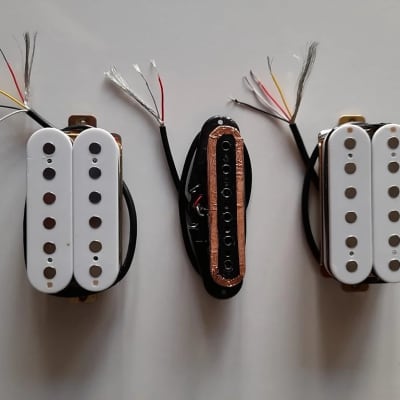

The humbuckers are a SHB-UD CC (Neodymium magnets) model set. The middle Strat single coil is also equipped with neodymium magnets and is designed to be paired with SHB-UD CC humbuckers.

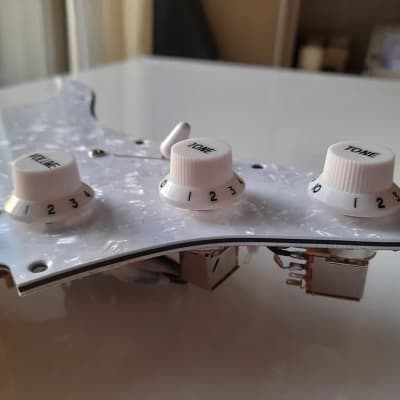

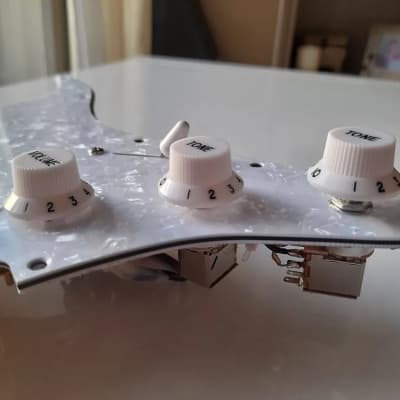

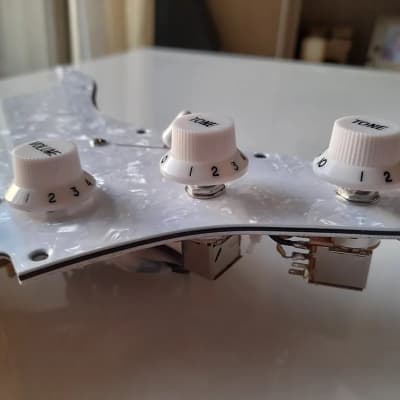

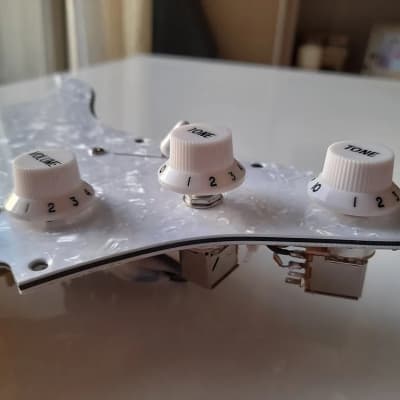

CONTROLS:

- VOLUME (B500K, Alpha), equipped with full range treble bleed (*);

- TONES (both A500K with 10nF / 100V MKP capacitor). The SECOND KNOB acts on the neck humbucker and the middle single coil, while the THIRD KNOB acts only on the bridge humbucker;

- Five-way selector;

- Push-pull switch of the second knob (tone control of the neck HB and middle single coil pickup): by pulling up this knob you get the exclusion of the middle single coil pickup while, at the same time, the neck humbucker and the bridge one will be connected in parallel, regardless of their operating status (ie the position in which the push pull switch controlled by the third knob is held). Once activated this mode, it always maintains the mentioned pickup configuration, regardless of the position taken by the five-way switch.

- Third knob push-pull switch (on the bridge humbucker tone control): by pulling up this knob, both the humbuckers will be split, working with only their NORTH coils operating (i.e. the one facing the middle SC and the one facing the neck). By keeping the knob down, both humbuckers will operate with both their coils connected in series (FULL COIL OPERATION). For further information, please see note (**) at the end of the Ad text.

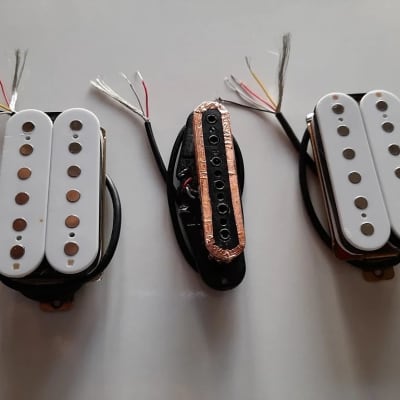

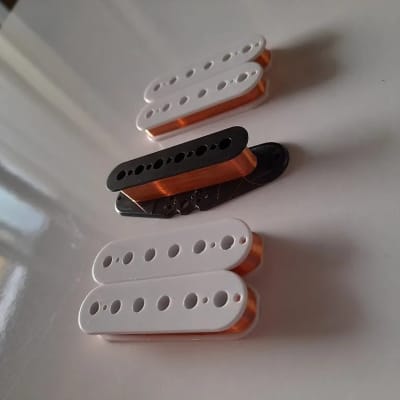

  These pickups were wound and assembled by guiding the wire by hand (AWG 44). Then they were waxed in a paraffin and beeswax bath. Later, EVERY POLE WERE INDIVIDUALLY FITTED WITH A POWERFUL NEODYMIUM MAGNETS SET.

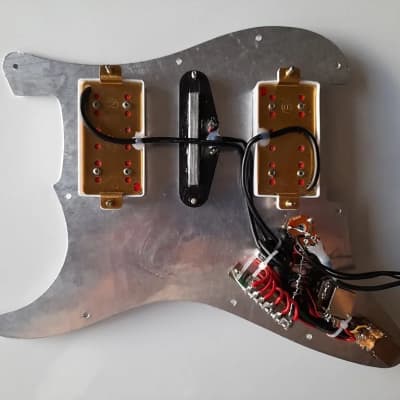

All pickups are equipped with shielded wires. The back of the pickguard is fully shielded with aluminum foil. Consequently, if the guitar body is also properly shielded (for example, by means of an adhesive copper sheet), by installing this pickguard the entire electronics of the guitar will be surrounded by a complete electromagnetic shield.

The series resistances (Rs) of the pickups are the following: NECK humbucker 8.8 Kohm in SPLIT / 16.8 Kohm in FULL COIL OPERATION - MIDDLE Single Coil 8.8 Kohm - Humbucker to the BRIDGE 9.5 Kohm SPLIT / 19.2 Kohm in FULL COIL OPERATION.

The NORTH coil of the NECK HB and the SOUTH coil of the BRIDGE HB are RWRP compared to the other coils.

Shipping by international registered mail.

THIS LOADED PICKGUARD HAS BEEN PERFORMANCE TESTED.
