From Dr. Scientist:

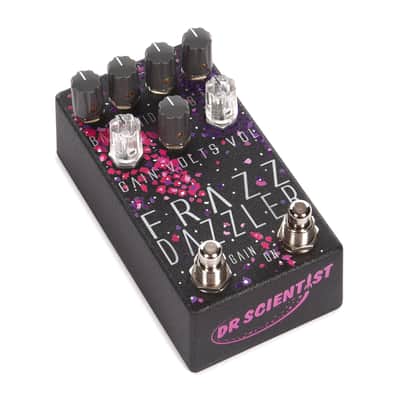

Frazz Dazzler


The Frazz Dazzler is a dual-channel, aggressive fuzz with a wide gain range and a full 3-band equalizer. The Frazz uses a unique circuit topology for extremely high gain even on the low gain channel. The high gain channel offers over-the-top saturation with a built-in noise gate. Both channels make use of a variable regulator for a powerful voltage starve system resulting in a range of sounds from lower headroom/more clipping to glitchy, sub-octave tones. Like all Dr. Scientist pedals, the Frazz Dazzler can be used with guitar, bass, synths, and many other instruments.

Features

• Low and High gain fuzz channels with LED indicator selectable with left foot switch
• Uniquely designed circuit
• Active 3-Band EQ
• Voltage starve control
• High quality analog signal path
• Premium parts and components throughout
• True Bypass with soft touch relay switching
• Full control over wet/dry mix
• Expression pedal control over Mix
• Buffered Input and Output
• Top mounted audio and power jacks
• Designed and handmade in B.C., Canada

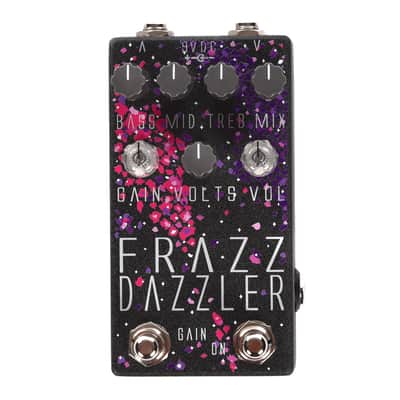

Knobs

• BASS – Adjust the low frequencies
• MID – Adjust the midrange frequencies
• TREB – Adjust the high frequencies
• MIX – Adjusts the balance between the input signal (Dry) and the effect (Wet) signal
• GAIN – Increases the amount of distortion
• VOLTS – Lowers the overall headroom. Produces glitchy, suboctave sounds at the lowest settings. Lower threshold adjustable with internal trim pot.
• VOL – Controls the effect (Wet) signal level
• Gain Footswitch – Toggles between low- and high-gain channels
• Bypass – Engage or disengage the effect

Operation

• 500kΩ/1kΩ
• 100mA @ 9VDC, 2.1mm centre negative plug
• True Bypass with soft touch relay switching

Additional Specs

• Mono input, Mono output, TRS Expression input
• Treble Control: +/-15dB 2nd Order peaking filter centred at 3kHz
• Mid Control: +/-15dB 2nd Order peaking filter centred at 800Hz
• Bass Control: +/-15dB 2nd Order peaking filter centred at 100Hz
• Exp Input: TRS cable, 10kΩ to 100kΩ resistance
• Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
