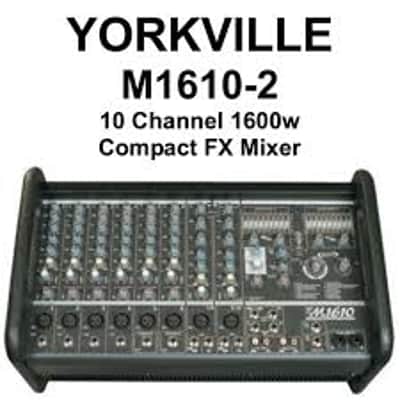

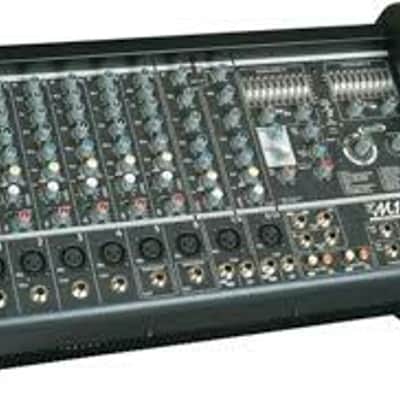

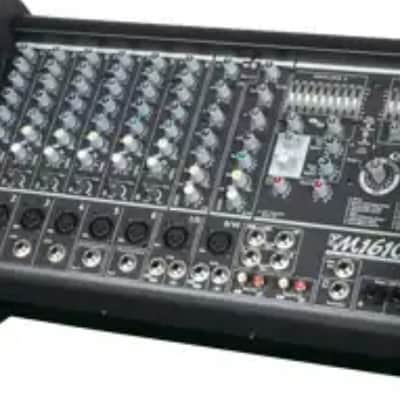

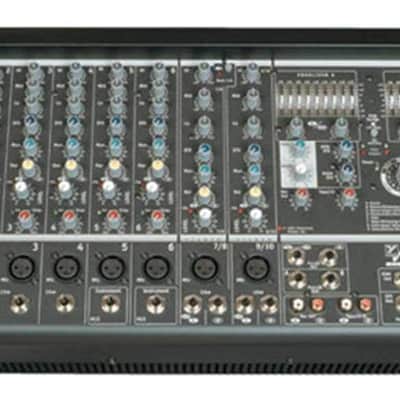

Yorkville M1610-2 | 1600W 12-Channel Stereo Powered Mixer with Effects

Brand New with Full Manufacturer's Warranty!

10+2 channel stereo box mixer, 2x 800 watts @ 4R, 2x9 band EQs plus Lo/Hi Tone controls, clip LED's, SPIN digital EFX processor with variable effects w/FS jack, balanced ¼” & XLR inputs, 6 mono channels (2 w/HiZ instrument inputs), 2 stereo channels plus tape Input with level control, record output with level control, amplifier assignment switch, phantom power and more

2x800w, 10 inputs Mixer/Amp

The convenience, lighter weight and small 'footprint' of a box mixer with the tilt-back visibility and channel control access of a desk mixer makes these new 'wedge' mixers an ideal high power, high quality powered mixer solutions. High-powered high-efficiency class-H power amplifiers, newly designed input strips, on-board DSP, a new, more effective master EQ section and ten very useful and usable input channels complete the new 'wedge' mixer packages.

Overview

The 1600-watt M1610-2 has two integrated 800-watt power amplifiers that can be assigned as stereo mains, or mono main and mono monitor. Each amplifier is attached to an innovative master EQ section designed specifically for these new mixers. The master EQ has a 9-band graphic EQ with additional high and low shelving EQ's at either end of the frequency band. The nine graphic sliders are essentially all of the middle bands of a 15-band graphic EQ with the low and high frequency bands covered by separate shelving controls. This gives the user more control over the feedback-prone mid frequency bands; with high and low tone-shaping frequencies controlled by additional simple +/- 15 dB trim controls.

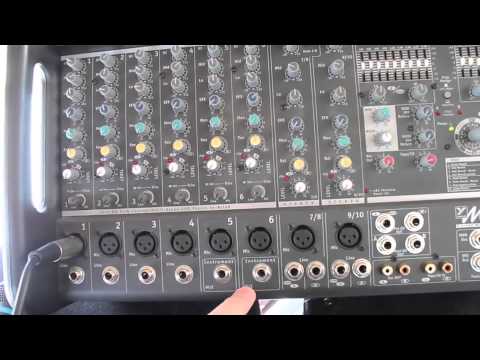

The M1610 has 10 input channels. The first six channels have balanced XLR microphone and TRS balanced inputs, input trim control, three-band EQ, master volume and trim set light. The mono line inputs on channels 5 and 6 are pre-EQ'd for Hi-Z instrument level input, making them an ideal place to start when looking for that perfect live acoustic guitar or direct bass sound. When the input trim level is properly set, users will have ample overall gain while taking full advantage of the new clip elimination circuit which makes it virtually impossible to distort the input of the microphone and instrument channels.

Features

• 10 Channels
• 800 watts per channel @ 4 ohm (Assignable Left/Right or Main/Monitor)
• Gold plated dual contact XLR connectors (all channels)
• TRS balanced inputs (dual inputs for stereo channels 7/8 and 9/10)
• "Set" LED's for easy and proper adjustment of Trim control
• 3 bands of EQ on channel strips

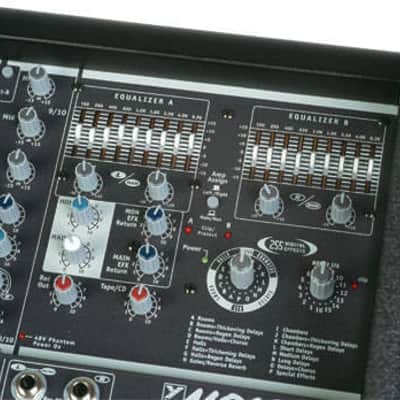

• 9 band graphic EQ for each output with shelving EQ for precise control
• Built in Digital Effects
• Footswitch jack for bypassing effects
• Mute switch (channels 1-8) for quick change-over between band and DJ
• Dual RCA Tape/CD In and Rec Out jacks
• Optional RK1610 rackmount kit (6U)
• Made in Canada

Specs

Number of Channels: 10

Mono Channel EQ: Low, Mid, High

Stereo Channel EQ: Low, Mid, High

Channel Effects: All

Monitors Effects: Yes

Balance Controls: Ch. 7 - 10

Pan Controls: Ch. 1 - 6

Channel Overload Protection: Ch. 1 - 6

Inputs - XLR (bal): 8

Inputs - 1/4": 10

Inputs - RCA (unbal): 1 Pair

Mute Switches: Global 1 - 8

Activity / Solo LED: Trim Set Ch. 1 - 6

Clip / Mute LED: All Channels

Phantom Power: 48V + LED Indicator

Internal Effects: 24 Bit stereo, 16 Effects with Parameter Pot

Auxiliary Sends: Effect - Monitor

Effects Send: Yes

Effects Return: Internal

Effects Return to Main: Yes

Effects Return to Monitor: Yes

Reverb / Effects Footswitch: Yes

Record Outputs: Stereo RCA Pair

Max Gain to Line Out -Mic Input (dB): 84

Max Gain to Line Out -Line Input (dB): 82

Master EQ -1 (type/Channels/Range -dB): Graphic 9 band (160hz-6.3khz) +2 band Shelving

Monitor EQ -1 (type/Channels/Range-dB): Graphic 9 band (160hz-6.3khz) +2 band Shelving

Main Outputs (Line Level): 2 x 1/4inch TRS

Main Amp Inputs (Line Level): 2 x 1/4inch TRS

Monitor Outputs (Line Level): 1 x 1/4inch TRS

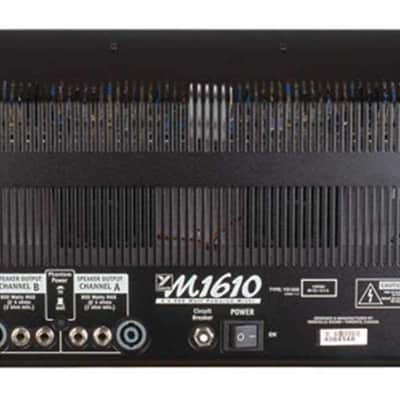

Outputs - Amp A - 1/4" Jacks: 2

Outputs - Amp A - Speakon 4-pin: 1

Outputs - Amp B - 1/4" Jacks: 2

Outputs - Amp B - Speakon 4-pin: 1

Mixer - Signal to Noise Ratio (dB): 101

Mixer - Freq Resp (Tone and EQ Flat,±2dB): 20 - 20,000Hz

Mixer- Input Ref Noise to line out @150 Ohms(dBv): -119

Mixer THD (Main out w/ -10dB input): 0.0001

Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz): 600W

Amp A - Power Output @ 4 Ohms: 800W

Amp A - Power Output -other: 600E @ 2 ohms

Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz): 600W

Amp B - Power Output @ 4 Ohms: 800W

Amp B - Power Output -other: 600W @ 2 ohms

THD - 1kHz (dB): 0.001

THD - 20Hz-20kHz (dB): 0.005

Hum and Noise (un / Aweight -dB): -101

Typical crosstalk -1 kHz (dB-: better than -60db

Input Impedance - Bal/Unbal (Ohms): 20k / 10k ohms

Input Sesitivity (Vrms Sine): 1.4

CMRR @ 60Hz (min/typ): -37db / -60db

Max Voltage Gain (dB): 32

Power Consumption (typ/max): 6.4A @ 60hz / 3.3A @ 50Hz

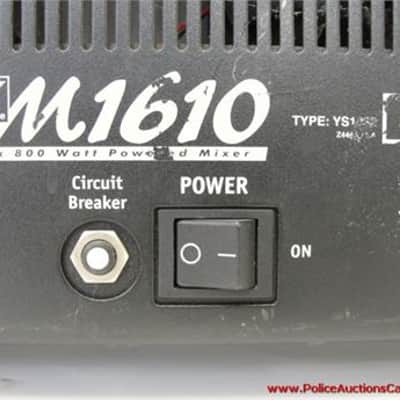

Protection: Thermal, Short Circuit, Current, Clip

Cooling: 2 x 80mm Fans

Transformer Type: Toroidial

Finish: Grey and Black Powder Coat

Chassis Construction: Steel and Aluminum

Rackmount: Yes (Kit Available - 6U)

Other Features: Tiltback or Upright Wedge Angles

Dimensions (DWH, inches): 11.1 x 18.6 x 11

Dimensions (DWH, cm): 28 x 47 x 28

Weight (lbs/kg): 31.3 / 14.2

Specifications subject to change without notice
