NEW old stock! Tested once in shop! PRICE for PAIR!

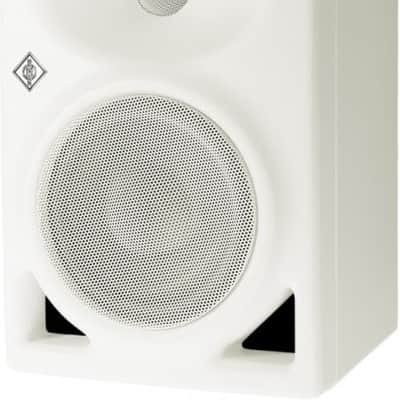

Premium Studio-Monitor-Speakers. Limited white Edition.

2 way bi-amplified monitor with thermally protected 80 + 80 W Class A / B amplifiers. Limit and Clip indicator via LED dimmable logo. Magnetically shielded 1 "titanium / fabric dome tweeter and 5 1 / 2" woofer with a membrane made of sandwich composi

2 way bi-amplified monitor with thermally protected 80 + 80 W Class A / B amplifiers. Limit and Clip indicator via LED dimmable logo. Magnetically shielded 1 "titanium / fabric dome tweeter and 5 1 / 2" woofer with a membrane made of sandwich composite. Tweeter and woofer is protected by wire mesh. Compact, cast aluminum housing with waveguide and integrated front air ducts. Electronically balanced XLR-F input with ground lift and> 10 ohms impedance. Crossover 4th Order and 4-step acoustic controls for Bass, "Low-Mid" and "Treble". Independent Low / High Limit. High level of 111.1 dB at 1 m (3% distortion), passband frequency response 52 Hz - 21 kHz (-3 dB). Self generated <0 dB (A) at 1 m. 95 dB maximum output level of 150 Hz possible - with THD <0.5% at 1 m. Box volume 6.5 liters, Dimensions 277 x 182 x 220 mm, weighing 6.2 kg. Two rear M8 internal thread for attachment of mounting hardware. Standard color: RAL 7021 (anthracite). Neumann is pleased to present you as the latest innovation KH 120 - the first in a new series of Neumann studio monitors. The Studio Monitor KH 120 A is designed as a source speaker or rear speakers in larger multi-channel systems. It embodies modern acoustic and electronic simulation and measurement technologies and guarantees the highest possible sonic precision. The KH 120 A showHNEt off by a Mathematically Modeled Dispersion Waveguide (MMD (TM)), universal acoustic control, analog Class-AB amplifier and an analog input with great headroom and a wide range of mounting hardware. This gives you maximum flexibility in dealing with acoustic conditions, source equipment and sites.

- ACOUSTICS -3 dB free field frequency response: 52 Hz ... 21 kHz, ± 3 dB

- Pass band free field frequency response: 54 Hz ... 20 kHz, ± 2 dB

- Self-generated noise (with input gain set to 100 dB for 0 dBu): <20 dB(A) at 10 cm

- Sine wave output with a THD < 0.5 % at 1 m: 95 dB SPL (>100 Hz)

- Max. SPL In half space at 3% THD at 1m: 111.1 dB SPL (averaged between 100 Hz and 6 kHz)

ELECTRONICS

- Woofer amplifier, cont.(peak) output power*: 50 W (80 W)

- Tweeter amplifier, cont.(peak) output power*: 50 W (80 W)

- Controller design: Analog, active

- Crossover Frequency: 2.0 kHz

- Crossover Slope (dB/oct.): 24, 4th order

- Equalization - Bass: 0, -2.5, -5, -7.5 dB

- Equalization - Mid: 0, -1.5, -3, -4.5 dB

- Equalization - High: +1, 0, -1, -2 dB

- Protection circuitry - Limiter: low, high

- Infrasonic filter frequency - slope: 30 Hz; 6 dB/oct.

- Impedance, electrically balanced: XLR, >10 k[Ohm]

- Input gain control (sensitivity): 0 dBu to -15 dBu

- Output level control: 94, 100, 108, 114 dB SPL

- CMRR: >56 dB @ 15 kHz

DISPLAYS AND MAINS POWER

- Displays and indicators - power on: Neumann logo "White"

- Displays and indicators - limit/clip: Neumann logo "Red"

- Mains Power Supply, voltage-frequency: 100-240 V~; 50/60 Hz

- Power consumption - Idle: 20 W

- Power consumption - Full output AC: 200 W

MECHANICS

- Cabinet surface finish - color: custom Painted aluminium, Anthracite (RAL 7021)

- Operating conditions: +10° C to +40° C (+50° F to +104° F), <90% RH, non-condensing

- Transport/storage conditions: ?25° C to +70° C (?13° F to 158° F), <90% RH, non-condensing

- Drivers: Magnetically shielded

- Woofer: 130 mm (5.25")

- Tweeter: 25 mm (1")

- Mounting points: 2 x M8 on rear panel

- Height x width x depth: 277 x 182 x 220 mm (10 7/8" x 7 1/8" x 8 5/8")

- Internal net volume / external volume: 6.5 liters / 9.7 liters

- Weight: 6.2 kg (13.7 lbs)

- *THD+N <0.1% with limiter deactivated
