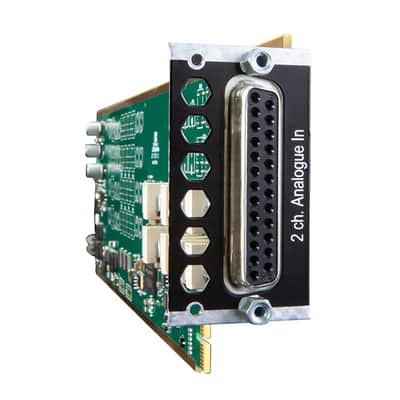

- Plug-in card for the module slot of an MTRX or interface
- Expansion and two analog remote mic/line input channels
- Two remote preamps with up to +70 dB gain
- Relay-based input amplification circuitry
- Equipped with renowned DAD (Digital Audio Denmark) AD converters
- Highly detailed AD conversion with up to 24 bit / 384 kHz
- Optimal for demanding tracking
- Input gain: -18 to +70 dB in 0.1 dB steps
- max. input level from 9 dBu to 30 dBu in 0.1 dB steps
- Equivalent input noise Mic Pre: < -133 dBA
- Sampling rate, resolution PCM: 384 kHz, 24 bit
- DSD sampling rates: 2.8224 and 5.6448 mHz (64 and 128 fs)
- THD+N (A): < -117 dB @ -3 dB FS / 0.00014%
- Crosstalk: < -120 dB
- Input impedance: > 10 kOhm
Avid's MTRX 2 Mic / Line Pristine AD card is an expansion card designed specifically for the Pro Tools MTRX or MTRX II audio interface and offers two high-quality preamps and analogue line inputs. In addition to the extremely low-noise and transparent preamps, it also contains high-quality DAD (Digital Audio Denmark) AD converters. These are regarded as top products on the market and are characterized by a particularly clean, transparent and detailed sound. The two remote-controlled preamps offer up to +70 dB gain, and the DAD converters offer highly detailed AD conversion with up to 24 bit / 384 kHz.
All centrally controlled via the DADman softwareThe relay-based input amplification circuit ensures the shortest possible signal path. The preamps can be controlled remotely via the EUCON-capable DADman software. DADman can also be used to set one of the inputs as a talkback source. The cut and dim options for each output can also be activated via DADman.
