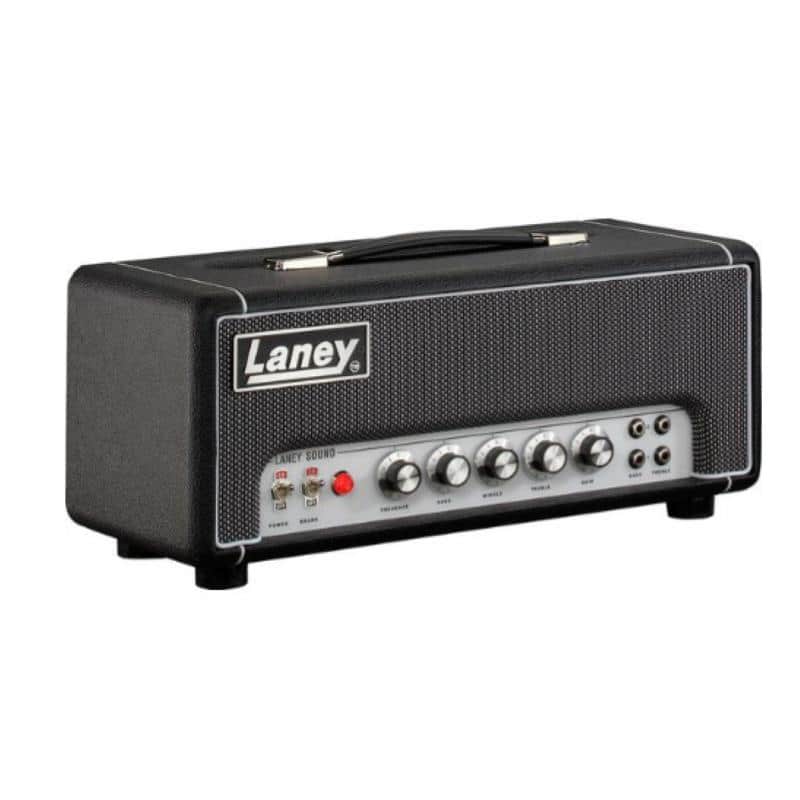

LA-STUDIOSUPERGROUP TUBE AMP | TWO NOTES TECHNOLOGY
MODERN VINTAGEThe infamous 1967 Laney SUPERGROUP amplifier reimagined in a studio format and fused with cutting edge technology.
HI-FIDELITY, LOW VOLUMEThe LA-STUDIO is an Impulse Response loaded, 3W or <0.1 Watt version of the critical acclaimed LA30BL head. Loaded with a full Two Note Torpedo module, the LA-STUDIO is a real tube amp with all the benefits and ease of use of a digital PLUGIN. Real hot tubes, real hot tone, real feel and real dynamics. The LA-STUDIO is a REAL PLUGIN.
REAL TUBE AMPFeaturing 3 ECC83 Large Plate pre amp tubes and a 12BH7 Power Tube, the LA-STUDIO is a classic 3 Watt all tube head with some surprises up its sleeve.
KEY FEATURESLow Power Class AB Tube power stageIntegrated Two Notes Torpedo, Emulated DI outIntegrated high quality reactive load for silent cabinet free operation.Equipped with a brake switch. When engaged, the Brake reduces the output from 3W RMS to 0.1W RMS. Low volume without
1969. The year Heavy Metal was born. Integral to that explosion of power and attitude was a humble guitar amp in the hands of the one-and-only Mr Tony Iommi. The amp? The Laney Supergroup.The LA100BL Supergroup was unleashed on the world in 1967; while everyone elsewas celebrating the summer of love, Laney had visions of the future – a future birthedfrom the tonal prowess of Tony. Several reissues and special editions later, we fastforward to 2022 and that very same amp is back; better-than-ever and retrofitted with everything the modern player demands.
Introducing the LA-STUDIO, a 3W fully featured, tube driven tone machine. Based on the now legendary LA30BL head, it’s driven by 3 ECC83 preamp tubes and a single 12BH7 power tube. Of course, there’s a fully reactive load box built-in to guarantee totally silent operation at home too.Not only that we’ve partnered up with Two notes, world leaders in cabinet emulation, to include their Torpedo technology to make this a tool at home in any studio, home and even live on stage.The LA-STUDIO, all the classic looks, tone and feel of a truly vintage style and sounding head but filled with cutting edge technology. The LA-STUDIO offers you real hot tubes, real hot tone, real feel, and real dynamics.
Why the LA-STUDIO.
The LA-STUDIO is a vintage designed low wattage, great sounding tube amp, something we are very proud of. The LA-STUDIO’s design comes from a heritage of amp design where everything about building an amp was done in the pursuit of tone.
Vintage amps have a particular sound and feature set to them which we have stayed faithful to. The LA-STUDIO is a very straight forward amp – a single channel, no reverb, no FX loop and just the right amount of gain to be driven to the edge of breakup then pushed over the edge into glorious tube distortion by your favourite drive pedals, sat where they should be on the floor in front of your amp.So why no FX loop? To build an FX loop into a guitar amp you must break the signal path at a convenient point to insert the FX loop. The unique and pleasing tonal character of a vintage amp comes from the interaction between a preamp and the power amp and having nothing in-between to break that interaction produces the best tone – full stop.
The LA-STUDIO is primarily designed for use in a recording studio and in particular a home recording set-up. In most modern recording situations, effects are added within a DAW. So, the fact that the unit does away with an FX loop in the pursuit of the ultimate tone is not an issue when it comes to using FX.
Tone is everything.
TWO NOTES TORPEDOTo bring the Supergroup feel to the modern player Laney has partnered with Two notes to include a fully integrated Torpedo module. Letting you capture all the glorious tone of the LA-STUDIO driven hard with all the dynamic response you expect from a high quality, all tube amp but without the need to connect a physical cabinet.The LA-Studio ships with 6 curated pre-loaded presets using two Laney DynIR cabinets. They are available via the XLR out without any need to use a PC or any apps. Though if you want further control, we offer that!What is DynIR you ask? The magicians are Two notes have taken the art virtual cabinet simulation to an entire new level. With the DynIR and the Torpedo Remote software you can take total control over the cabinet type, the virtual characteristics of the cabinet environment and the microphones used to capture the cabinets sound. Giving you the ultimate control of your amps output whether that going into your DAW or directly to the front of house on stage. You never need to mic a cabinet again to get the perfect sound every time.
CONTROLSLA-STUDIO FRONT PANEL• POWER SWITCHo Usually, you must make sure your amp is connected to a load beforeturning on. However, the LA-STUDIO has an internal reactive load makingit possible to run without anything connected to it.• BRAKE SWITCHo When engaged the Brake reduces the output of the LA-STUDIO from 3W RMS to 0.1W RMS. This is perfect for driving the LA-STUDIO hard without producing excessive sound levels.• POWER INDICATORo Indicates that the amplifier is powered up.• PRESENCEo Boosts the upper mids and highs within the output section. Should be adjusted to yourpersonal tastes, set to ‘0’ is a good starting point. • BASSo Adjusts the low-end response of the signal. Turning it clockwise increases the amount of bottom-end, giving you a fuller tone. As the amplifier is driven harder and louder you may find the need to dial out a little bass to stop it getting muddy. In most cases, depending on the guitar you are using ‘5’ is a good starting point.• MIDDLEo Adjusts the mid frequency response of the signal. Adjusts the midrange. Turning itclockwise increases the amount of mids. Turning it anti clockwise will reduce the mids and produce a more mid-scooped sound. In most cases, depending on the guitar you are using ‘5’ is a good starting point.• TREBLEo Adjusts the high frequency content of the signal. Turning it clockwise increases theamount of top-end, giving your tone clarity and brightness. Turning it anti clockwise will produce a warmer sound, ideal for dialling in smooth warmer tones. In most cases, depending on the guitar you are using ‘5’ is a good starting point.• GAINo Adjusts the level of Gain/Distortion present in the signal. Also contributes to the overall listening level of the amplifier.• BASS INPUT HIo Has a neutral frequency and is great for pedals and boards.• BASS INPUT LOo Has the same tonal characteristics as Bass Input 1 but with a lower gain setting.• TREBLE INPUT HIo Has an accentuated high-end response.• TREBLE INPUT LOo Has the same tonal characteristics as Treble Input 1 but with a lower gain setting.Channel jumpingIt is possible for a player to mix the tonal and gain characteristics of each input on the LA-STUDIO by what is known as channel jumping. To do this simply choose the initial channel you want to use. Let’s say the Bass Input 1, connect your guitar as normal. Now using a regular patch cable connect Bass Input 2 to an input on the treble channel. Choose input 1 or 2 depending on how much gain you want. The result, you have more treble in your signal without losing the bass response generated by the Bass Input. Channel jumping can produce some great sounds so do not hesitate to experiment. • GROUND LINKo The ground link switch will isolate the ground on the LA-STUDIO should you encounterany ground noise/Ground Loops from any other equipment you have connected via theXLR out.• XLR BALANCED OUTPUTo The balanced output XLR jack is a direct output from Two notes Torpedo Embedded. By connecting this output to front of house or an audio interface you cancapture LA-STUDIO’s tone with no need for a cabinet or microphone.o To run the output of the LA-STUDIO to an external device, connect to your audio interface or PA with a good quality XLR cable. Set the amplifier up the way you intend to play, (EQ, volume) and then adjust the output of the balanced out using the LEVEL control.o Set the parameters of the audio interface/PA to get your desired sound. • HEADPHONE SOCKETo The headphone jack on the LA-STUDIO comes directly from the Two notes output! This allows you to use the amplifier with any of the selected virtual cabinet settings through your headphones. By utilizing the built-in reactive load, you can play the amp with no speaker using only the headphone jack as the output for quiet playing and silent recording.• VIRTUAL CABINET SELECTORo This 6-position selector switch lets you to select which of the first 6 Two notes presets isactive on the XLR out. See TWO NOTES TORPEDO• LEVELo Sets the level of signal sent to an external device connected to the XLR balanced output and to the headphone output.• PEAK INDICATORo Shows when the output from the Two notes Torpedo Embedded is clipping. If the PEAKindicator lights up it is recommended that you back off the LEVEL control until the PEAK indicator is no longer illuminating.• USB CONNECTORo The USB connector allows you to connect your computer to the LA-STUDIO and accessthe Two notes Torpedo Embedded software. Using a good quality USB cable, you can connect to the Two notes Torpedo Embedded software which will enable you to edit the presets loaded in the Virtual Cabinet section of the LA-STUDIO, modify the presets, create new ones from scratch, or load your own third-party Impulse Responses! See TWO NOTES TORPEDO• MIDI INo Connect the MIDI out of a MIDI equipped device to allow cabinet pre-set switching viaMIDI Program changes (MIDI PC) and specific parameter control via MIDI Control changes(MIDI CC). See MIDI• Midi OUT/THRUo Should be used to connect additional midi equipped devices downstream of the LA-STUDIO.• SPEAKER SOCKETS (16 Ohm & 8 Ohm)o 2 x 1⁄4” mono jack sockets are provided for connecting either an 8 Ohm cabinet or a 16Ohm cabinet. Since the LA-STUDIO is designed to be used silently in the Home/Studio environment it features a high-quality reactive load attenuator, so it is not necessary to connect a speaker cabinet to the unit when using just the D.I out or headphones.
PRESETSThe LA-Studio comes with 6 curated pre-loaded cabinets, these are:• Preset 1 - STUDIO A – The LA412 in a dry and intimate studio environment • Preset 2 - STUDIO A – The LA212 in a dry and intimate studio environment• Preset 3 - HALL A – The LA412 in a bright medium sized venue. • Preset 4 - HALL B – The LA212 in a classic concert hall, with warm reverb• Preset 5 - PLATE – The LA412 with a large plate reverb, vintage, and huge sounding • Preset 6 - CATHEDRAL – The LA212 in a tiled cathedral, ethereal and angelic ambience
Each of the 6 presets is modelled around two Laney cabinets expertly measured and converted to DynIR’s by Two notes. These cabinets included with the LA-Studio are:• Laney LA412o An authentic replica of the original 1969 cabinet. An oversized 4x12” cabinet loaded withfour Celestion G12H 75Hz.• Laney LA212.o The classic 2x12” offset cabinet of the early 2000’s. A pair of matched Celestion G12M-25 Greenback gives both vintage and modern tones.In addition to the 6 pre-loaded presets, the LA-STUDIO comes loaded with an extensive library of additional Two notes virtual cabinet Dyn IRs, consisting of the following options which are accessible via the USB app.To access these addition cabinets, you first need to visit and download then install the latest TORPEDO REMOTE software.With the LA-STUDIO connected via USB and turned on open the Torpedo Remote software.The Software will recognise your LA-STUDIO and you will then be directed to log in as a “Guest” or “Register” your unit by creating an account. If you decide to create an account, you will be rewarded with the addition of 2 bonus DynIRs to your account – see below for details.Your LA-STUDIO comes with 8 additional high quality DynIR’s courtesy of Two notes. These are: -• Brit 65C (Marshall 4x12)• GreenArtO (Marshall 4x12)• Free Rock (VHT 4x12)• Eggbeater (Egnater 2x12)• Radcat 25W (Badcat 4x12)• Voice Modrn (Vox AC30)• Watt FanO (Hiwatt 2x12)• Tanger 30C (Orange 2x12)As a reward for creating a Two notes account and registering your LA-STUDIO you will also receive 2 BONUS Dyn IR’s. These are: -• SilverJen (Fender Twin with Jensen Speakers)• Calif StdC (Mesa 4x12 recto).You can change the virtual cabinets and edit all their options and save them to your Two notes account for future use. Whilst your LA-STUDIO is connected to your Torpedo Remote software you can change any of the cabinets in the 6 pre-load slots on the LA-STUDIO by simply moving thecabinet of your choice into the relevant slot on the LA-STUDIO.NOTE: If you’re using MIDI you can access up to 128 cabinets presets live!
MIDIEach pre-set on the LA-STUDIO has a single program number. Preset 001 is recalled with MIDI PC 1, and you can recall the 128 virtual cab pre-sets with MIDI PC 1 through MIDI PC 128 in thismanner. This allows real time switching of pre-sets, for example when the player switches from a clean tone to a lead tone, he can switch from a 2 x12 cabinet to a 4 x 12 cabinet at the same time.MIDI CC - Control Change - For more advanced applications the use Control Change signals may be appropriate.In most normal applications MIDI PC signals (virtual cabinet pre-set recall) for the LA-STUDIO will be suitable. But in more specific and advanced situations direct control of the parameters listed below can be achieved by MIDI CC commands.Consult the table at the end of this manual that indicates the Control Change (CC) numbers for every parameter, as well as their range and behaviour.
SPECIFICATIONS
Nominal Supply Voltage 100V~, 120V~, 220-240V~ Factory set
Mains Fuse100-120V~ = T500mA L 250V, 220-240V~ = T250mA L 250V
Output Power3W / 0.1W in Brake Mode
Power Consumption 40W
Preamp Tubes3x ECC83 Large Plate Preamp Tubes
Output Tube1x 12BH7 Power Tube
Inputs CH1, Bass & Treble Input Sockets (Input Impedance 1Mohm, Sensitivity 15mV) CH2, Bass & Treble Input Sockets (Input Impedance 140Kohm, Sensitivity 30mV) Midi In 5 pin DIN
Outputs USB Type A, to control Two Notes (Two Notes uses 24 bit, 96kHz AD-DA)1x8 & 1x16 ohm speaker outputsMidi Out/Thru 5 pin DINPhones Out Stereo 3.5mmBalanced DI Out, Male XLR (With Two Notes emulation) and Ground Lift switch Bass, Middle, Treble, Presence, Gain,
Controls Power Switch, Brake SwitchVirtual cabinet 6W selector switch
Other Peak led, for Two NotesRugged plywood construction covered in hardwearing black vinylFull internal reactive load for silent operation without a cabinet
Unit dimensions (HWD) 229 x 520 x 200 mm (9" x 20.5" x 7.9")
Net Weight7.8Kg, 17.2 lbs
Price$1,099
