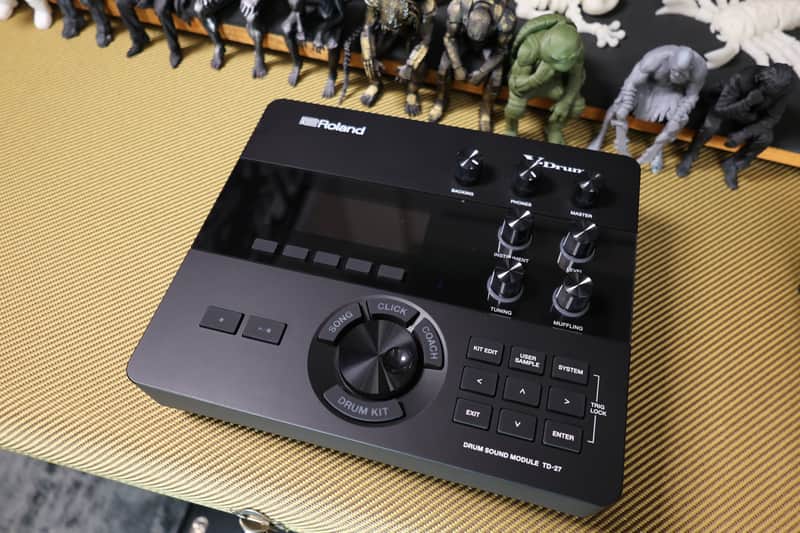

One Scratch on the Screen as Photographed

The TD-27 V-Drums module is loaded with the finest acoustic drum sounds you've ever heard. Roland's Prismatic Sound Modelling produces drums that not only sound exceptional, but also respond just like real acoustic instruments when you play them. Advanced digital trigger inputs support Roland digital pads for unmatched expression, while new PureAcoustic Ambience Technology offers a variety of inspiring drumming spaces at the touch of a button.

A wide selection of electronic sounds from Roland's rich sonic history are also included, providing must-have sounds for modern styles. And by loading and layering your own samples with internal drums, you're able to craft sounds that no other drummer can claim.

Features
• Advanced sound module with Prismatic Sound Modelling derived from the flagship TD-50
• Three digital trigger inputs for advanced Roland trigger pads like the 14" PD-140DS digital snare and 18" CY-18DR digital ride cymbal
• Hands-on interface for quick-and-easy selecting and personalising drum sounds
• Drum in inspiring sound spaces with newly developed PureAcoustic Ambience Technology
• Overhead mic simulator and studio-level effects for processing drum sounds
• Import your own WAV samples via an SD card
• Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
• Integrated 28-channel USB audio interface for professional computer music production
• Multi-pin trigger jack and included cable for connecting with a standard V-Drums pad setup
• Dedicated Crash 2 trigger input and three auxiliary trigger inputs for easy kit expansion
• Onboard Bluetooth for drumming with music from a smartphone or laptop
• Built-in practice functions for developing drumming skills

TD-27 Drum Module Specifications

Drum Kits
- 100 (Preset: 55)

Instruments
- 728

User Sample Import
• Number of User Sample: Maximum 500 (includes factory preloaded user samples)
• Sound Length (total): 24 minutes in mono, 12 minutes in stereo
• File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

Effect Types
• Pad Compressor: each pad
• Pad Equalizer: each pad
• Overhead Mic Simulator
• Room/Reverb
• Multi-Effects: 3 systems, 30 types
• Master Compressor
• Master Equalizer

Bluetooth
- Supported standards: Bluetooth Ver 4.2
- Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
- Codec: SBC (Support to the content protection of the SCMS-T method)

Song Player (SD Card)
File format: WAV (44.1 kHz, 16/24 bits), MP3 *1

Recorder
• Recording Method: Realtime
• Maximum length: 60 min (temporary recording: 3 min) *2
• File format: WAV (44.1 kHz, 16 bits)

Display
Graphic LCD 256 x 80 dots

External Memory
SD Card (SDHC supported)

Connectors
• Trigger Input Connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) *3
• Trigger In Jack x 4: 1/4-inch TRS phone type (CRASH 2, AUX1, AUX2, AUX3) *3
• Digital Trigger In Port x 3: USB A type
• Master Out Jacks (L/MONO, R): 1/4-inch phone type
• Direct Out Jack x 2 (MONO): 1/4-inch phone type
• Phones Jack x 1: Stereo 1/4-inch phone type
• Mix In Jack x 1: Stereo 1/4-inch phone type
• MIDI (in, out/thru) connectors
• USB Computer Port x 1: USB B type
• Foot Switch Jack x 1: 1/4-inch TRS phone type
• DC In Jack

USB Computer
• Speed: Hi-speed USB
• Driver mode: Generic, Vender
• Protocol: USB MIDI, USB Audio *4

USB Audio
• Sampling Rate (original): 44.1 kHz
• Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
• Record: 28 channels
• Playback: 4 channels

Power Supply
AC adaptor (DC 9 V)

Current Draw
770 mA

Accessories
- Quick Start
- AC adaptor
- Special connection cable
- Leaflet "USING THE UNIT SAFELY"
- Sound module mounting plate
- Wing bolt (M5 x 10) x 2

*1 Audio files must be saved on an SD card.
*2 Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 3 minutes.
*3 Exclusion use with digital pad.
*4 USB Audio is required the using vender driver and switched vender mode.
