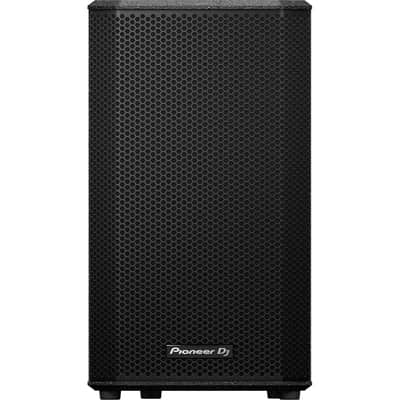

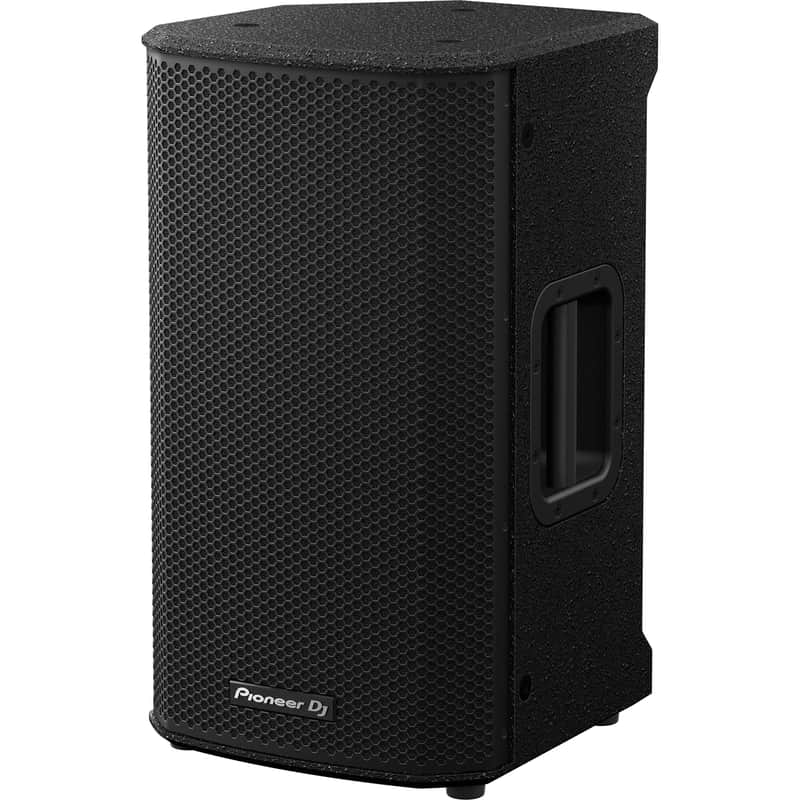

The Pioneer DJ XPRS102 is a 10" 2-way active PA speaker from the XPRS2 Series, delivering 2000W peak through a Class D amplifier with a maximum SPL of 129 dB. Built-in DSP provides 4 factory presets (Live, Music, Speech, Monitor) plus 16 user-nameable presets, eliminating the need for external processing in most live sound applications.

Driver Configuration

A 10" woofer with a 2.5" voice coil handles low and mid frequencies, while a 1" exit compression driver (1.75" voice coil) on a rotatable horn covers highs. The horn can be rotated 90 degrees for horizontal cabinet orientation (stage monitor position) without losing consistent coverage.

I/O & DSP

• Ch 1: Combo XLR/1/4" (Mic/Line switchable)
• Ch 2: Combo XLR/1/4" (Hi-Z/Line switchable)
• Ch 3: 3.5 mm stereo mini jack
• Output: XLR mix out (daisy-chain to additional speakers)
• DSP: 4 factory + 16 user presets, 2-band EQ per channel

Specifications

• Amplifier: Class D, 2000W peak
• Frequency response: 50 Hz to 20 kHz
• Max SPL: 129 dB
• Coverage: 90 x 60 degrees (H x V)
• Cabinet: Plywood
• Power: Universal 110-240V (50/60 Hz), 800W consumption
• Mounting: 35 mm pole socket, M10 flypoints
• Sold individually
