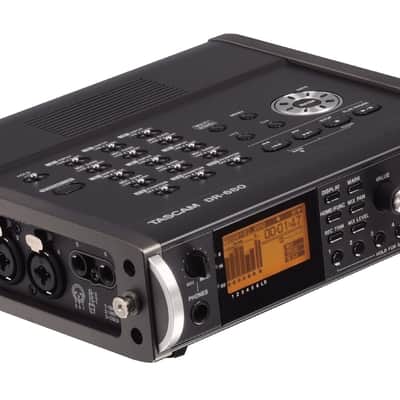

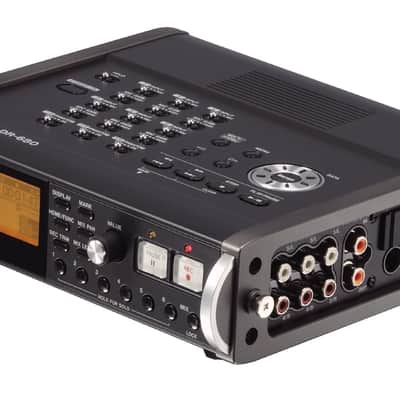

TASCAM DR-680 8-Track Portable Audio Recorder

Brand New Open Box Unit (or Display/Demo Unit)

ASCAM's DR-680 brings multi-channel portable recording within reach of any musician for polished live, location and surround recordings. Up to eight tracks can be recorded to solid-state SD card media at 96kHz/24-bit Broadcast WAV quality. Six mic inputs provide phantom power and 60dB of gain for great-sounding recordings with your condenser microphones. Record the six microphones along with a digital S/PDIF source for 8 track recording. Each mic input has a selectable low cut filter and analog limiter for optimal sound.

Inputs can be monitored using a built-in mixer with level and pan controls for each input. The stereo mixdown can even be recorded along with the six mics for quick stereo playback of the event. There's even a built-in speaker to check recordings without headphones.

In addition to WAV recording up to 96kHz, the DR-680 captures stereo audio at 192kHz/24-bit for audiophile-quality masters. The DR-680 records up to four channels of MP3 audio for web-ready recordings. Two of the recorders can be connected with a cascade cable for up to 14-track recording on battery power.

Multi-channel portable recording has never been as simple or affordable as the TASCAM DR-680

Features:

• 8-track portable recording
• Record eight individual inputs or six inputs plus a stereo mixdown
• Up to 96kHz/24-bit Broadcast WAV file resolution for 8 channels
• Stereo 192kHz/24-bit recording mode
• 4-channel MP3 recording

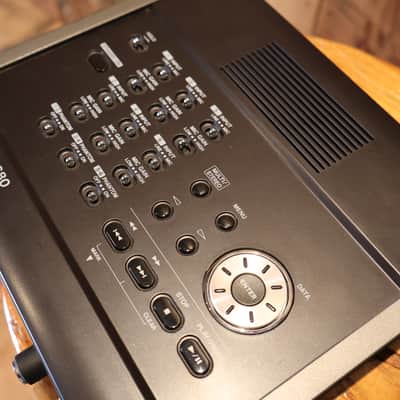

• Digital monitor mixing (level and pan) with recordable stereo mixdown
• Mid-side microphone decoding, either during recording or monitor/mixdown
• Ganged input option for use with stereo microphones
• Ideal for surround music and effects recording
• Cascade function for running two units together
• Pre-recording feature
• Auto-recording mode begins recording when the input reaches a certain level
• Mark function during recording/playback
• Edit functions such as divide and delete

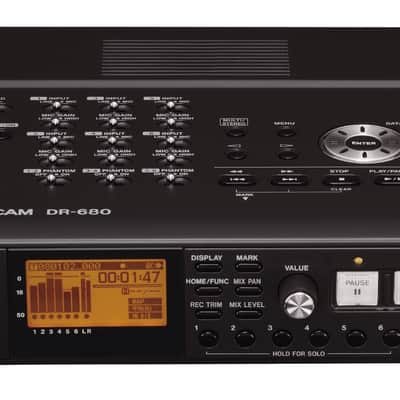

• 128x64 backlit LCD display
• Powered through (8x) AA batteries or (included) PS-1225L adapter
• Records to SD/SDHC card media (not included)
• Premium AKM Audio4Pro™ 192kHz A/D converters with over 100dB signal to noise ratio

Physical specifications:

• (6) mic pres with 60dB of gain and phantom power

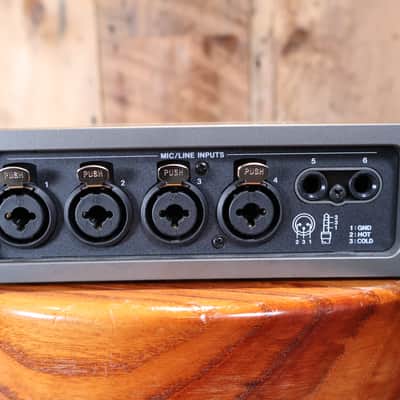

• (4) XLR/1/4" (combi) mic/line inputs and (2) TRS 1/4" mic/line inputs
• Low cut filter and limiter on each input

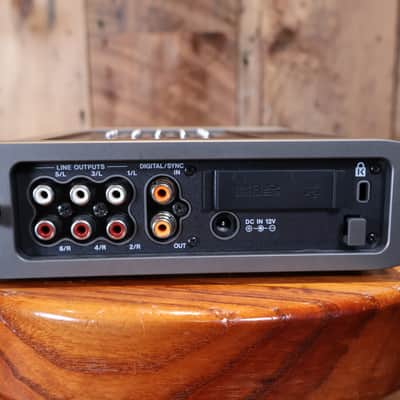

• (6) RCA unbalanced line outputs
• S/PDIF digital in and out
• USB 2.0 (mini B) connection for computer
• Built-in speaker

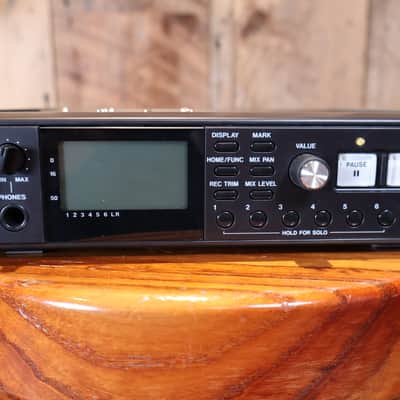

• 1/4" stereo headphone output

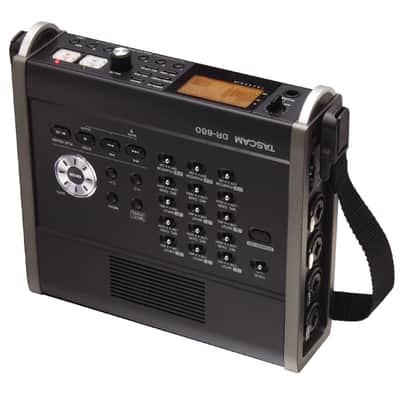

• Included accessories: PS-1225L power supply, shoulder strap
• Dimensions: 7.95" W x 2.12" H x 6.93" D (202mm x 54mm x 176mm)
• Weight 2.65 lbs (1.2kg) without batteries

______________________________________________________________________________

***  There will be an extra fee already included in the shipping price for items shipping to the USA that are worth more than $2500 CAD/$2000 USD and are subject to Customs ***

*** All wood and orchestral instruments will be insured and this will already be included in the shipping price of the item and up to $5000.00 for liability coverage ***

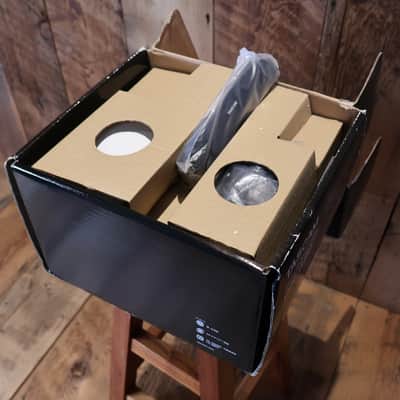

All musical instruments we sell have been checked and adjusted for playability. Most items are BRAND NEW OPEN BOX condition. The pictures in the listings are of the actual item so please have a look for an idea of the cosmetic condition. As some of the items are Used instruments or New Open Box they may or may not have some scratches or minor wear to the finish unless it is marked as BRAND NEW FACTORY SEALED UNIT.
