please note: includes expander

Not in original package

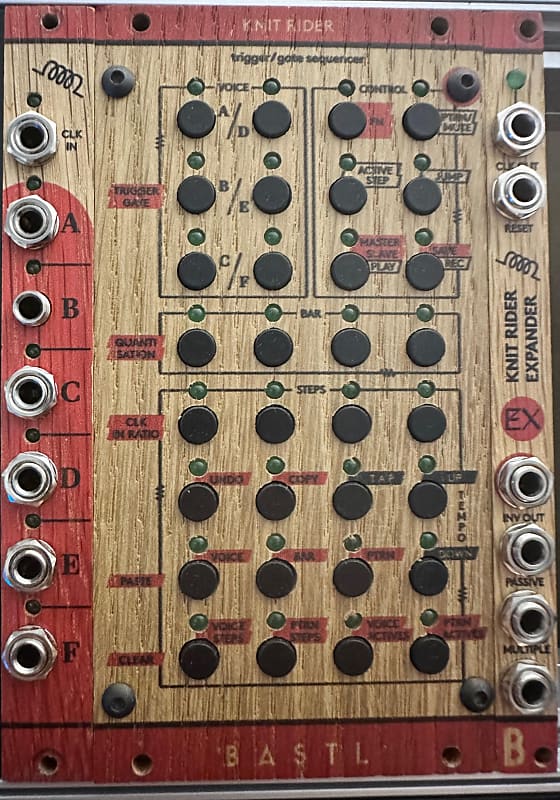

Knit Rider is a very versatile 6 voice trigger sequencer with a fast, modern workflow. There are 4 bars in one pattern, every bar has 16 steps, each of which has 4 sub-steps, which makes it 256 steps per pattern. And there are 64 patterns in total ! This allows you to create very detailed patterns while retaining the intuitivity and speed of classic 16 step sequencers. Use the bar buttons to navigate inside the 4 bars. Hold a certain step – the bar buttons will now show the substeps in that step – press the bar buttons to edit the substeps.

Easily record sequences by tapping the voice buttons

Active step feature allows you to set any number of steps you want to have independently for each voice (or for all voices at the same time). You can also deactivate individual steps in the middle of a sequence. All voices have mute feature and can be set to be in trigger or gate mode. You can also record the sequences by tapping on the voice buttons with adjustable quantisation. Jump feature allows you to repeat certain step of the sequence for all voices which is great for performance and non-linear playback of patterns. Knit rider can by master or slave when it comes to tempo and you can set the clock input ratio (it one clock is 1 substep, 2 substeps, 1 step or 2 steps). There is also FN button which gives you access to additional features for fast and effective workflow.

Features

  • master or slave tempo – selectable slave tempo ratio
  • 6 voices with individual outputs – each can be set as trigger or gate
  • pattern has 4 bars each has 16 steps
  • each step has 4 sub steps (total 256 steps/pattern)
  • 64 patterns
  • simple and fast real time editing
  • record function with quantisation settings
  • play / stop button (for sync in slave mode)
  • mute function for each voice
  • jump function (repeats certain step)
  • adjustable master tempo by tap or up, down (by 2 bpm)
  • active step – sets how many steps there are for each voice or for all instruments – possible to deactivate individual steps
  • saves everything on microSD card (accessible from the back side)
  • copy and paste functions for fast workflow (paste for voice, bar or pattern)
  • clear function (for one voice, all voices, active steps in one voice, all active steps)
  • undo function takes you back to the moment when you saved last time
  • 5 volt outputs
  • handmade in Brno, Czech republic
  • front panel either aluminium or oak wood with handmade custom knobs
  • add reset jack + clock out & more with a 2hp Knit Rider Expander

Technical details

  • 16 HP
  • 35mm deep (skiff friendly)
  • current +12: <35mA
  • PTC fuse and diode protected 10 pin power connector


Listed9 months ago
ConditionMint (Used)
Mint items are in essentially new original condition but have been opened or played.Learn more
Brand
Model
  • Knit Rider 6-Voice Trigger / Gate Sequencer
Finish
  • Wood
Categories
Year
  • 2013 - 2020
Horizontal Pitch
  • 16HP
Synth Module Function
  • Sequencer
  • Trigger
Modular Synth Format
  • Eurorack
