About this listing

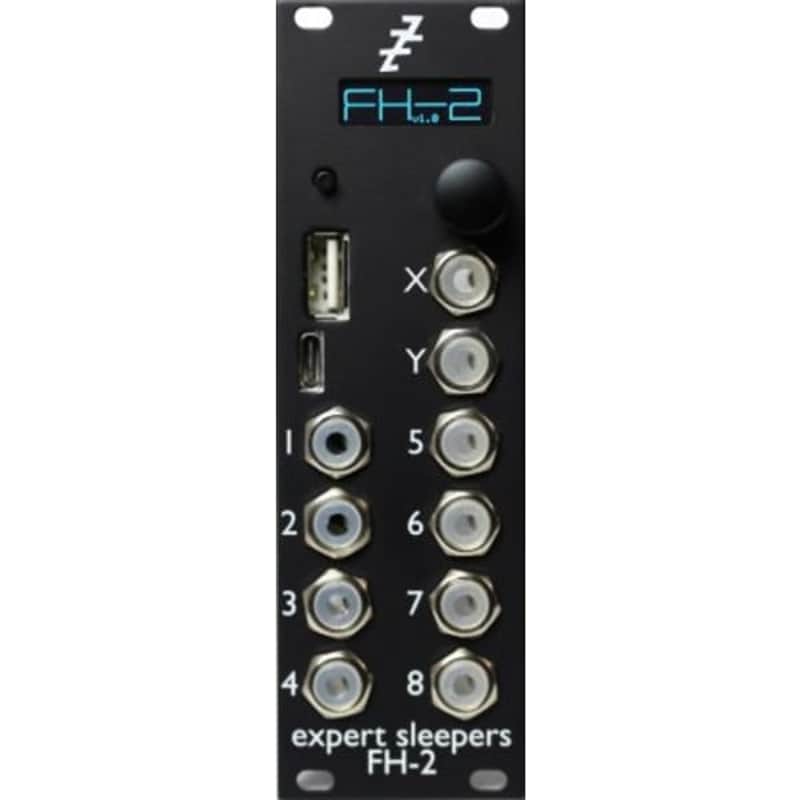

The FH-2 is an USB MIDI host that allows you to integrate external equipement into a modular setup. Including class-compliant keyboard, pad, DAW or DJ controller.
The module combines the following functions:
MIDI to CV conversion including polyphonic and MPE operation.
The FH-2 is simultaneously a USB MIDI host, a USB MIDI device, and also supports traditional 5-pin DIN MIDI.
Support for drum triggers including triggers with velocity or accents.
Support for automatic VCO calibration.
Clock generation and synchronisation.
MIDI clock (in and out), analogue clock (in and out), or internal clock (BPM or tap tempo).
LFO generation, including tempo-synced LFOs.
Arpeggiators.
Euclidean pattern generators.
The FH-2 has 8 high precision CV outputs, expandable to 64 with the FHX-1 Output Expander.
The module can be completely configured via its own UI, but a convenient web-based configuration tool is also available ,which communicates with the module directly via MIDI SysEx.
Typical usages
-With a MIDI keyboard
Up to 16 note polyphonic conversion, with optional pitch/gate/velocity etc. CVs per note. Also features arpeggiation, keyboard splits and more.
-With an MPE controller
Up to 16 simultaneous touches converted with full position/pressure/glide etc. per touch.
-With a MIDI controller
Up to 64 outputs. Direct control of CVs from faders, flexible and syncable LFOs, triggers from pads etc.
-With a 'groovebox'
Multiple clock outs at different divisions, run/stop triggers etc. Groovebox, FH-2, or another module can be the clock master.
-With a computer/tablet/phone
All of the above, plus SysEx for configuration of the FH-2.
-As a clock generator
The FH-2 can operate as the clocking centre of your modular, also generating (syncable) LFOs, with no USB connection.
Specifications
The FH-2's specifications are as follows:
Outputs: 8
Digital-to-analogue conversion: 14 bit
Voltage range: software selectable between ±5V, 0-10V
Inputs: 2 CV inputs
USB host:
Type A connector
Class Compliant USB MIDI host.
Class Compliant USB HID host (for mice, gamepads etc.).
Supports USB hubs.
USB device:
Type C connector
Class Compliant USB MIDI device (plug'n'play with macOS, Windows, Linux and iOS).
Expansion:
Header for connecting FXX-1 Output Expanders.
Header for 5-pin DIN MIDI via a compatible breakout.
An FH-1 may also be used as an expander, over USB.
Controls: 1 rotary encoder (with push button), 1 push button
0.91" OLED display
