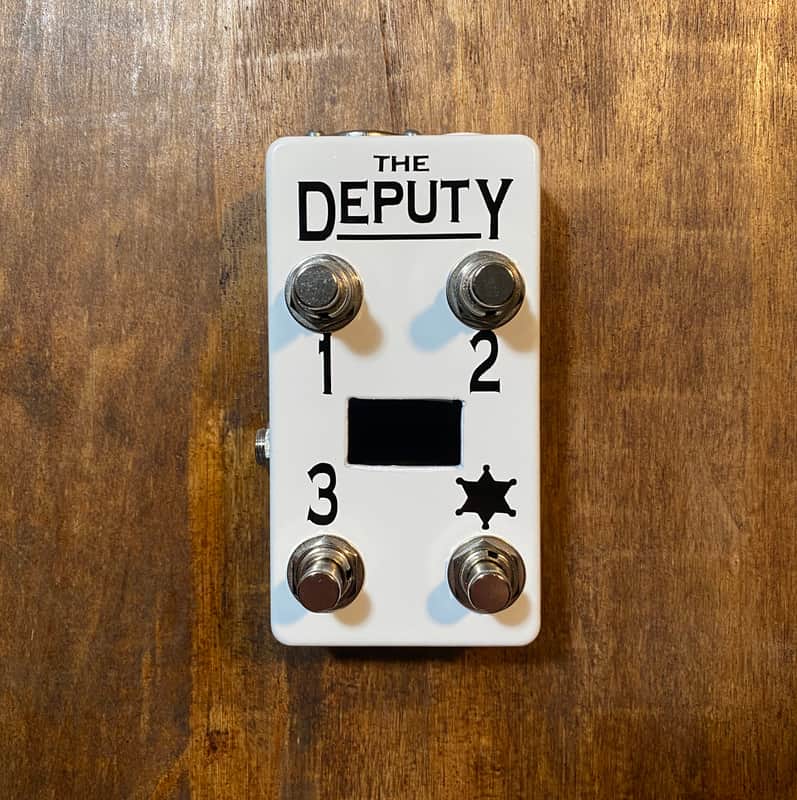

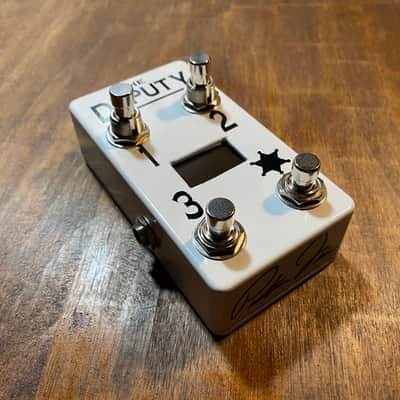

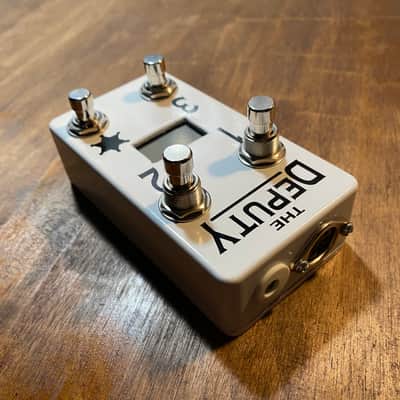

The Deputy is the perfect partner to the HX Stomp and Helix family.
From face value, The Deputy selects Snapshots 1, 2, and 3 and also includes a tap tempo switch on the bottom right, freeing up your foot switches on the unit to whatever you need them to be.
The Deputy Plus sports an OLED screed to show what switch is currently displayed.
Our favorite addition to The Deputy Plus is the addition of a TRS jack that enables you to add a two button footswitch, while keeping the EXP jack on the Stomp open! Now you can have an expression pedal AND a 2 button foot switch!
But The Deputy has a secret…multiple button presses trigger other useful functions to further unlock your Line 6 device, PLUS a second page to enable 3 extra midi switches:
-Pressing switches 1+2 = Preset Up
-Pressing switches 3+tap = Preset Down
-Pressing switches 2+tap = Page Toggle
-Pressing switches 1+3 = Toggle Foot Switch Mode
-Long press tap = Tuner Page
Secondary Page:
-Switch 1 = CC#10
-Switch 2 = CC#11
-Switch 3 = CC#12
-Tap (Long press tap) = Tuner Page
To use the expression jack, all you have to do is plug in a TRS cable into The Deputy and into your two button momentary footswitch and you are good to go!
Pedals are built to order, please allow 5-7 days build and handle it time to ship
Connect a midi cable and 9v power, 40 mA, to The Deputy and fully unlock the potential of your Helix device!
