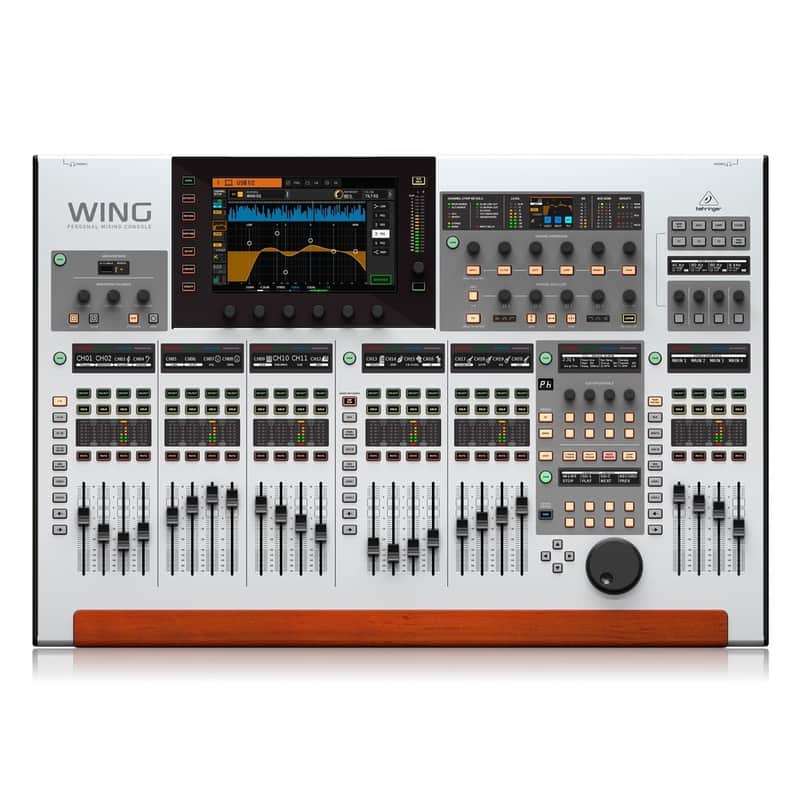

This Quality Pre-Owned Behringer WING Digital Mixer is a cutting-edge digital mixer full of flexibility and packed with innovative features. Experience the culmination of 30 years of Behringer’s passion and dedication to all kinds of audio equipment in one large-format desk.

Boasting 48 channels, complete with eight award-winning Midas PRO mic preamps, the WING captures every single detail of your sound with unparalleled accuracy. 24 motorised 100 mm faders are spread across three fully-configurable sections, letting you mix with confidence with complete tactile control. And with a unique touch-sensitive channel editing section with 11 rotary controls and a dedicated colour TFT screen, your sound and workflow is entirely in your hands.

When it comes to operation choices, you’ll feel spoilt. A 48×48 USB audio interface lets you record each and every single one of the WING’s channels, whilst DAW remote control capabilities let you seamlessly integrate the WING with your software. Combined with an enormous selection of professional features, the WING is your ticket to the world of next-generation mixing.

• Equipped with eight award-winning Midas PRO microphone preamps
• Also features eight Midas PRO outputs
• 24 motorised 10mm faders in three separate, fully-configurable sections
• Plug-and-Play remote I/O connectivity for up to 144 input and output signals over three AES50 ports
• Ultra-low jitter and latency with Klark Teknik SuperMAC technology
• Large main display with a capacitive touch screen and adjustable display swivel
• Unique touch-sensitive channel editing section with 11 rotary controls and a dedicated colour TFT
• 48×48 channel USB 2.0 audio interface built in, complete with DAW remote control emulation HUI and Mackie Control
• Dual SD card live recorder and player with up to 64 tracks and markers for identifying song positions
• Additional 4-channel control section with rotary controls, buttons, and parameter display for permanent access to main, matrixes, or ‘money channels’
• Premium FX rack with eight true stereo processors and world-class TC algorithms, as well as Lexicon and Quanteca dnEMT emulations
• Standard FX rack with eight true stereo processors for a wide array of modulation, EQ, dynamics processing, and more
• Standard FX rack also allows the blending of outboard effects into your mix
• Five variable plug-in processing slots for all 40 of the stereo input channels
• Iconic vintage analogue EQs and compressors, as well as an insert FX slot and 4-band parametric EQ for all eight stereo aux channels
• Custom controls offering 16 latching or momentary buttons and four rotary controls, easily configurable for your preferred functions
• Four main, eight matrix, and 16 aux stereo buses featuring dual inserts, 8-band parametric EQs, stereo imager, and full dynamics processing
• Two ethernet ports with and integrated switch for network remote control
• Built-in expansion port for optional audio interface cards or digital networking bridges, MADI and ADAT/WC
• StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital inputs and outputs on balanced XLR, 8×8 balanced TRS auxiliary line in and outputs, 2 x TRS headphone connectors, MIDI I/O and four GPIO ports
• Covered by Behringer’s 3-year warranty program for outstanding long-term reliability
• Designed and engineered in Germany
• Product Code: WING 48

Input/Output Characteristics:

• Frequency Response @ 48 kHz Sample Rate, 0 To -1 dB (Any Gain Setting): 10 Hz – 20 kHz
• Dynamic Range, Analog In To Analog Out (Typical), XLR / Aux: 111 dB / 108 dB
• A/D Dynamic Range, Preamplifier And Converter (Typical), XLR / Aux: 112 dB / 110 dB
• D/A Dynamic Range, Converter And Output (Typical), XLR / Aux: 118 dB / 112 dB
• Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
• Output Level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
• Output Impedance, XLR Connectors (Unbalanced / Balanced): 75 Ω / 75 Ω
• Input Impedance , TRS Connectors (Unbalanced / Balanced): 20 kΩ / 40 kΩ
• Non-Clip Maximum Input Level, TRS Connectors: +16 dBu
• Aux Output Level, TRS (Nominal / Maximum): +4 dBu / +16 dBu
• Aux Output Impedance, TRS (Unbalanced / Balanced): 150 Ω / 300 Ω
• Phones Output Impedance / Maximum Output Level: 500 mW @ 75 Ω / +18 dBu
• Residual Noise Level, XLR Out 1-16 Connectors, Unity Gain: -97 dBu
• Residual Noise Level, Aux And Monitor TRS Out Connectors: -95 dBu

Displays:

• Main Screen: 10.1″ TFT LCD, 1280 x 800 px, Capacitive Touch
• Main Screen Swivel, Continuous Adjustment: 15°- 60°
• 4-Channel Group LCD Screen With RGB Colour Strip Per Channel: 320 x 48 Monochrome
• Channel Editing Screen: 2.4″ TFT LCD, 320 x 240 px
• Main Stereo Meter: 18 Segment (-60 dB To Clip)

Controls:

• 100 mm Motor Faders: 12 + 8 + 4
• Touch-Sensitive Rotary Controls: 3 + 7 + 11 + 4 + 4
• Custom Controls:
• • Fully Assignable Rotary Controls: 4
  • Fully Assignable Backlit Buttons: 8 + 8
  • Variable Rotary Controls / Buttons: 4 / 4

Power:

• Switch-Mode Power Supply: Auto-Ranging 100-240 Vac (50/60 Hz)
• Power Consumption: 130 W

Physical:

• Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
• Dimensions (H x W x D): 201 x 870 x 575 mm (7.9 x 34.3 x 22.6″)
• Weight: 24 kg (52.8 lbs)
