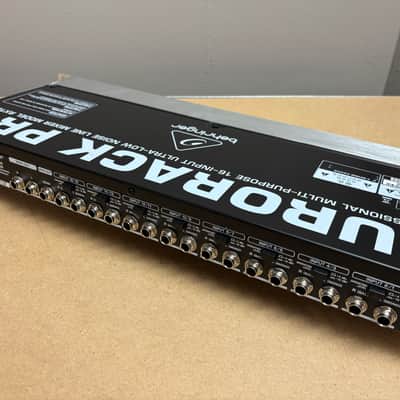

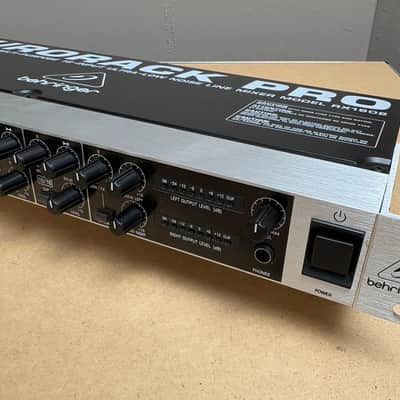

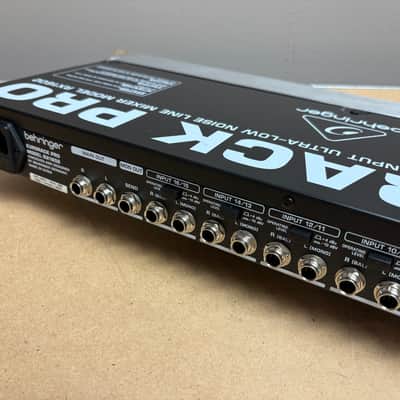

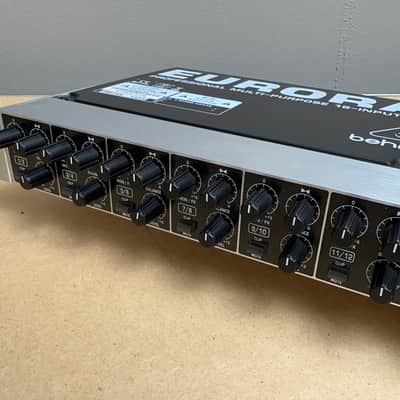

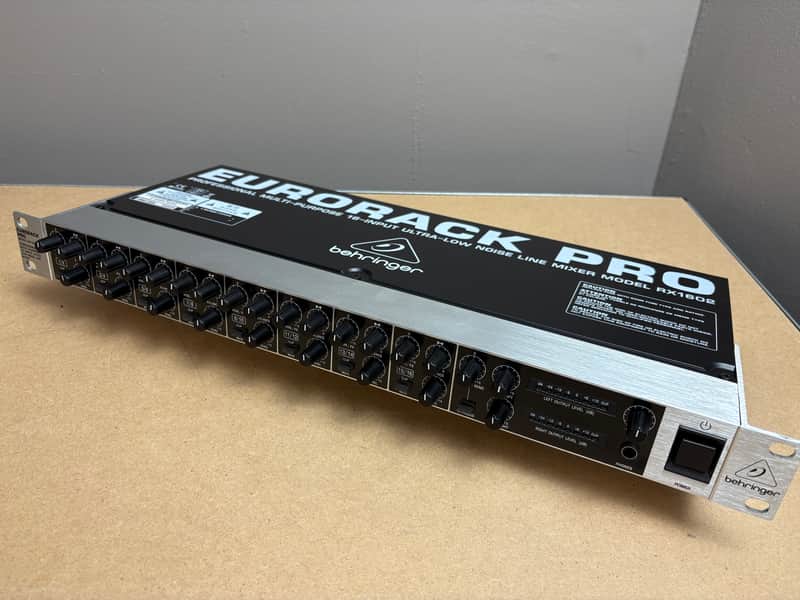

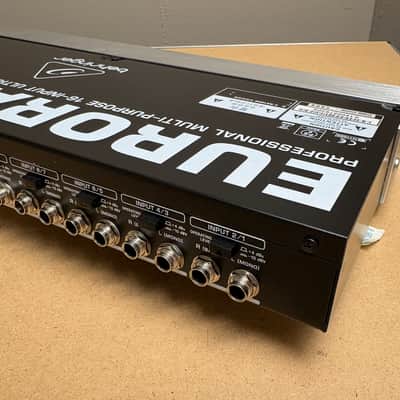

Behringer Eurorack Pro RX1602 16-Input Line Mixer. Excellent fully working condition. As new.

The Behringer Eurorack Pro RX1602 V2 puts flexible and reliable mixing into your live performance or studio arsenal. Equipped with sixteen balanced high-headroom line inputs, you can mix up to eight stereo inputs, sixteen mono inputs, or a combination of both, all controlled through the mixer's eight separate sections.

Each section features Balance, Level, and Monitor/FX Send controls, whilst each channel can be switched between +4 and -10 operating levels for versatile input management. At the end of the mixer you'll find the master section, boasting a master Monitor/FX Send control, as well as a 1/4" headphone output with a dedicated level control. Plus, separate Left and Right main mix level controls combined with 7-segment LED level meters let you keep your main output in check with outstanding precision.

Phenomenal flexibility

Whether you're on the stage or in the studio, the RX1602 V2 is the perfect way to craft the perfect mix. With sixteen balanced high-headroom line inputs, you can work with eight stereo inputs, sixteen mono inputs, or any combination of stereo and mono (up to a maximum of 16 inputs). The mixer features eight separate sections, each with dedicated Balance, Level, and Monitor/FX Send controls, as well as +4/-10 level selection for each individual channel. This gives you precise control over each and every one of your inputs with outstanding adaptability.

The RX1602 V2 also boasts an intuitive master section complete with a master Monitor/FX control, Main Left level control, Main Right level control, and a 1/4" headphone output with a dedicate level knob. You can even choose to send the Mon/FX signal to the headphone output too. The master section also allows you to keep your eyes on what's going on thanks to separate 7-segment LED level meters for the left and right main mix signals.

Features

• Extremely flexible multi-purpose sub-mixer, multi-track monitoring mixer, and level translator
• 16 balanced high-headroom line input for individual stereo or mono use of each section
• Ultra-low noise ULN design for the highest possible headroom and ultra-transparent audio
• Dedicated balanced and level controls, plus +4/-10 level selection per channel
• Monitor/FX Send control per section with global master send control for flexible monitoring, recording, or effects uses
• Illuminated double-function Mute button per section with additional clip indication
• Monitor/FX signal assignable to headphone output for added flexibility
• Highly accurate 2 x 7-segment LED level meters and individual level control for left and right main mix signal
• 1/4'' TRS main mix outputs plus easily accessible headphone output on the front panel with dedicated level control
• High-quality detented rotary controls for long-term reliability
• Internal switch-mode power supply (100-240V) for noise-free audio and low power consumption
• Designed and engineered in Germany

Specifications

• Audio Inputs:
• • Type: 1/4'' TRS connector, electronically balanced
  • Impedance: 10 k Ohms, balanced or unbalanced
  • Gain Range: -∞ to +15dB
  • Operating Level: +4dBu/-10dBV (switchable)
  • Maximum Input Level: +22dBu
  • CMRR at 1kHz: Typically >50dB
• Audio Outputs:
• • Main Out L/R:
  • • Type: 1/4'' TRS connector, impedance balanced
    • Gain Range: -∞ to +15dB
    • Impedance: 240 Ohm (balanced), 120 Ohm (unbalanced)
    • Maximum Output Level: +22dBu
  • Mon Out:
  • • Type: 1/4" TRS connector, impedance balanced mono
    • Impedance: 240 Ohm (balanced), 120 Ohm (unbalanced)
    • Maximum Output Level: +22dB
  • Headphone Output:
  • • Type: 1/4" TRS connector, stereo
    • Minimum Load Impedance: 100 Ohms
• Bandwidth: 20Hz - 20kHz, +/-0.2dB
• Frequency Range: 10Hz - 200kHz, +/-3dB
• Signal-to-Noise Ratio:
• THD: 0.003-percent at +4dBu, 1kHz, unity gain
• Crosstalk:
• Power Supply: 100-240V, 50/60Hz (switch-mode autorange power supply)
• Power Consumption: 15W
• Mains Connection: Standard IEC connector
• Rack Size: 1U
• Dimensions: 44mm x 483mm x 149mm / 1.7'' x 19'' x 5.9'' (H x W x D)
• Weight: 1.8kg / 4lbs
• Product Code: RX1602V2
