Just recently serviced.
Make Fender

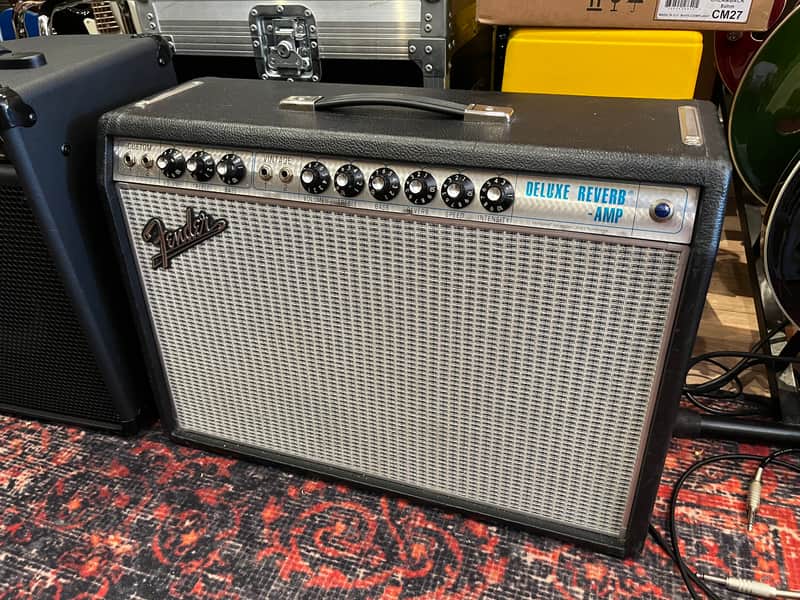

Model '68 Custom Deluxe Reverb

Serial Number B-623015

Year 2016

Output Tube Type 6V6-S (matched pair)

Power Rating 22W RMS into 8 ohms

FULL SERVICE REPORT

1 Chassis — dents, cracks, corrosion, previous

repairs

Done

✓ ✓ No issues noted

2 Tolex / cabinet — covering, corners, joints, handle Done

✓ ✓ Good —

cosmetically fine

3 Feet — all present and intact Done

✓ ✓ All present

4 Front panel — knobs all present, no cracks or

damage

Done

✓ ✓ No issues

5 Rear panel — jacks all visually intact Done

✓ ✓ Both RCA sockets

found damaged

during service —

both replaced

6 Grille cloth — present, intact, no tears or staining Done

✓ ✓ Good condition

7 Mains lead — condition of cable sheath, plug and

strain relief

Done

✓ ✓ Good condition

8 Fuse holder — accessible, correct fuse fitted Done

✓ ✓ 1A 250V slow-blow

— 230V UK spec

confirmed

Internal Condition — Initial Visual

# Check Result Pass Fail Notes

1 Transformers — no signs of overheating, burning

or oil leakage

Done

✓ ✓ Output and reverb

transformers found

loose — both

tightened and

secured

2 Tubes — types correct, no obvious physical

damage, all seated

Done

✓ ✓ All correct for spec.

V5 swapped during

diagnosis then

returned

3 Tube retainers / shields — all present and located Done

✓ ✓ All present and

fitted

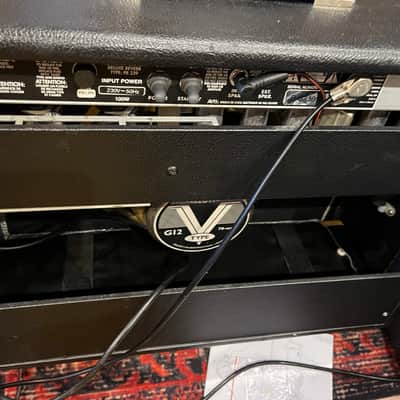

4 Speaker — cone, surround and dustcap visually

intact

Done

✓ ✓ Non-original

Celestion G12 V-

Type 70W fitted —

previous owner

modification.

Reseated and

cleaned during

service

5 Speaker baffle board — secure, no cracks Done

✓ ✓ Secure

6 PCB / board — scan for burnt components,

cracked board, lifted pads

Done

✓ ✓ No damage found.

LDR tremolo PCB

visually clean

7 Internal wiring — no loose, burnt or previously

repaired wires

Done

✓ ✓ Wiring dressed

during service

8 Previous modifications or non-original components Done

✓ ✓ European LDR

tremolo PCB fitted

as per 230V export

specification.

Celestion G12 V-

FULL SERVICE REPORT

previous owner

modification

9 Debris inside chassis — none present Done

✓ ✓ Clear

10 Ventilation slots — clear, not blocked Done

✓ ✓ Clear
