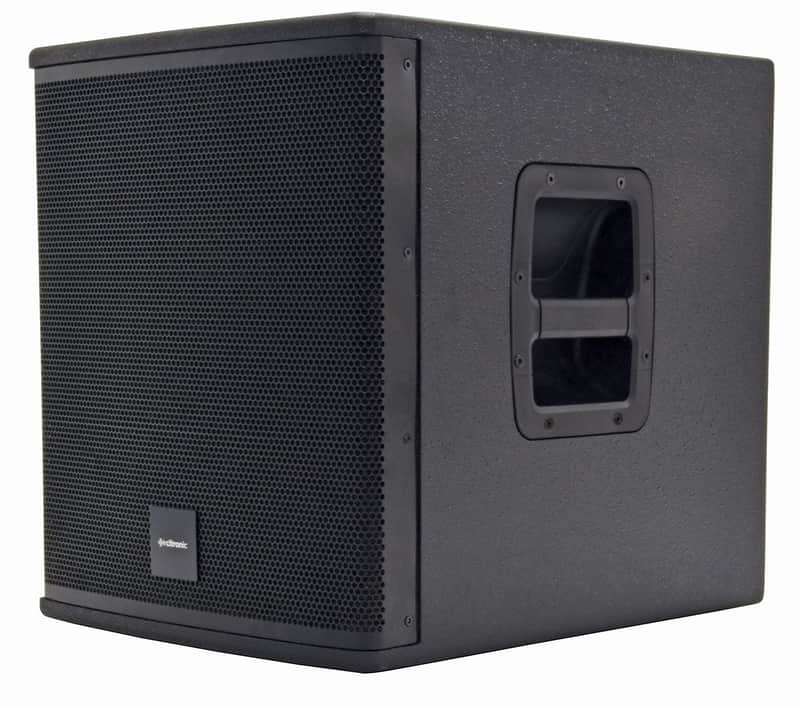

Citronic CASA Active Sub Speaker 12"

CASA Active Sub Cabinets

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

• Compact and lightweight design
• 15mm MDF cabinets with hard-wearing paint finish
• 2 x side carry handles
• 35mm pole mount socket

• Power supply230Vac, 50Hz (IEC)
• Construction15mm MDF with durable texture paint finish
• Hardware2 x side carry handles + 35mm pole mount socket
• Amplifier : construction Class D

• Line inputsL+R balanced XLR
• Line outputsL+R balanced XLR & L+R link XLR
• ControlsOutput level, phase switch, high pass x-over (output)

  10" 12"
15"
18" Sub driver 250mmØ (10") 300mmØ (12") 380mmØ (15") 450mm­­­Ø (18") Voice coil 50mmØ (2") 62mmØ (2.5") 75mmØ (3") 75mmØ (3") Output power : rms 300W 400W 500W 600W Output power : max. 500W 700W 900W 1100W Peak output 1000W 1400W 1800W 2200W SPL max. 120.0dB 122.0dB 123.5dB 124.0dB Frequency response 60 - 150Hz 55 - 150Hz 50 - 150Hz 45 - 150Hz Dimensions 431 x 407 x 338mm 480 x 450 x 380mm 564 x 540 x 448mm 645 x 605 x 510mm Weight 16.23kg 18.86kg 25.42kg 34.00kg
