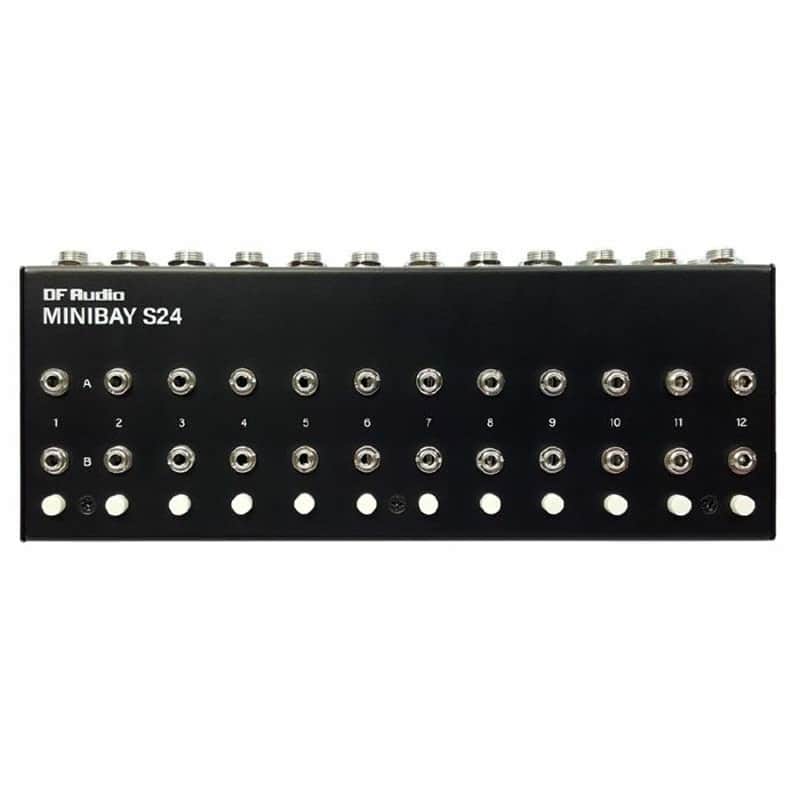

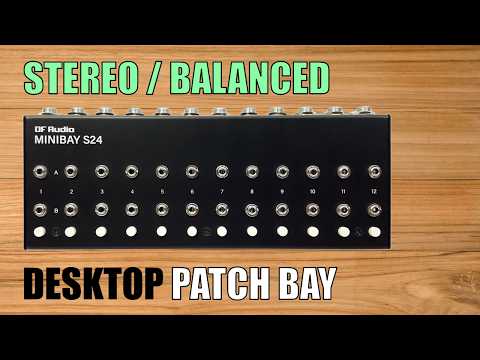

DF Audio MINIBAY S24 24-Point TRS Audio Patchbay

The ideal compact patchbay for hardware setups, whether in the studio or for re-patching quickly on the fly in a live setting. Route up to 12 inputs and 12 outputs via the back panel, then patch using 1/8-inch TRS cables on the top. Supplier's Notes: The MINIBAY S24 is a 24-point TRS patch bay that balances simplicity and ease of use with a compact, desktop-friendly form-factor. It has twenty four 1/4" TRS sockets on the back and corresponding 1/8" TRS sockets on the top panel. The S24 supports balanced signals, as well as unbalanced mono and stereo signals, all of which can be routed using the included eighth inch TRS patch cables. Each A/B pair has a dedicated switch to engage a half-normalled connection when required. Normalling Each A/B pair on the MINIBAY S24 has a switch to toggle between the patched connection and a half-normalled connection. When half-normalling is engaged, a hidden connection is made between the upper and lower sockets in a pair, which overrides the patched connection to the lower socket. The upper socket maintains both the patched connection and the normalled connection. This effectively allows you to split the signal and take it to two separate inputs (e.g. a mixer and an audio interface). IMPORTANT: When using half-normalled connections, the outputs should be on the top row and inputs on the bottom row. Description: 24-point stereo/balanced patch bay Back panel: 24 x 1/4" TRS sockets Top panel: 24 x 1/8" TRS sockets, 12 x half-normalling switches Normalling: 12 x half-normalled A/B pairs Compatible signals: Balanced, unbalanced mono/stereo, CV, MIDI Included cables: 6 x 1/8" TRS, 1 x 1/8" TS to TRS Dimensions: 230 mm x 85 mm x 40 mm Weight: 900 g
