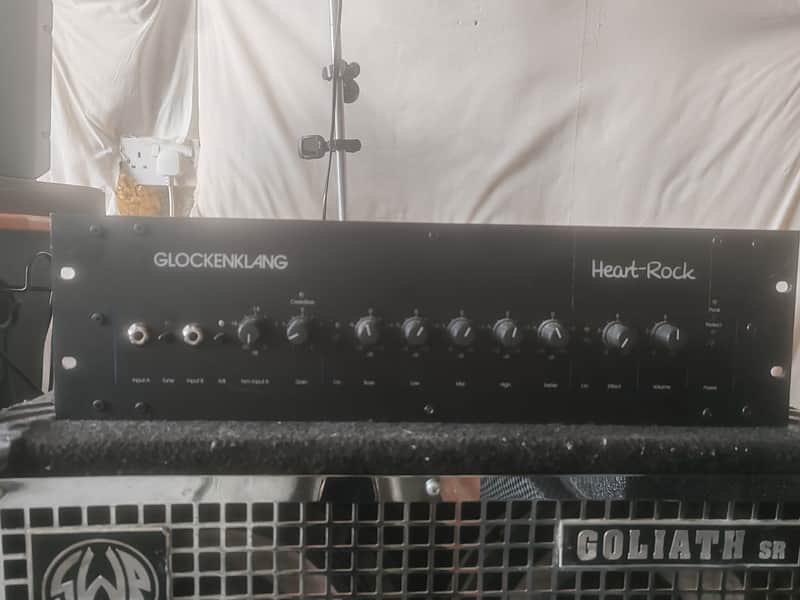

Glockenklang Heart-Rock

Fantastic sounding and very powerful amp - will run up to 1000W with GK cabs. Some minor cosmetic damage but perfect working order. Can post at buyer's expense or deliver within Northern Ireland.

3 space compact design,

forced air cooled.

LED peak indicators for pre-amp and power amp

LED indicators for all switching functions

optimized effects loops

dual switchable inputs, like A/B box but with separate trim control for input B

Balanced, adjustable HI-FI DI out

razor sharp 5-band eq

Specifications:

Power Output : 750W@ 4Ohm

400W @ 8Ohm

Frequency Range: 20Hz to 25kHz (-1db)

A/C: 120V

Size: 483 mm x 132 mm x 330 mm (19″ x 5″ x 13″ )

Weight: 18 kg (38 lbs)

Inputs:

Input A for passive basses

Input B for active basses, additional trim for input B

Power amp in at rear panel

Equalization:

Five Band precision eq with true bypass switch and LED status indicator

Bass (+- 15dB), Low (+-12dB), Mid (+-8dB), Treble, (+-12db) and High frequency (+-15db) controls.

Effects loops:

1serial loop, pre-eq

1 parallel loop, post eq, switch-able and adjustable from front panel, also foot-switch-able.

Sends:

1tune send

1pre-amp out

1Diout (XLR)

2speaker out jacks ( Neutrik Speakon)

Switches:

Tune Switch ( mutes all outputs, except for tuner out)

Input A/B ( switches between both inputs)

EQ on

DI pre/post EQ

Effect on

Power on

Ground Lift

Jack for footswitch Effects

Jack for footswitch Tune
