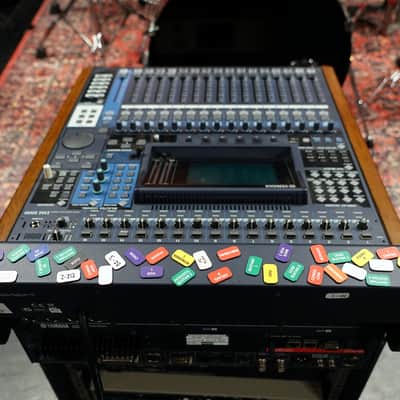

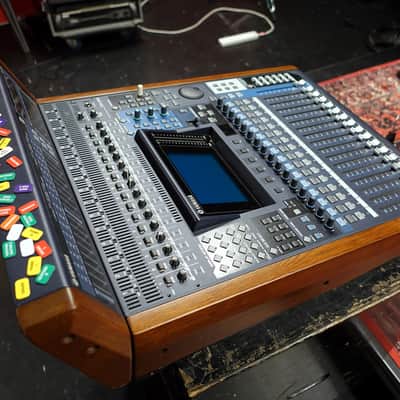

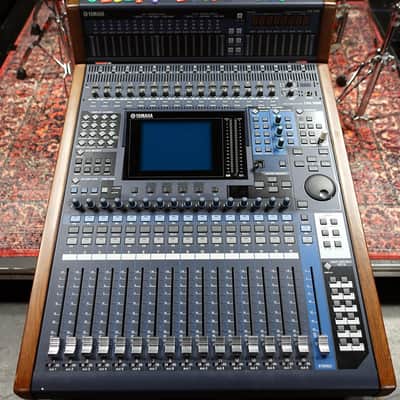

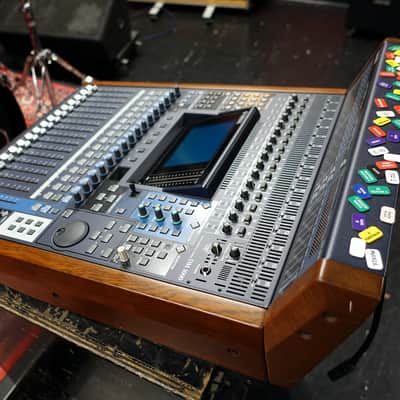

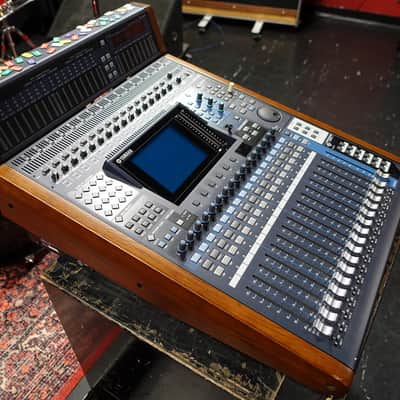

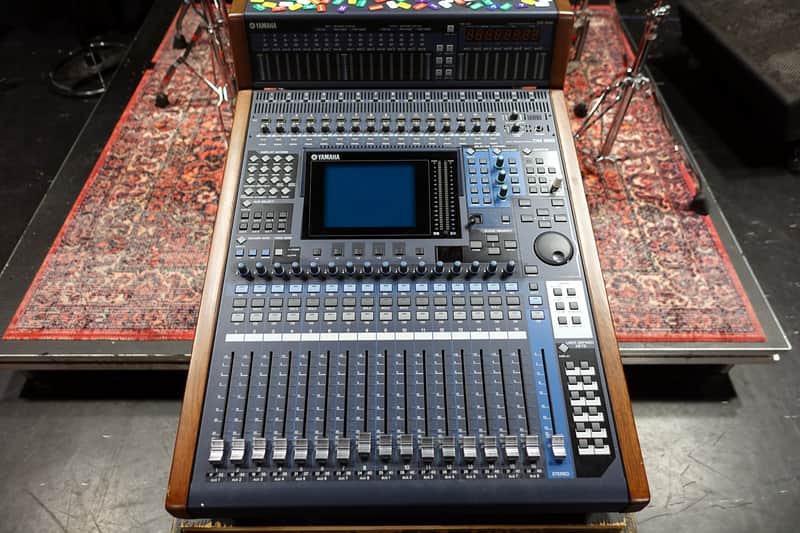

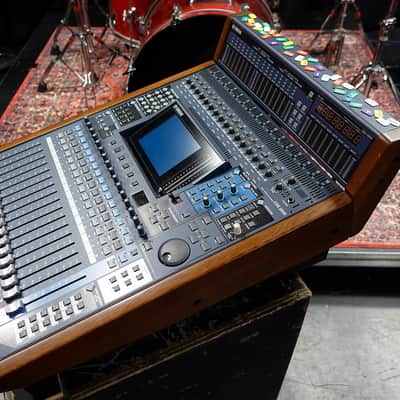

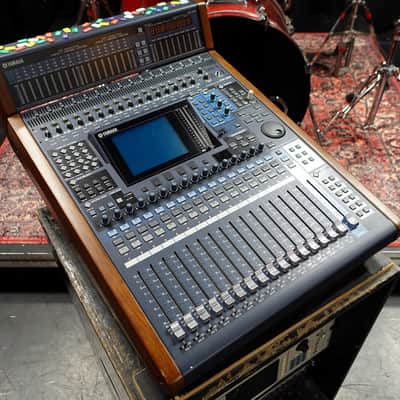

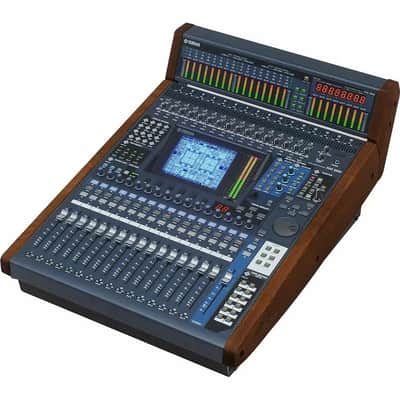

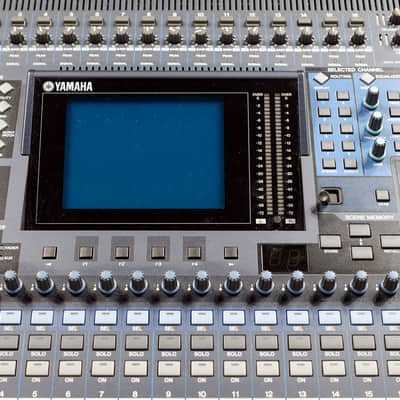

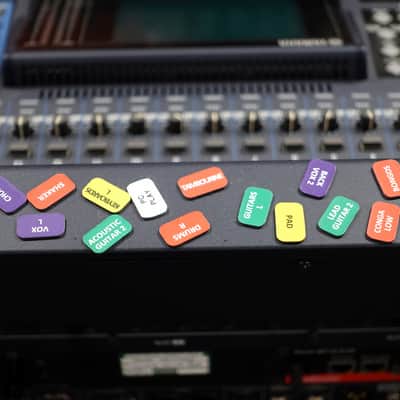

Yamaha DM1000 VCM Digital Mixer with Meter Bridge, Dante Module and wooden side panels.
Firmware 2.41. Studio Manager computer editing software available from Yamaha for Windows 11 and Mac OS14

Mixing channels: 48

Group:  8

Aux: 8

Main: Stereo

Input channel functions: Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan

Output channel functions: Attenuator, 4-band PEQ, Compressor, Delay

On-board processors: 4x SPX multi effectors

Mic inputs: 16

Phantom power: +48V DC; ON/OFF per channel

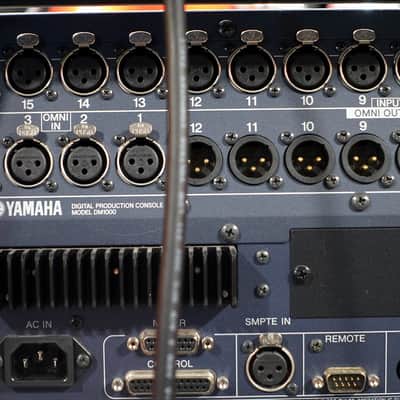

Line inputs: 4x Omni in

AD converter: 24-bit; 128-time over sampling

Line outputs: 12x Omni output

DA converter: 24-bit; 128-time over sampling

Digital I/O: 2x 2tr in/out

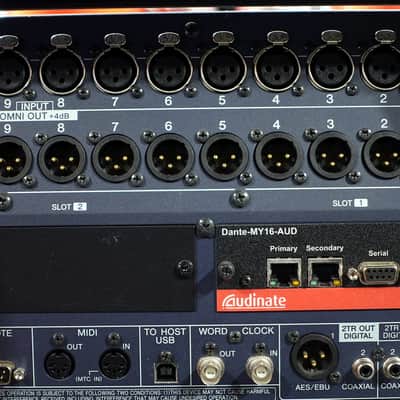

Expansion slots 2x Mini-YGDAI (16-in/16-out)

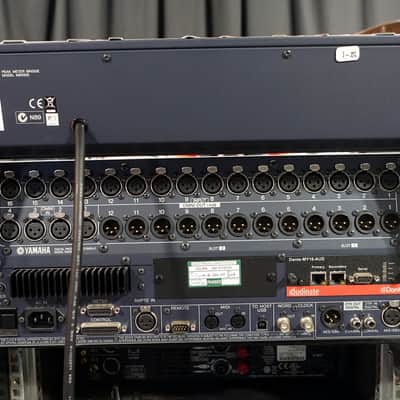

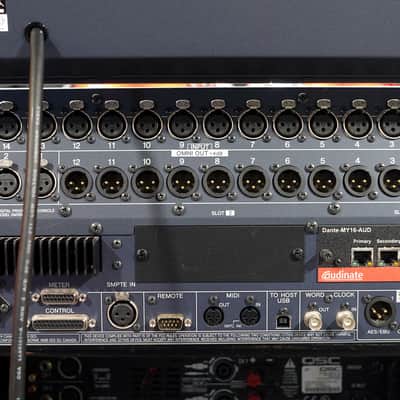

To Host(USB), Control(GPI), Remote, MIDI, Time code in (SMPTE), Word clock I/O

Internal processing: 32bit, Accumulator: 58bit

Sampling frequency rate

Internal: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

External: 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)

Signal delay: Less than 1.6ms (@48kHz), Less than 0.8ms (@96kHz)

Total harmonic distortion: Less than 0.05% (20Hz-40kHz)

Frequency response: 0, +0.5, -1.5dB 20Hz-40kHz

Dynamic range: DA: 110dB;  AD+DA: 106dB

Equivalent input noise: -128dBu

Residual output noise: -86dBu

Crosstalk:-80dB

Power requirements: AC100V, 120V, 220-240V 50/60 Hz

Power consumption: 135W

Dimensions:

Width: 436mm; / 17-3/16in

Height: 200mm; 7-7/8in

D: 585mm; 23-1/16in

Net weight: 20kg; 44.1lbs
