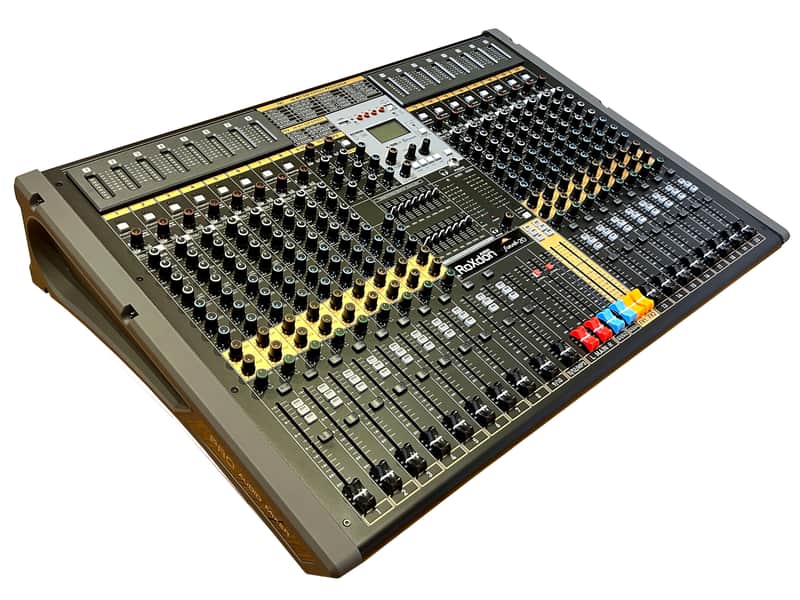

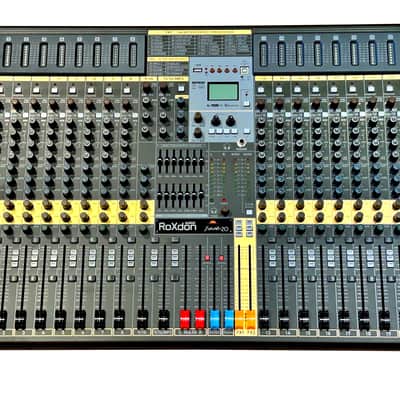

RoXdon Sunset-20 Multi Channel Live / Studio Mixing Console

Following on from the successful Soundex-16 Console, RoXdon introduce the new Sunset-20 Multi-Channel Live / Studio Mixing Console featuring balanced microphone inputs on 16 channels with switchable phantom power similar to large format mixing consoles. Channels 9/10 and 11/12 are stereo channels with the option to use as 2 mono Mic Channels.

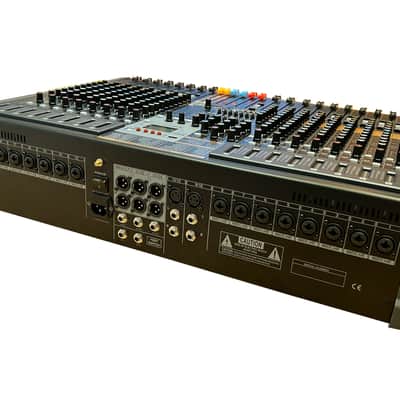

Each of the channels 1-8 and 13-20 features a 3-band EQ section with sweepable mids, 3 Auxiliary Sends for external effects or processors and dedicated FX1 (24 effects) and FX2 (8 effects) for the onboard Digital Multi-Effects Processor. As with all our mixing consoles we have also included channel LED VU meters for accurate input level adjustment plus all main cable connections are on the rear panel rather than the unsightly top connections featured on many other mixers.

The small footprint of the Sunset-20 is ideal for small room analog studios where space is at a premium.

FEATURES

INPUTS

*  16 Mic / Line dual balanced TRS/XLR inputs (1-8 and 13-20)

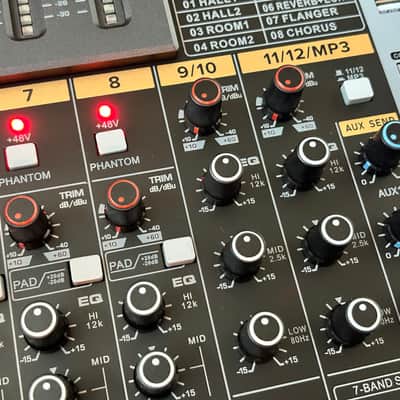

*  Channels 9/10 and 11/12 are stereo line inputs or 2 x mic inputs

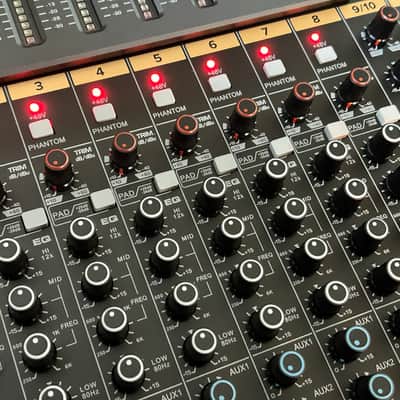

*  48v Phantom Power switch on all channels
*  Phantom Power Master Switch with LED
*  Input Gain Control
*  3-Band EQ with sweepable mids

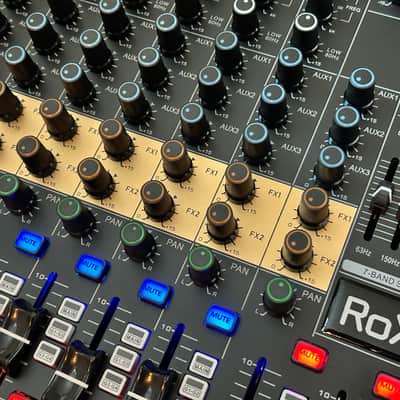

*  3 Auxiliary Sends
*  Left/Right Pan Control

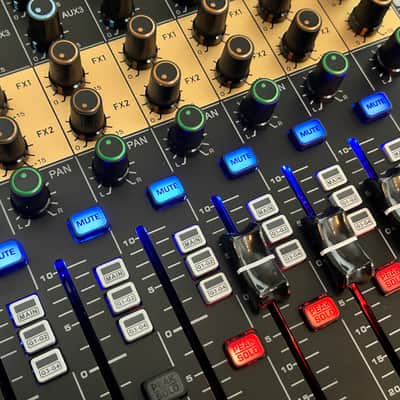

*  Channel Mute button
*  Bus Route Switches (Master, G1-G2 and G3-G4)
*  Solo Buttons
*  Channel Input Faders
*  Channel LED Bargraph VU meters

MASTER

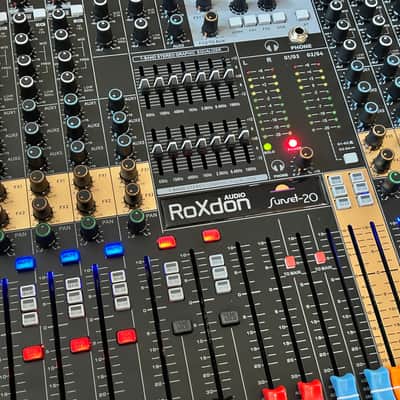

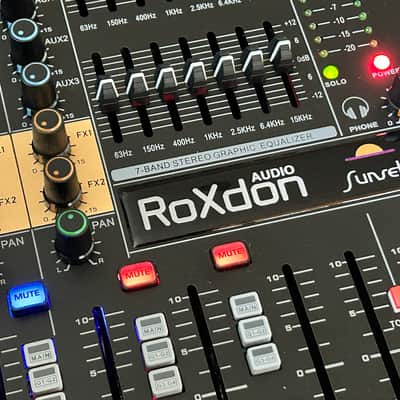

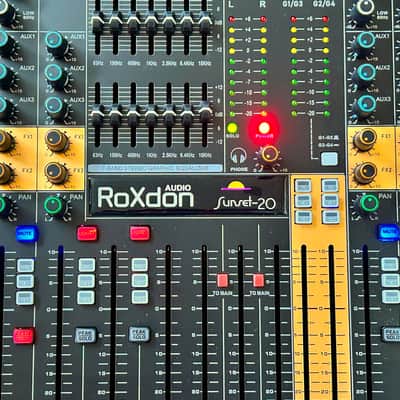

*  Dual 7-Band Equaliser on L-R outputs for room equalisation
*  Left/Right Output Faders
*  G1-G2 / G3-G4 / FX Output Faders

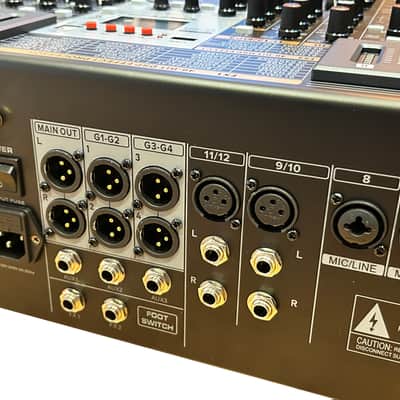

*  Main balanced XLR left / right output sockets
*  XLR balanced L/R, G1-G2, G3-G4 output sockets
*  Master / G1-G2 and G3-G4 (selectable) Bus Bargraph VU Meters
*  TRS Headphone output + Level Control
*  Bluetooth input capability
*  USB Digital input (MP3 play)

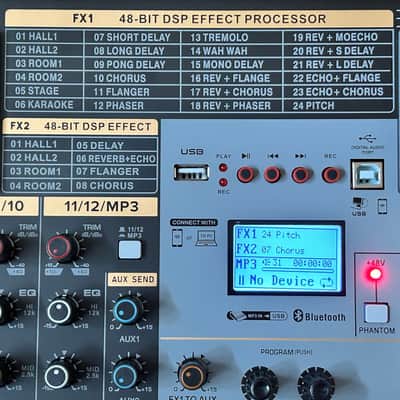

*  Inbuilt Digital Multi-Effects Processor
*  Auxiliary Returns
*  G1-G2 and G3-G4 Route Switch to Master output
*  Full control of FX1 and FX2 Effects parameters

Dimensions: W70cm x D50cm x H15cm
