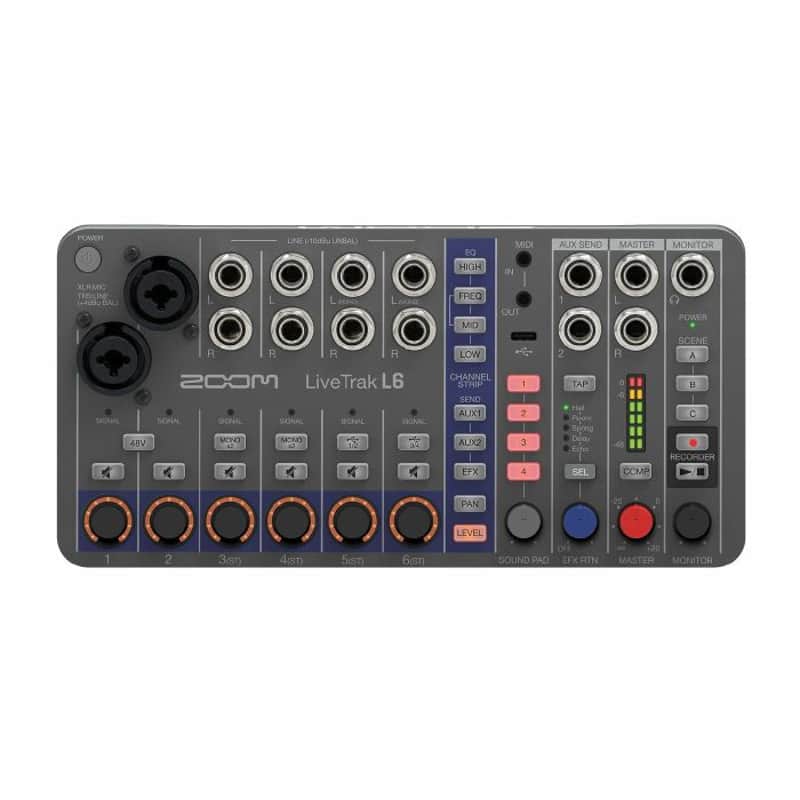

Zoom L-6 LiveTrak 10-Track Digital Mixer & Recorder

Incredible value all-rounder from Zoom, the L-6 combines recording, mixing and performance features, with 10 studio-quality audio tracks, effects, MIDI and real-time sampling. Supplier's Notes: Small Just Got Very Big The LiveTrak L6 is Zomo's most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more. Full Featured Mixer Don't let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a 3-band mid-sweepable EQ. Powerful Multi-Track Recording The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing. MIDI Connectivity for Synths and Keyboards Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB. Map parameter controls such as volume, pan, and EQ to outboard gear Trigger sound pads and scene switching Tempo sync delay and echo Features 10-channel ultra-Compact digital mixer 2 XLR/TRS Combo inputs + 4-Stereo inputs 12-track simultaneous recording MIDI In/Out for mixer control and USB MIDI interface 3 Scene memory for storing mixer and tempo setting 32-bit float multi-track recording to micro SD card 5 Internal Send Effects 2 AUX send outputs 4 Assignable sound pads (sample player) 3-Band EQ with MID freq control for each channel Headphone output + Master output Eurorack compatible 12-in / 4-out Audio interface 4 AA battery power operation or USB power Specs Input and output channels Inputs MIC/LINE (mono) 2 LINE (stereo) 4 Outputs AUX SEND (mono): 2 MASTER (stereo): 1 MONITOR (stereo): 1 Inputs MIC/LINE: Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain: Adjustment unnecessary (dual A/D converter circuits used) Input impedance:XLR: 3.8 kO or more, TRS: 39 kO or more Maximum input level XLR: +4 dBu, TRS: +24 dBu Phantom power: +48 V, Channel total of 10 mA or less LINE Connectors: 8 TS phone jacks (unbalanced) Input impedance: 10 kO Maximum input level: +9 dBu Outputs AUX SEND Connectors: 2 TRS phone jacks (impedance balanced) Maximum output level: +9.5 dBu Output impedance: 147 O MASTER Connectors: 2 TRS phone jacks (balanced) Maximum output level: +15 dBu Output impedance: 147 O MONITOR Connector: TRS phone jack Maximum output level: 50 mW + 50 mW (63 O load) Output impedance: 14.7 O Buses MASTER: 1 AUX SEND: 2 SEND EFX: 1 Channel strip 3 BAND EQ: HIGH: 10 kHz, +/-15 dB, shelving MID: 100 Hz - 8 kHz, +/-15 dB, peaking LOW: 100 Hz, +/-15 dB, shelving Level meters: 6 segments Send effects: 5 types Recorder Maximum simultaneous recording tracks: 12 Maximum simultaneous playback tracks: 2 Recording formats: 48 kHz, 32-bit float, mono/stereo WAV Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher) Audio interface Input and output channels: Input: 12 channels, Output: 4 channels Sampling frequency: 48 kHz Bit depth: 32-bit float / 24-bit Interface: USB 2.0 Card reader: Mass storage class USB 2.0 High Speed Sampling frequency: 48 kHz Frequency response: 20 Hz - 20 kHz / -1.0 dB Equivalent input noise: -120 dBu or less (IHF-A) at 150O input Power 4 AA batteries - Alkaline, Lithium, or Rechargeable NiMH AC adapter: ZOOM AD-17 : DC 5V/1A USB bus power is supported. Estimated continuous recording time using batteries Alkaline batteries: About 3 hours NiMH batteries (1900 mAh): About 3.5 hours Lithium batteries: About 7 hours 12-track recording, phantom power off, headphones used (63O load), no MASTER output connections These values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. Power consumption 5 W maximum Dimensions: 223 mm (W) × 114 mm (D) × 46.5 mm (H) Weight (main unit only): 526 g Weight (including batteries): 618 g Note: 0 dBu = 0.775 Vrms
