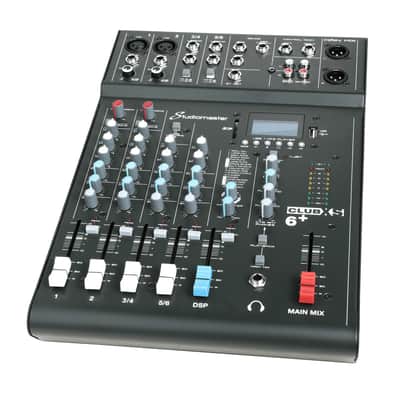

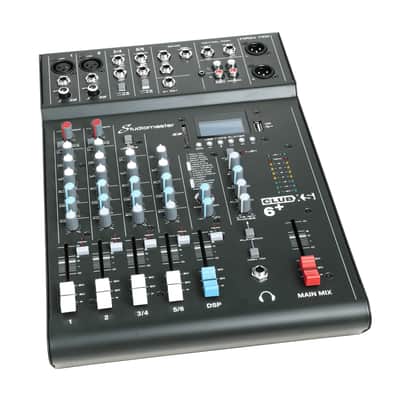

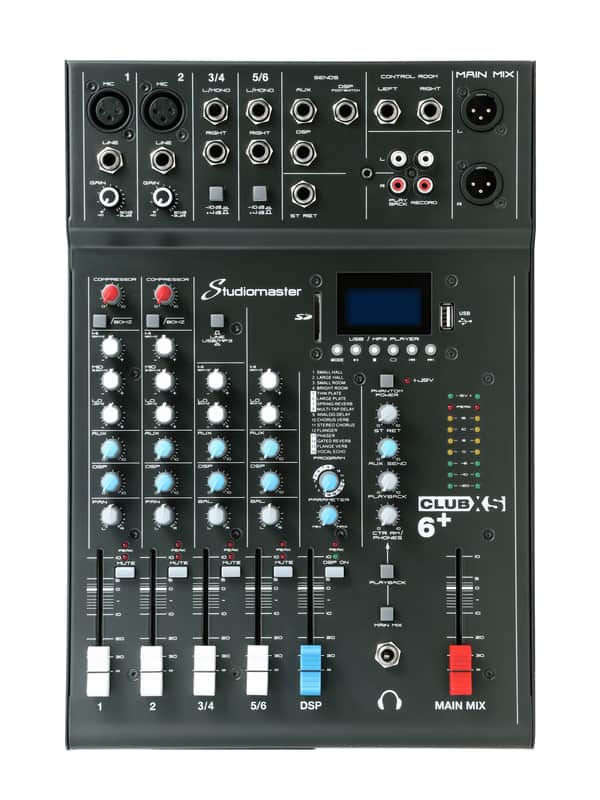

Studiomaster Club XS6+ 6 Input Mixer

The Studiomaster CLUBXS+ series are a range of comprehensive and affordable compact, hard wearing mixing consoles. With all the features required for live mixing or stereo recording an event, duo or band whether at home, in the rehearsal rooms or out at an event.
The compact range is available in 6 to 16 input versions with 19” rack adapters or dedicated 19” rack mounting models to fulful virtually any
application.

Specification Table:

Inputs 6 Mic Input channels 2 Stereo Input channels 2 Gain MIN ~ MAX Mic 6dB ~ +50dB Line +10dB ~ -34dB EIN -100dB Frequency response Mic Channel 10Hz~20kHz+1/-3 THD Mic Channel  0.1% Signal to noise ratio 80dB Output Levels MAX +26(BAL) / MAX +20(UNBAL) Channel EQ Hi 12kHz Mid 2.5kHz Lo 45Hz Lo Cut 80Hz MP3/USB/SD Audio playback YES USB/SD Audio recording YES DSP Effects YES Power requirements 100V - 240V ~ Dimension (W x H x D) mm 250 x 80 x 365mm Weight 3.5kg
