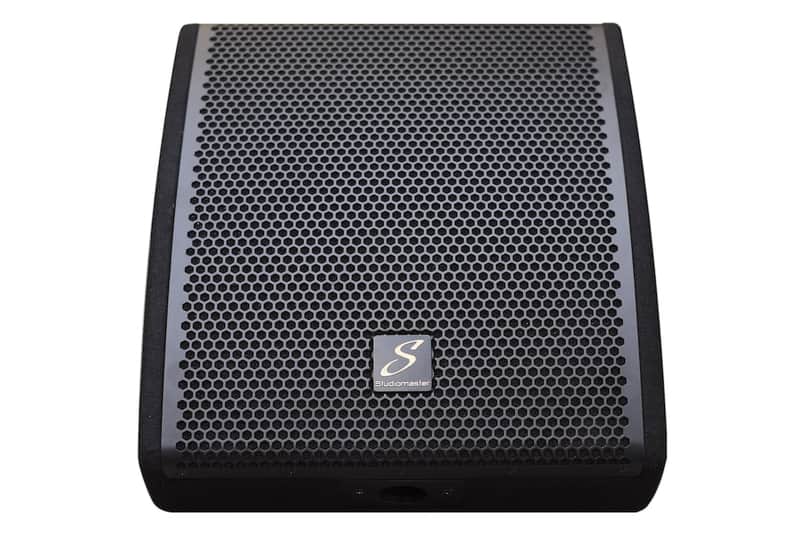

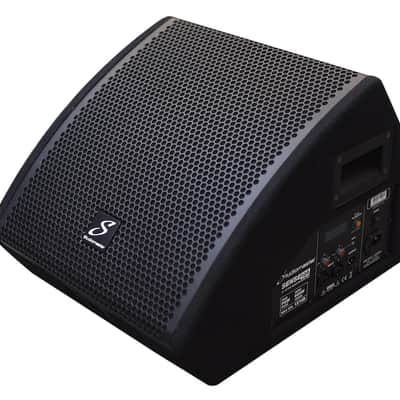

Studiomaster Sense 12 A 12" Active Monitor Speaker

Coaxial HF and LF units for increased sensitivity and true production of tone with reduced distortion

NdFeB magnetic HF compression drivers with 44mm voice coil for bright and penetrating tone

Dual Class D amplification circuits with 24bit 48kHz DSP modules on active models, with 3 band EQ

2 XLR/Jack inputs with individual levels, Aux input, Main mix and link thru outputs

43 degree monitoring angle and 35mm speaker pole mounting socket, for use as a monitor speaker or live PA cabinet

Available in highly durable paint or hard wearing carpet finishes with robust steel grille

Ultra compact footprint, lightweight design

Model – Sense 12A
Format – 12″ two way active monitor
Finish – Hard wearing carpet
Frequency response (-10dB) – 55Hz-20kHz
Input sensitivity LINE – 0dBu
MIC – -40dBu
DSP – 4 tone modes, 3Band EQ, Low cut, Limit, Delay, Volume
Max SPL – 127dB
Amplifier power RMS – 260W(LF) + 40W(HF)
Peak system power – 1200W
Crossover frequency – 2.4kHz
Woofer – 12″ Diameter, 65mm voice coil
Compression SENSEr – 44mm voice coil
Coverage – 80×80
Input connectors – 2x XLR/Jack combo, 3.5mm Jack, XLR Thru and Mix output
Voltage selector – 100V-240V
Dimensions – 400x436x323mm
Weight – 15kg
