Dwyfor Tech Pas-Isel - Eurorack Lowpass Filter VCF - FULL DIY KIT

USA buyers: Tariffs are included in shipping cost.

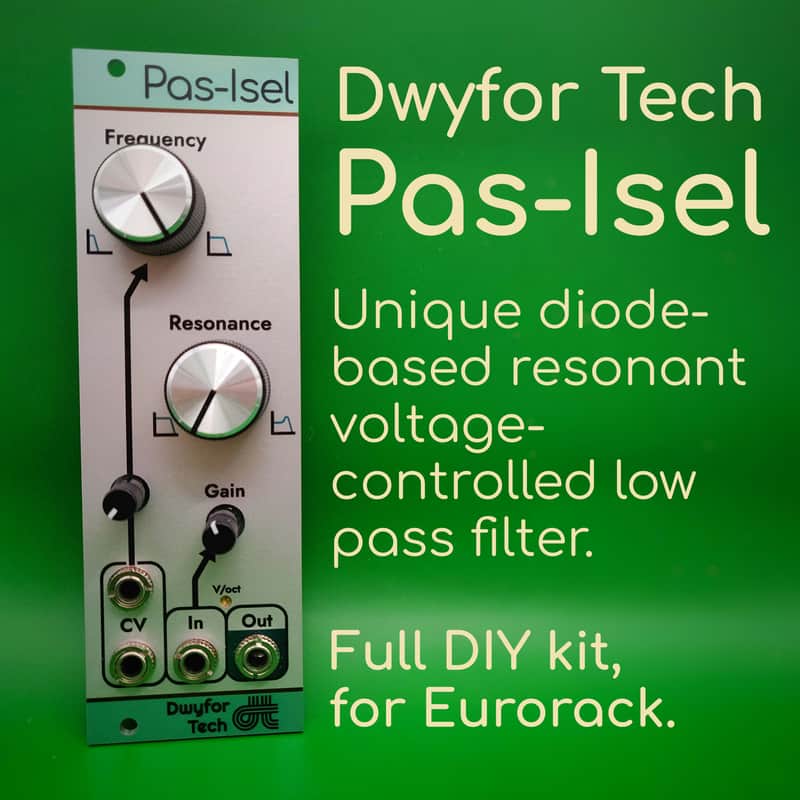

Pas-Isel is a four-pole lowpass filter for Eurorack modular systems, with an architecture unlike any other. Combining design elements from Buchla and Korg, this diode-based VCF uses highpass filters in op-amp negative feedback loops to generate its signature 'wooly jumper' -24dB lowpass response.

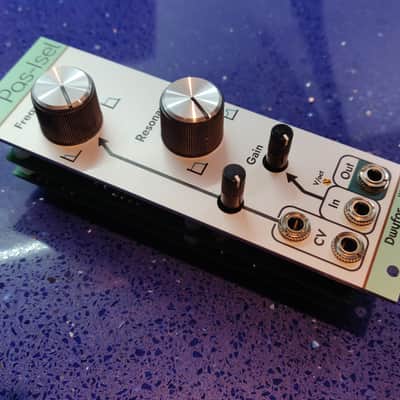

Pas-Isel is entirely realised with through-hole components for ease of assembly. This listing is for the full kit version, which includes all components necessary for you to solder together straight away at home. All our front panels are high-quality anodised CMYK prints on chunky, quality brushed aluminium sheet stock, made in the UK. We also offer a panel and PCB set, if you'd rather source your own components, in a separate listing.

• 8hp wide, 3U high.
• Conforms to Eurorack (Doepfer A-100) standards.
• 33mm depth required for mounting.
• Idle power consumption 25mA on both rails.
• 25kHz self-oscillation power consumption 45mA on both rails.

You can find the build/user manual at tinyurl.com/pasisel - We highly recommend giving it a read before buying, to make sure it's the right kit for you.

I can assemble kits to order to provide you with a completed module, dependent on my free time. I charge £50 for my time and labour in this case. Send me a message for availability and details.
