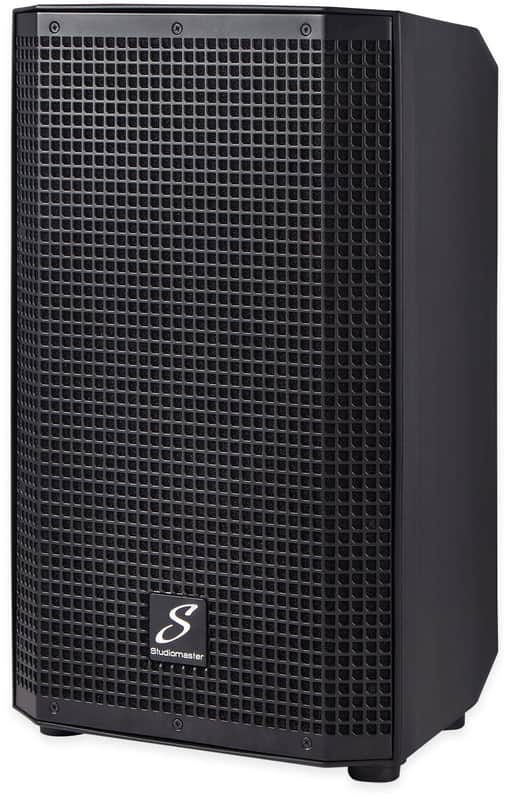

Studiomaster Vortex Active Speaker 10''

A brand new range of 10″ and 12″ active moulded speaker cabinets. Featuring high performance 1400W (peak) power amplifiers and a unique coaxial speaker configuration. The Vortex series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets.

The all new VORTEX series feature set is considerable, with Bluetooth input with TWS, built in DSP control, Dual 35mm top hat sockets, triple input channels, multiple M10 flying points, up to 3 carry handles for portability and much more.

ROBUST
Full face front grille –
Moulded cabinet –

LIGHTWEIGHT
12A – 15.5kg –
10A – 12.5kg –

PORTABLE
Multiple handle positions –
12A – top and both sides –
10A – top and side –

POWERFUL
1400W 2-way amplification –
124-125dB SPL –

VERSATILE
Multiple M10 flying points –
Dual top hat sockets:
Straight (0 degree) –
Angled (10 degree) –
Floor monitor suitable –

BLUETOOTH PLAYBACK
with TWS facility

24 BIT DSP
3 Band EQ
Multiple operation modes
Limiter
Time delay

MULTIPLE INPUTS
2x mic / line
1x 3.5mm line
Bluetooth

LINK OUTPUT
Selectable between input A and full mix

• CABINET TYPE – 10″ 2-way coaxial active
• MAX SPL – 124dB
• AMP PEAK – 1400w
• MAX PGM – 700w
• AMP RMS – 350w (300+50)
• WEIGHT (NET) – 12.5kg
• FREQ RESPONSE – 55Hz-20kHz
• INPUT SENSITIVITY – 0dBu
• COVERAGE(h x v) – 80 x 80 degree
• LF DRIVER – 10″ / 50mm VC
• HF DRIVER – 34mm VC / 1″ throat
• CROSSOVER FREQUENCY – 2.2kHz
• 24bit DSP – Mode select, 3 band EQ, delay, volume
• DSP MODES – Music, live, dj, speech, monitor
• CONNECTION – 2x XLR/JACK input, 1x 3.5mm, XLR output
• CONNECTIVITY –  BLUETOOTH playback
• MOUNTING –  Dual top-hat, 5x M10 flying points
• DIMENSIONS (W/H/D) – 310 / 515 / 280mm

• CABINET TYPE – 12″ 2-way coaxial active

• MAX SPL – 125dB
• AMP PEAK – 1400w
• MAX PGM – 700w
• AMP RMS – 350w (300+50)
• WEIGHT (NET) – 15.5kg
• FREQ RESPONSE – 50Hz-20kHz
• INPUT SENSITIVITY – 0dBu
• COVERAGE(h x v) – 80 x 80 degree
• LF DRIVER – 12″ / 65mm VC
• HF DRIVER – 34mm VC / 1″ throat
• CROSSOVER FREQUENCY – 2.2kHz
• 24bit DSP – Mode select, 3 band EQ, delay, volume
• DSP MODES – Music, live, dj, speech, monitor
• CONNECTION – 2x XLR/JACK input, 1x 3.5mm, XLR output
• CONNECTIVITY –  BLUETOOTH playback
• MOUNTING –  Dual top-hat, 5x M10 flying points
• DIMENSIONS (W/H/D) – 360 / 585 / 310mm
