- High-fidelity plug-and-play wireless system for condenser microphones
- Provides 12V or 48V phantom power to any connected condenser microphone
- 24-bit / 48 kHz digital audio with low distortion and wide frequency response
- Stable 2.4 GHz wireless connection with a range of up to 90 feet.TECHNICAL SPECIFICATIONS

WIRELESS TYPE                                    2.4 GHz ISM worldwide open band
BIT DEPTH / SAMPLE RATE                  24-bit / 48 kHz
SWITCHABLE CHANNELS                      6
SIMULTANEOUS CHANNELS                6
MODE                                                  Phantom Power: 12V / 48V
FREQUENCY RESPONSE                       20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE                                103 dB (-3 dB)
MICROPHONE COMPATIBILITY            Condenser microphones
SIGNAL-TO-NOISE RATIO                     110 dB
TOTAL HARMONIC DISTORTION          0.2%
LATENCY                                              5 ms
OPERATING RANGE                              27.5 m / 90 ft (line-of-sight)
BATTERY LIFE                                       3-7 hrs
CHARGING TIME                                  2.5 hrs (full charge)
CHARGING VOLTAGE                           5V (USB)
USABLE WHILE CHARGING                  Yes

Transmitter
POWER                                                12V / 48V (onboard phantom)
MODE                                                  Phantom Power: 12V / 48V
CONNECTOR                                        XLR (female)
DIMENSIONS                                       31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
WEIGHT                                               107.73 g / 3.8 oz
MUTE                                                   Yes

Receiver
CONNECTOR                                        XLR (male)
DIMENSIONS                                       98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
WEIGHT                                               92 g / 3.2 oz

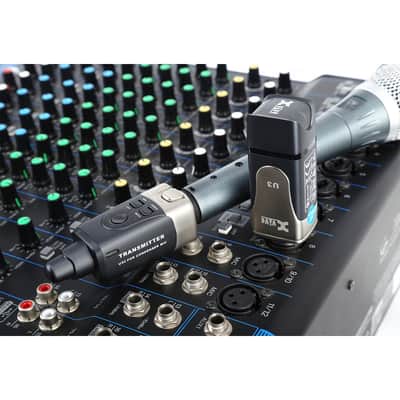

Xvive U3 Microphone Wireless System set-up guide for PA and DJ applications.
