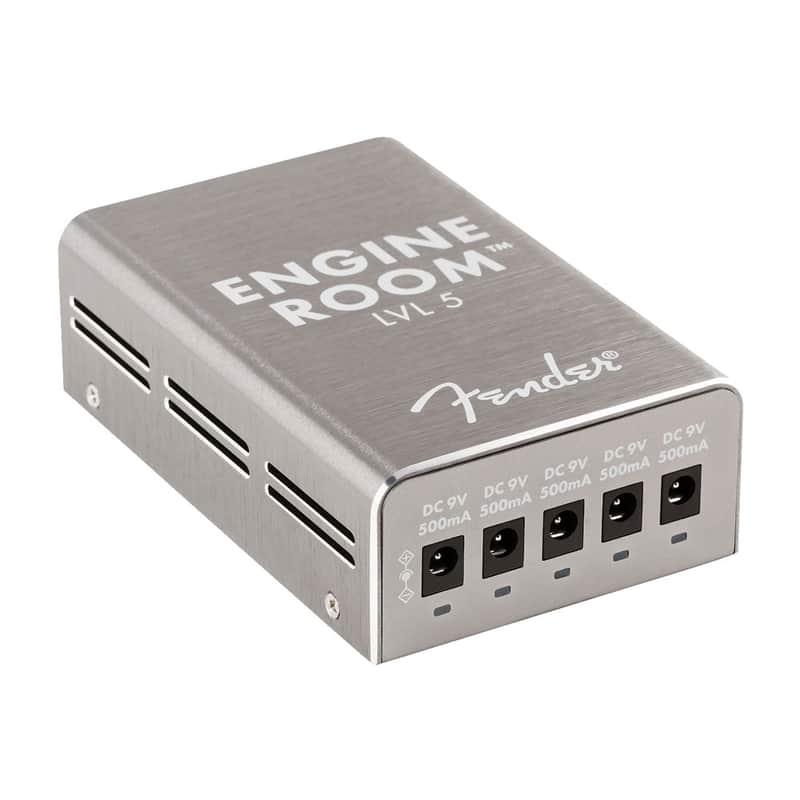

The Fender Engine Room LVL 5 Pedal Power Supply provides clean isolated power for up to five 9 V pedals at 500 mA each, easily taking care of even the hungriest modern delay and reverb pedals and comes with all required power cables.

The LVL 5 can be powered by the LVL 12 by daisy chaining the two together (extension lead provided with the LVL 12) allowing easy expansion of the system for even the biggest pedalboards. The Engine Room Power Supply is perfect for touring, it has an IEC socket capable of accepting 100-240 V, 50-60 Hz inlet voltage allowing it to be used anywhere in the world (this version comes with a UK 3 pin IEC power cable) and its chassis is crafted from durable and lightweight anodised aluminium with a sleek, low profile shape designed to fit under most pedalboards. The pedal output sockets are all centre negative and each feature a LED indicator that goes red if the power draw is too high.

A full breakdown of the included accessories is as follows:

• Two 60 cm (24") pedal power cables with 2.1 mm barrel connectors
• Four 45 cm (18") pedal power cables with 2.1 mm barrel connectors
• One 30 cm (12") pedal power cables with 2.1 mm barrel connectors
• One 45 cm (18") power cable with 2.5 mm to 2.1 mm barrel connectors (green plug)
• One 45 cm (18") power cable with 2.5 mm to 2.1 mm reverse polarity barrel connectors (red plug)
• One 45 cm (18") power cable with 3.5 mm TS mini jack to 2.1 mm barrel jack connectors
• One 45 cm (18") power cable with 9 V Battery clip to 2.1 mm barrel jack connectors
• One 2 m (6.6 ft) IEC power cable with UK plug

Features

• The Fender LVL 5 provides clean, ground isolated power for five 9 V pedals at a massive 500 mA each
• Create huge pedalboards by daisy chaining the LVL 5 to the LVL 12 for 17 possible outputs
• Capable of accepting 100-240 V, 50-60 Hz inlet voltage allowing it to be used anywhere in the world
• Touring ready chassis crafted from durable and lightweight anodised aluminium
• Sleek, low profile shape designed to fit under most pedalboards
• Pedal output sockets each feature a LED indicator that goes red if it is overloaded
• All pedal outputs centre negative
• 2 m (6.6 ft) IEC power cable with UK plug included
• 7 Pedal power cables included with standard 2.1 mm barrel connectors
• 4 Adapter cables included, 2.5 mm barrel, reverse polarity, 3.5 mm TS mini jack and 9V battery clip

Tech Specs

• Length: 131 mm (5.2")
• Width: 85 mm (3.4")
• Height: 42 mm (1.65")
• Manufacturer Part Number: 0230104005
• UPC-A: 885978685394
