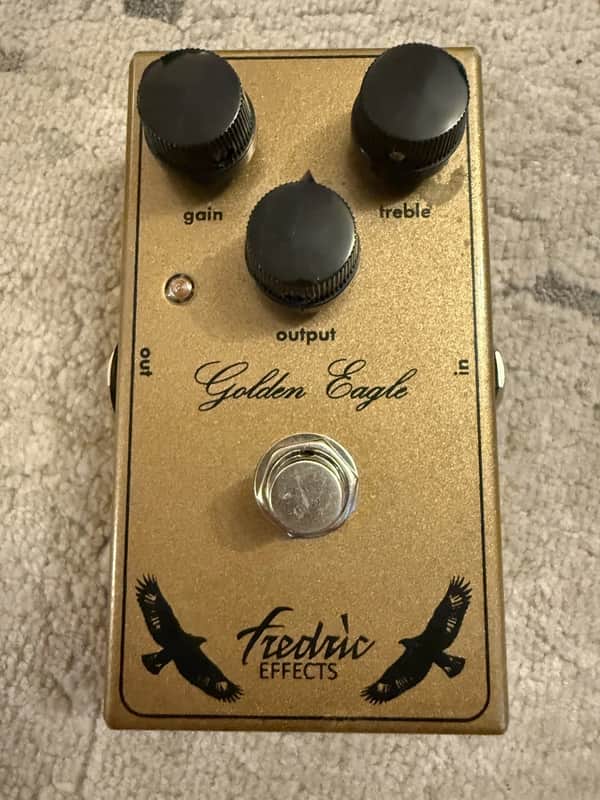

The **Fredric Effects Golden Eagle** is a boutique, compact overdrive pedal hand-built in London, UK. It is widely recognized as a faithful, electronically accurate replica of the legendary and rare **Klon Centaur** overdrive.

Technical Specifications

Transparent Overdrive / Clean Boost ("Klon")

100% accurate clone of the original circuit; retains the original **charge pump** voltage-doubling circuitry and original-style **buffered bypass**

Gain: Adjusts the amount of overdrive/compression blended into your signal

Volume (Level): Controls the overall output master volume

Tone: Active treble filter (clockwise cuts highs/lets more bass pass through relative to the filter curve).

Compact die-cast aluminium housing with a professional gold metallic powder-coat finish and screen-printed artwork.

Dimensions: Approx. 60 mm (W) x 110 mm (L) (Compact MXR-style footprint)

Power Requirements| Standard 9V DC 18.5mA power supply (negative center, 2.1mm barrel). NOT INCLUDED

Note: Due to internal charge-pump circuitry stepping up voltage, it runs internally at a higher voltage for increased headroom.

Buffered Bypass (faithful to the original Klon design) |

High-grade custom PCB construction (no perf or vero board)

Alpha pots and robust Alpha footswitch for longevity<br>

Quality enclosed panel-mount jacks (Cliff/equivalent quality)

Hand-assembled individually or in small batches in London, United Kingdom.

Unlike many scaled-down Klon clones that drop the charge-pump stage or alter the buffer, the Golden Eagle preserves the exact electronic topology of the original circuit. This ensures the signature mid-hump characteristics, touch-sensitivity, and signal-boosting behavior behave identically to a vintage Centaur while fitting comfortably on a modern pedalboard.

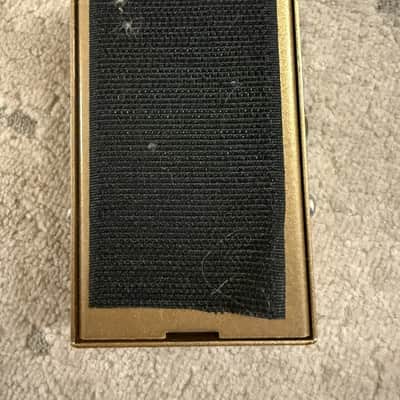

Small mark on top right and velcro on the bottom (Visible in the pictures)
